Searching for HG04-2003

A quick learner says:
June 7, 2020

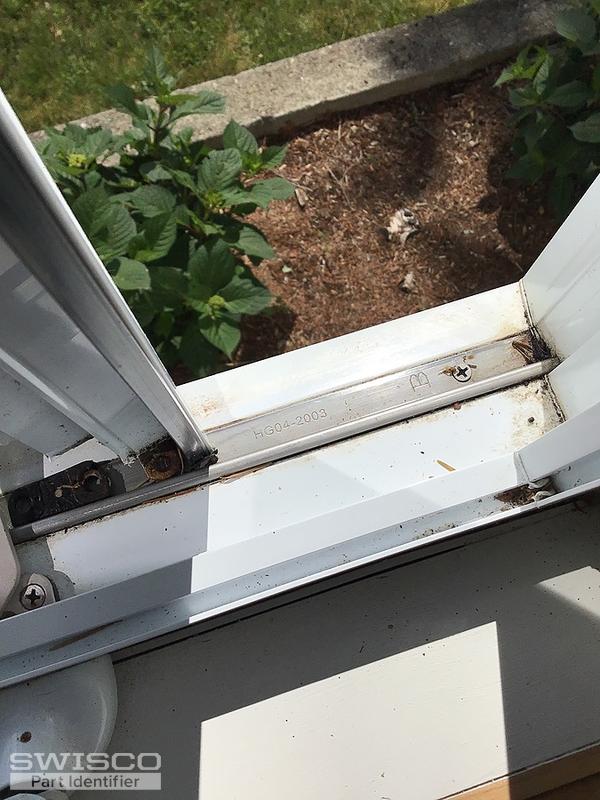

Hi, I?m looking for replacement hardware for Roto casement windows. The number I found on the piece is HG04-2003. I didn?t see any of your replacement parts that match the dimensions in the drawings. Hope you can help.
Thanks,
Ken

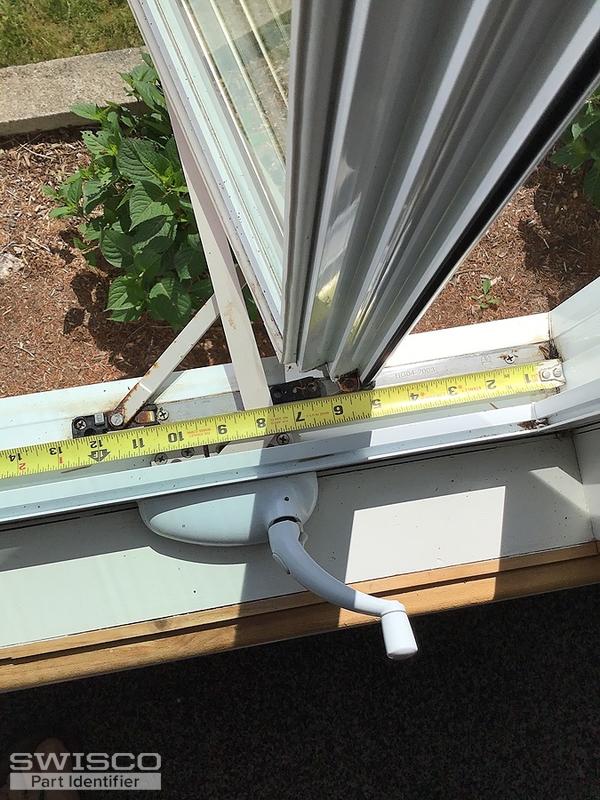

Thumbnail of the uploaded file named 54E25F3B-9D19-4797-A264-A3931A5A85B5.jpeg

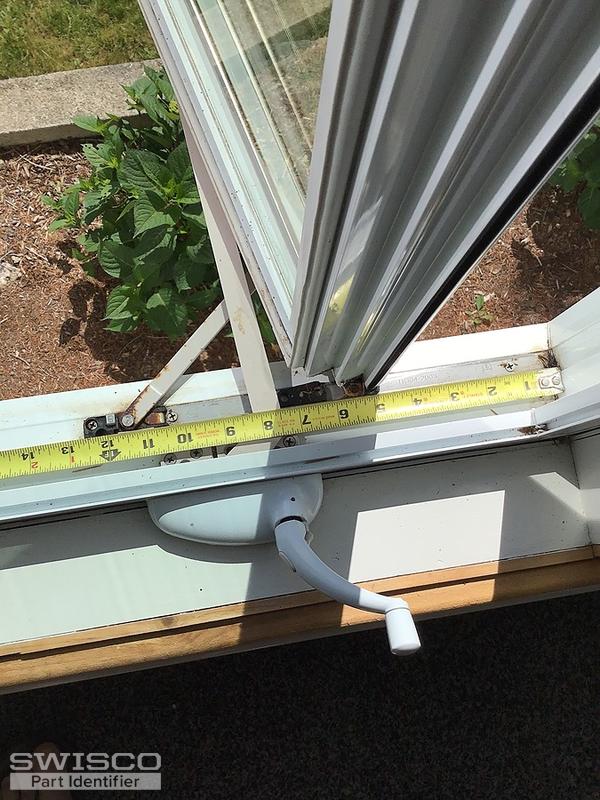

Thumbnail of the uploaded file named 08EFD541-4AA9-4892-8377-E84CF8B2C410.jpeg
Thumbnail of the uploaded file named C1ACDBA4-8D47-4660-937F-646EC63F70B6.jpeg
Profile picture of Casey
Casey from SWISCO responded:
June 10, 2020

Hello,

It seems like you're just looking to replace the hinge. If that is the case, see our 10" 36-048 hinge set. This should still work for you but the sash may not open quite as far as it does now. If you need to replace the operator as well, please show us the end of the arm uninstalled from the sash so that we can compare it to our inventory. Thank you!
2-Bar Hinge Set, 10"
2-Bar Hinge Set, 10"
36-048
$17.47
2-Bar Hinge Set, 14"
2-Bar Hinge Set, 14"
36-049
$20.52
Roto Single Arm Operator, 7-1/2"
Roto Single Arm Operator, 7-1/2"
39-434
$21.70
Sliding Screen Pull Latch Assembly, 3"
Sliding Screen Pull Latch Assembly, 3"
84-227
$6.95
