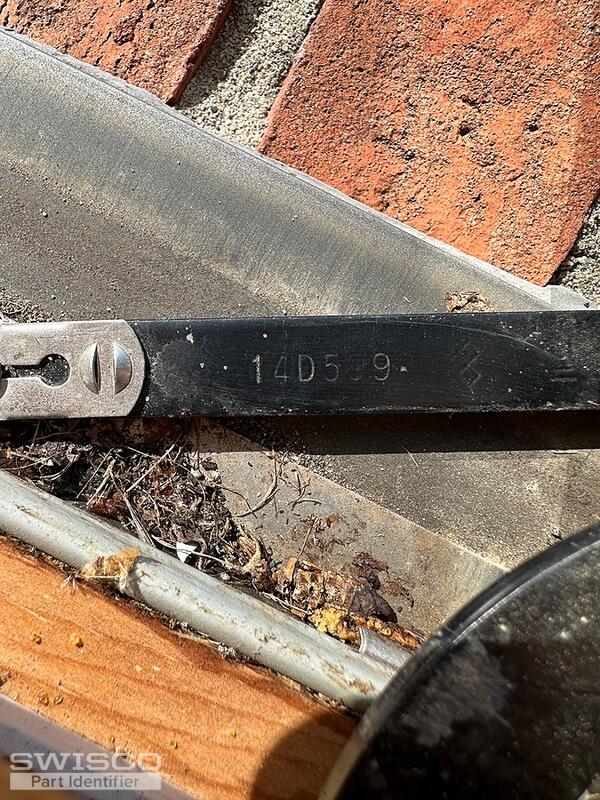

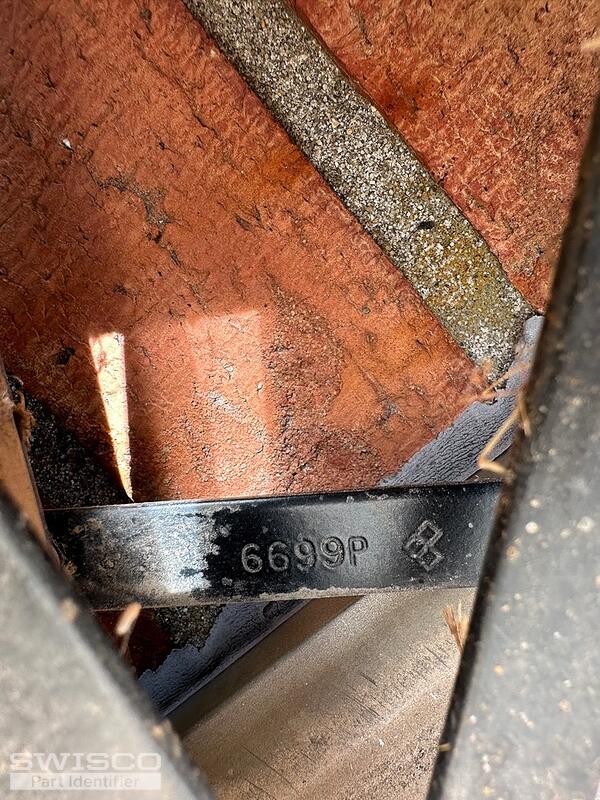

I am looking for Hurd window arm operator replacements. I have attached some pictures of one. On the one you can make out most of what I am hoping is a part number. Needing to know what part number I need to order as well as how much it would cost. Looking to replace 4 Right (when looking at it from the outside looking in) and 2 left.
Thank you for your help.
Amy
Thanks for reaching out! Your casement operator looks a lot like our 39-253RB and the 39-253LB. Carefully review and compare the dimensions to your existing operator to confirm that this is the replacement you'll need. You may need to remove the part from the window to confirm. The dimensions below are from part 39-253RB.
The compatible handles sets are parts 39-375 and 39-376, which are folding handles and covers as well as parts 39-451 and 39-452, which are non-folding.
I've linked a few other pieces of hardware such as the track slider, the track, the brackets and one compatible screw that you could possibly use in the installation.
Let me know if you have any questions.
