Kinro 53x29 single hung tilt out window take out clips

Hello,

Spiral balances like the assembly like yours do not use take-out clips but your photos do show the pivot shoe that the spiral attaches to, along with the pivot bar that inserts in the shoe cam. You can start by taking a look at the S600 and S900 spiral balances depending on if your housing tube measures 5/8" or 3/8" in diameter.

As for the pivot shoe, we'll need to see yours uninstalled and have you write out the exact width and thickness to compare to our selection. If you need the pivot bar as well, we would also need to see that part removed from the sash. See the videos related on this page to help you through the process. Thank you!

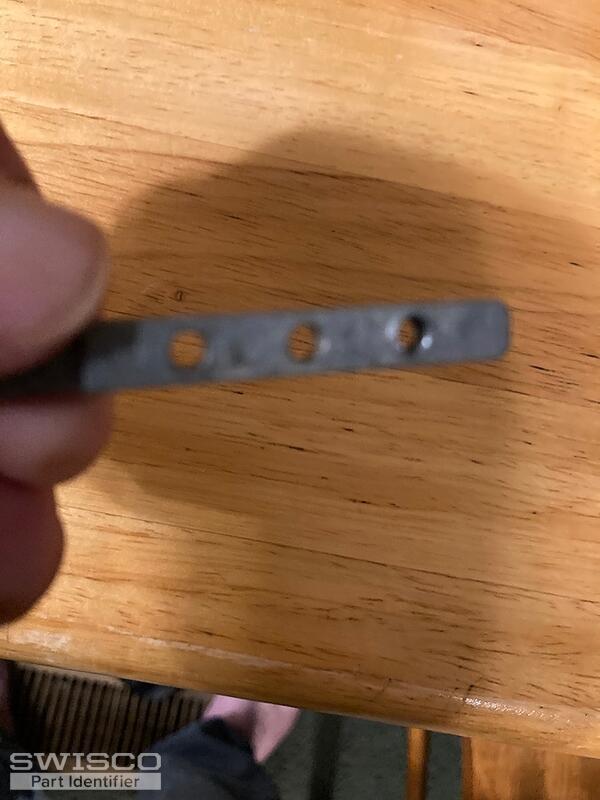

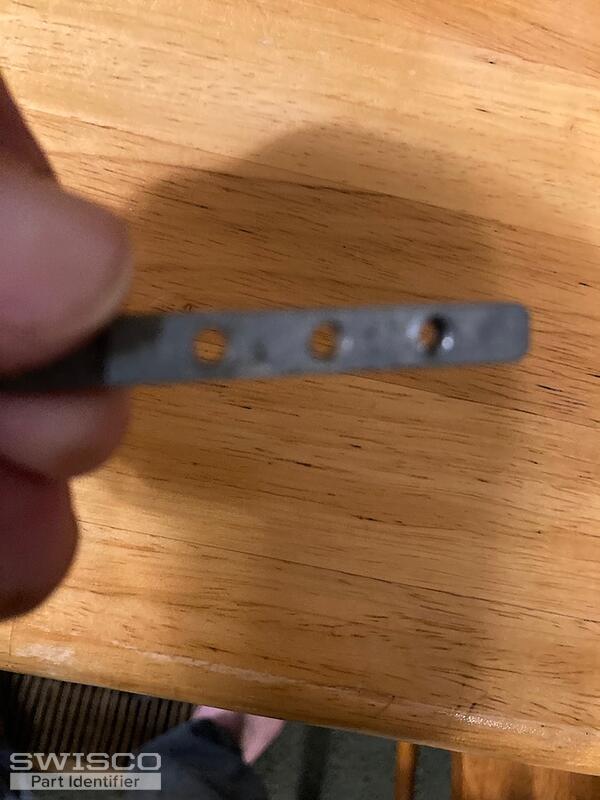

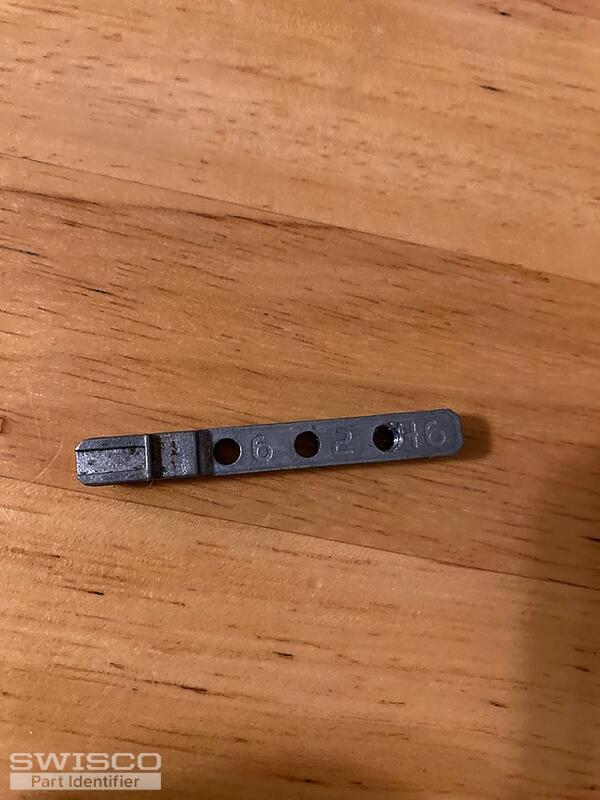

Thanks for getting back to us. Take a look at another customer's thread here where we recommended the 26-327 for a similar pivot bar to yours also stamped with 6246. Review the dimensions below to confirm if this could work for you as well.

Alternate image for 26-327
