Searching for L LEMCO CROFT METAL PRODUCT

A quick learner says:
June 6, 2021
Hello

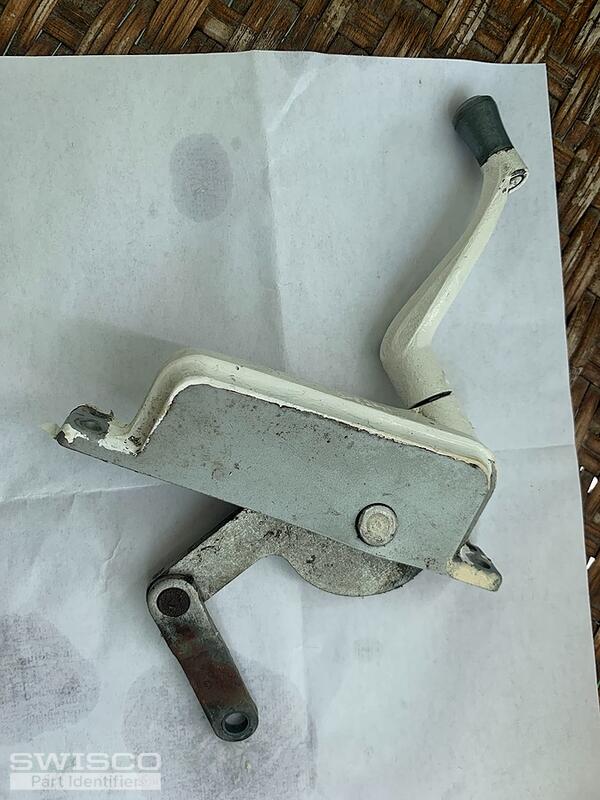

In dire need of a replacement crank operator.
Picures attached but in case you cannot see, the words written on the shaft is
L
LEMCO

CROFT
METAL
PRODUCT

MCCOMB
MISS

PATENT NO [***I cannot read all of the numbers***]
28306??
2852??
64???
Thumbnail of the uploaded file named IMG_2280.jpg
Thumbnail of the uploaded file named IMG-2276.jpg
Thumbnail of the uploaded file named IMG-2277.jpg
Thumbnail of the uploaded file named IMG-2278.jpg
Profile picture of Emily
Emily from SWISCO responded:
June 10, 2021

Hi there!

I don't recognize this operator at first glance but I'm going to have one of our senior experts take a look and see if they could recommend a replacement for you. We'll reach out as soon as more information is available.

Thanks so much!
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:
June 11, 2021

Your LEMCO operator is no longer available. Take a look at our 39-256B Look-Rusco operator, this looks like it has the same mounting hole locations as yours. However, you might need to drill out the end hole in the link arm to a 3/8" hole to attach it to your linkage in the window.

As for the other two operators, they do have the 3/8" hole you need, but you will have to drill new bottom mounting holes.
LH Look-Rusco Window Crank
LH Look-Rusco Window Crank
39-256B
$19.83
Lenahan Window Crank
Lenahan Window Crank
39-075
$20.45
LH Awning Operator, 3/8" Hole
LH Awning Operator, 3/8" Hole
39-279
$21.70
#10 x 1/2" Pan Head Phillips Screw
#10 x 1/2" Pan Head Phillips Screw
33-081
$0.18
Shoulder Bolt Washer
Shoulder Bolt Washer
33-206
$0.19
