Searching for L901WC

A quick learner says:

May 6, 2022

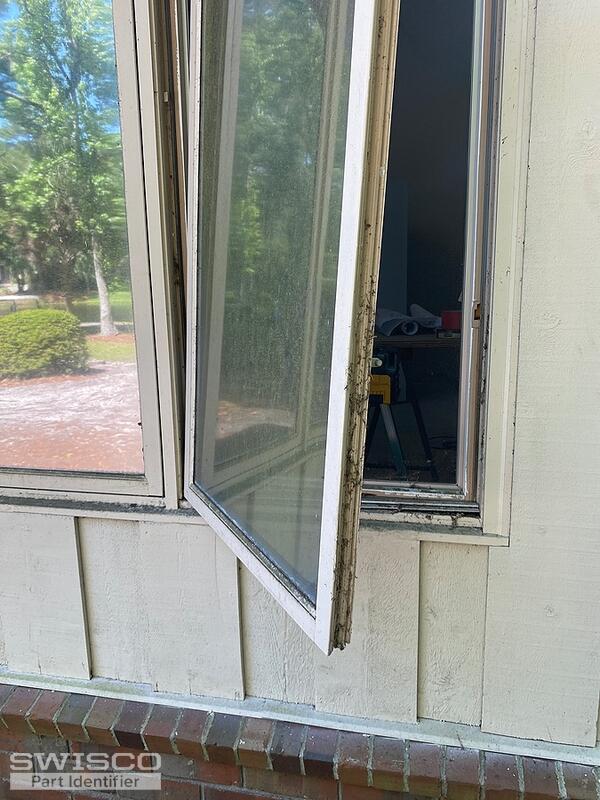

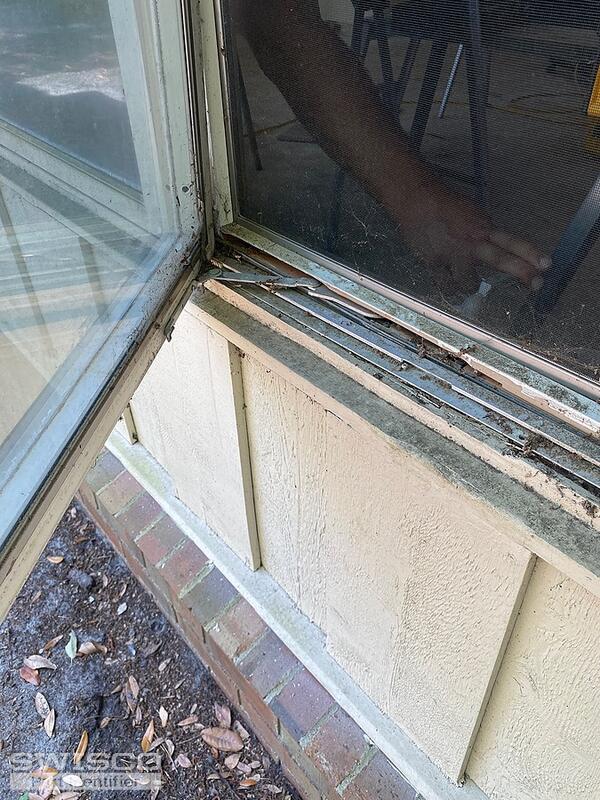

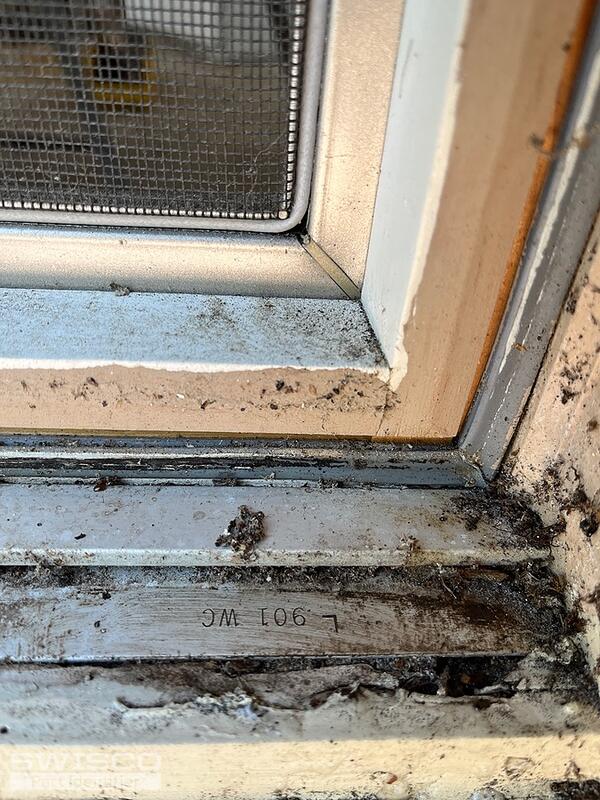

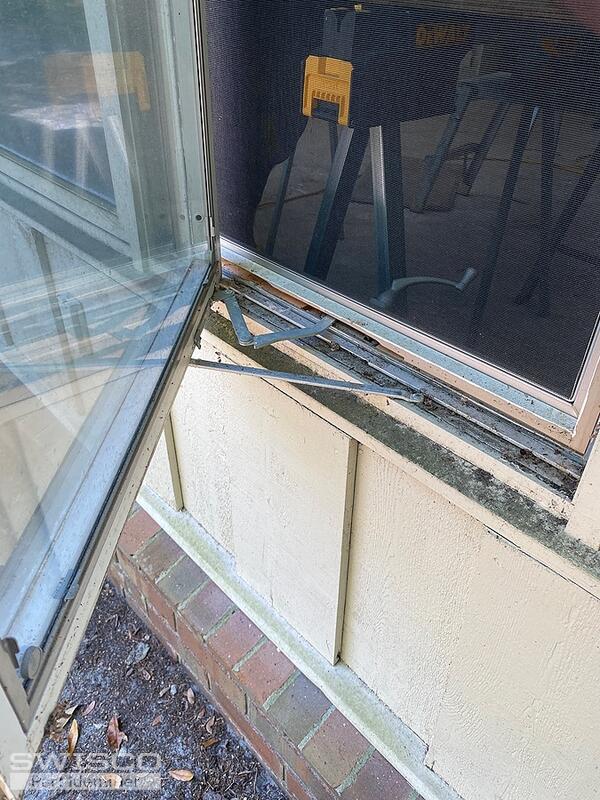

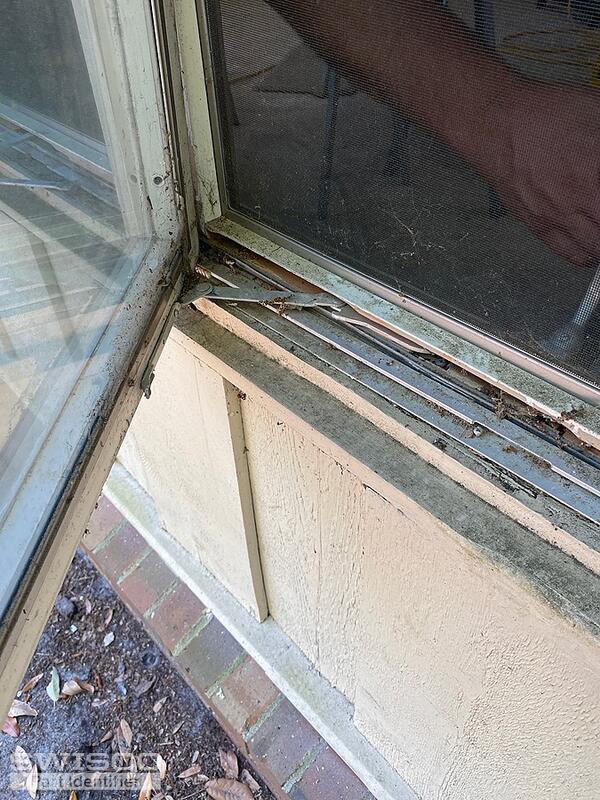

We have Pelli casement windows in a house we just purchased. The window is fine but the hinge is missing an are so it doesn't swing properly. The serial number acoustic g to spells is L 901 WC. Do you have a replacement?

Thumbnail of the uploaded file named D14F3A30-4783-4F04-90B6-DC1290E021B9.jpeg

Thumbnail of the uploaded file named D7D5058E-3A92-42FB-BD84-527DD5824B1C.jpeg

Thumbnail of the uploaded file named 8E6BE7CE-9F82-4ECE-8F5B-E6AF333806CF.jpeg

Thumbnail of the uploaded file named B5DE4A11-9048-4D1B-9E74-A20A07F8FCD6.jpeg

Thumbnail of the uploaded file named 02EDA1C3-9315-4377-BC78-FBE34199765B.jpeg

Casey from SWISCO responded:

May 9, 2022

Hello,

I'd recommend comparing the specifications of an intact hinge to the options we've related for you to determine how the dimensions shown on our product pages compare to your Pella assembly. Thanks for posting!

A quick learner says:

May 9, 2022

I am a first timer to fixing these windows. Should I measure a certain part of the window? I will be back to the house late Tuesday and get get all the dimensions.

Casey from SWISCO responded:

May 9, 2022

There are diagrams on each of the product pages for the parts that we've related for you that show the relevant dimensions for these Pella hinges to compare to yours. I will add an example below.

You'll also need to confirm that the hinges are a visual match to our photos.

Dimensions for 39-394

LH 9-5/8" Hinge Arm Assembly, Pella

39-351

$85.25

RH 9-5/8" Hinge Arm Assembly, Pella

39-352

$85.25

Pella Pivot Plate Hinge Shoe

39-363

$6.65

Pella Hinge Shoe Pair

39-371

$35.57

LH 10" Hinge Arm Assembly, Pella

39-394

$46.47

RH 10" Hinge Arm Assembly, Pella

39-395

$46.47

LH 12-1/8" Hinge Arm Assembly, Pella

39-396

$85.25

RH 12-1/8" Hinge Arm Assembly, Pella

39-397

$85.25
