Milgard Channel Balance 22 5 BX CMC 11

A quick learner says:
II measures about 23 in long i need two. The end of one picture is broken. I need
Thumbnail of the uploaded file named 20220808_092407.jpg
Thumbnail of the uploaded file named 20220808_092256.jpg
Thumbnail of the uploaded file named 20220808_092301.jpg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

With this combination of attachments, you could have either an S380-23 or S385-23 channel balance. You’ll need to remove another balance with an undamaged bottom fitting to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 2250 spring strength options for your replacement balances.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A quick learner says:
Hi I forgot i need replacement sash cam. I look at ALL on site but can't find one I need milgrid window. I just placed an order for window balance series 385 set to see if works before I order more spares but also need this size cam next order

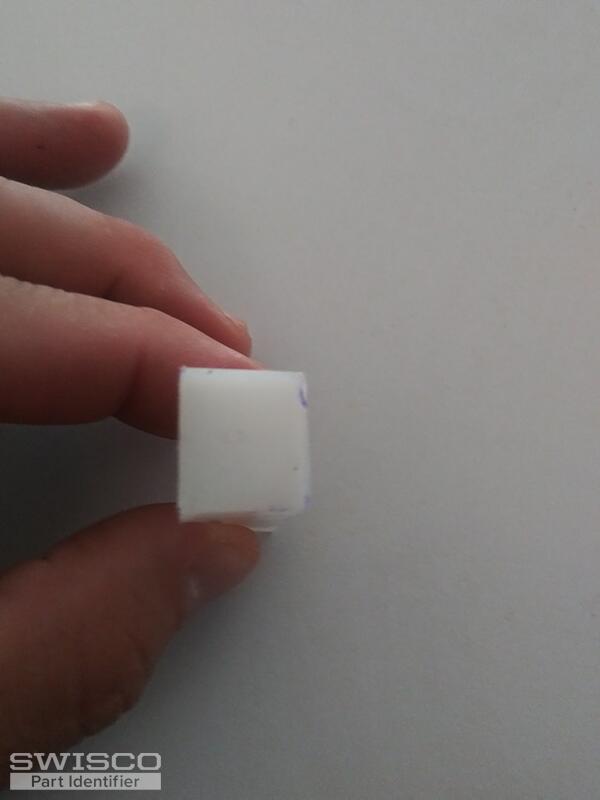

Thumbnail of the uploaded file named 20220811_182655.jpg

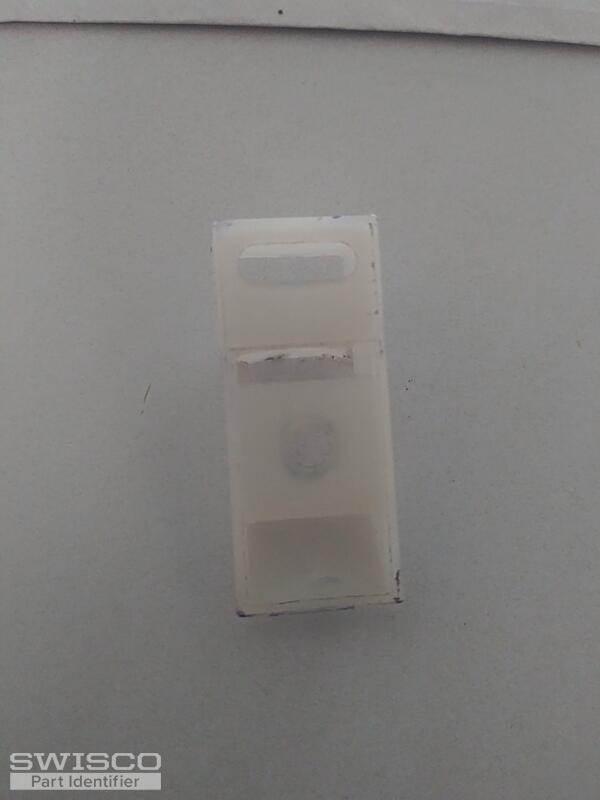

Thumbnail of the uploaded file named 20220811_182734.jpg

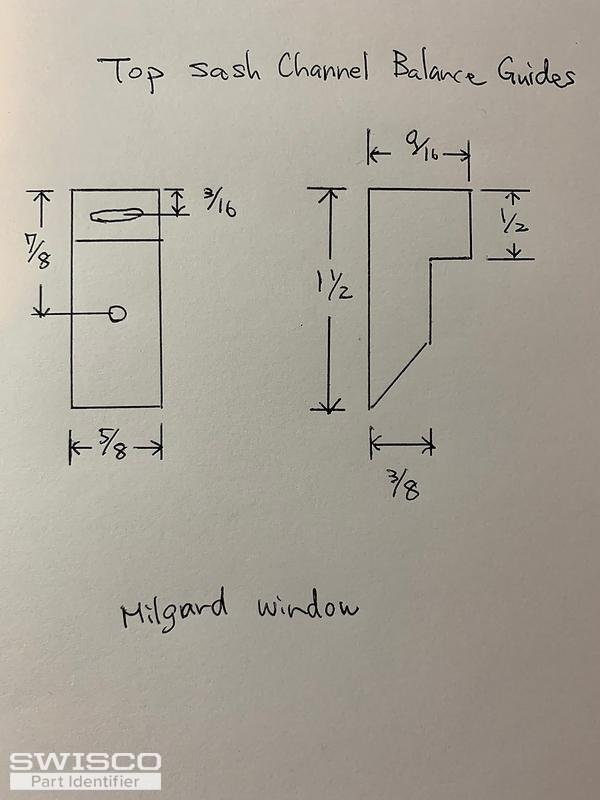

Thumbnail of the uploaded file named image000000.jpg

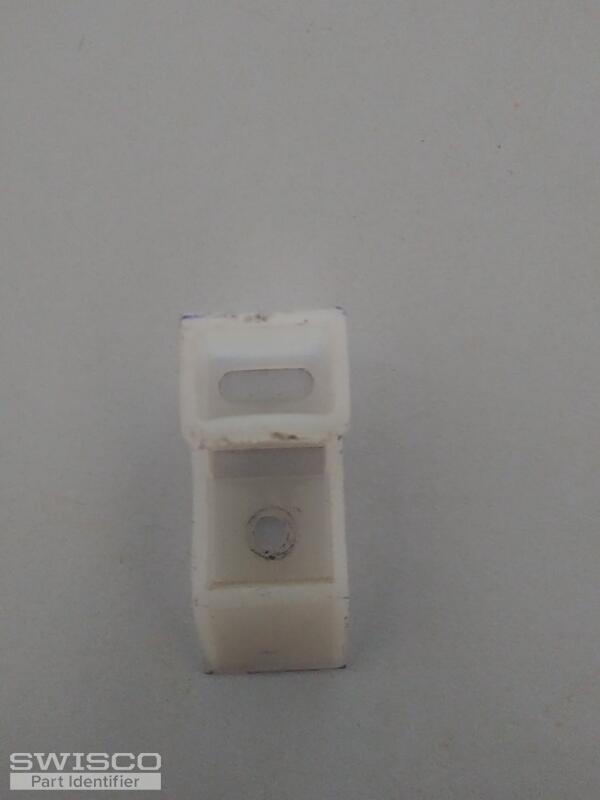

Thumbnail of the uploaded file named 20220811_182555.jpg
Thumbnail of the uploaded file named 20220811_182616.jpg
Profile picture of Casey
Casey from SWISCO responded:

Customers with Milgard windows have used the 18-188 top sash guide as a replacement. The dimensions are close to what you have listed but take a look and see exactly how we measure the part as shown on our product page. Let us know how it works for you.
