Searching for Milguard 29 5 eu cmc 2 window ballance

A quick learner says:
Looking for milguard balance
Pic is of numbers on part and numbers on window.
Thumbnail of the uploaded file named D2DBB81C-41EE-4C9E-AF9E-912AEC1D22B6.jpeg
Thumbnail of the uploaded file named 9C7C4574-A93B-4783-9110-DF4CEA45B476.jpeg
Profile picture of Emily
Emily from SWISCO responded:

Hello!

We'd be happy to help but we'll need you to remove an undamaged balance with the end attachments intact to compare to our inventory. Take a look at the video below, it'll go over exactly what we'll need to see.

A quick learner from Ventura ca. says:
Total metal length =29"
Total hight =5/8"
Total weight =5/8"

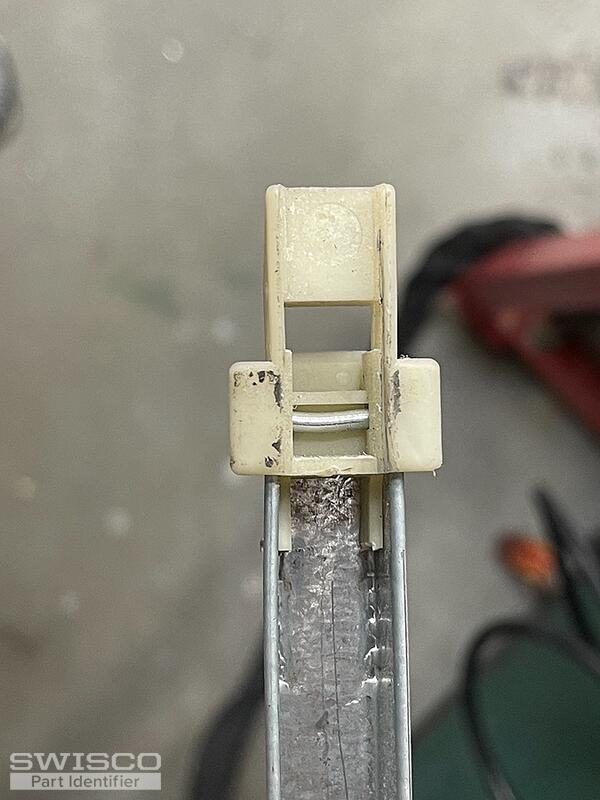

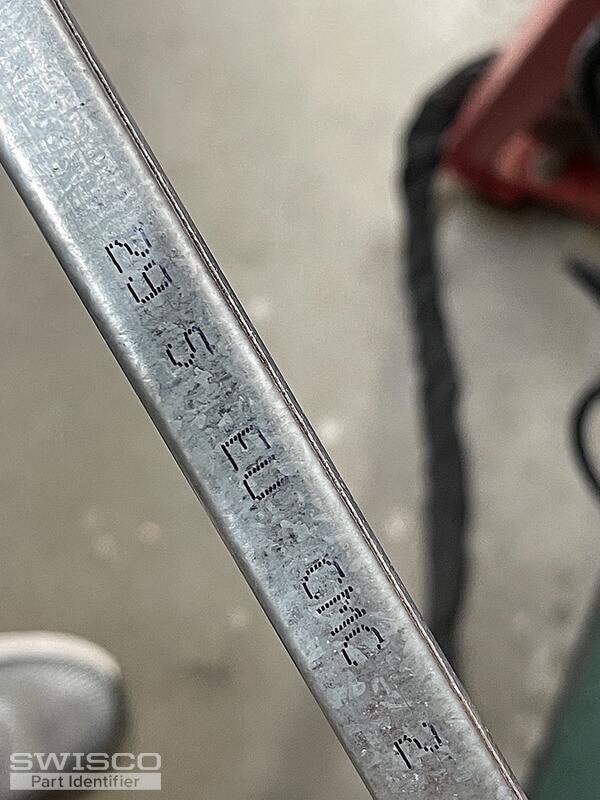

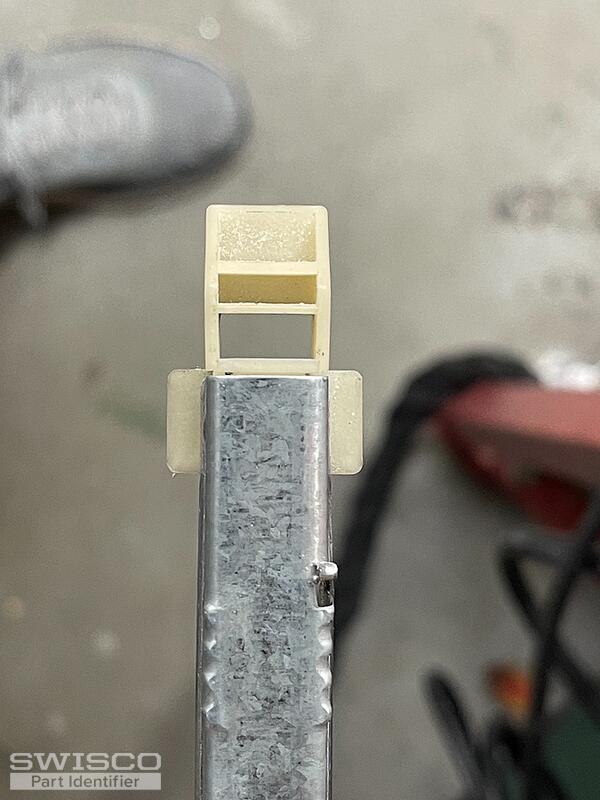

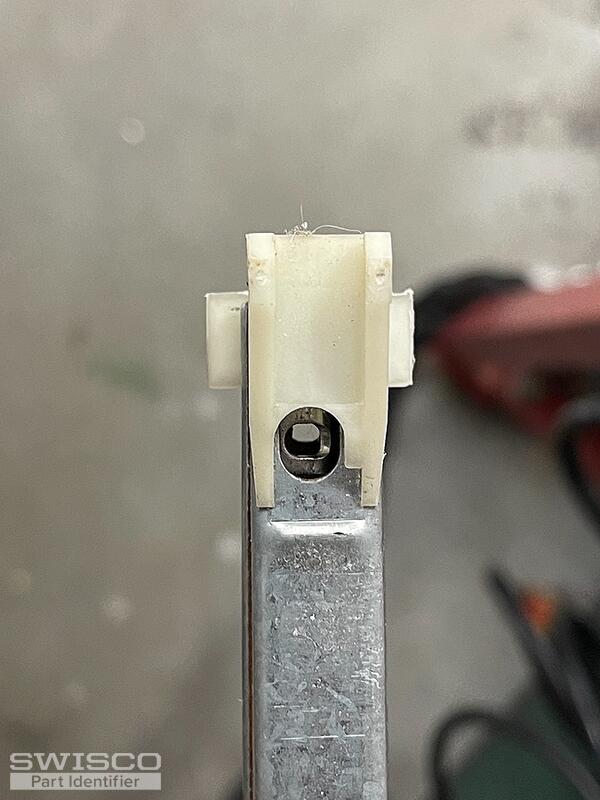

Thumbnail of the uploaded file named 6BE08B54-D710-4606-AE8E-1F028EAA5633.jpeg
Thumbnail of the uploaded file named BE35E515-8D94-43A2-BA76-5B436745C361.jpeg
Thumbnail of the uploaded file named 2B524431-5665-4BE3-AC62-709E94F3293A.jpeg
Thumbnail of the uploaded file named 1EAD9346-1063-4996-AAA3-AC3A361AD6D0.jpeg
Thumbnail of the uploaded file named 9F951FAA-C1EE-47A0-9B0D-3B78EF2596AB.jpeg
Profile picture of Emily
Emily from SWISCO responded:

Thank you for the additional pictures!

With this combination of attachments, you could have either an S380-30 or S385-30 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a spring strength option of 2950.

When measuring your balance, make sure to include only the metal channel in your measurement. Your stamp is 2950 which means your metal channel length should be 30".

If you have any further questions just let us know.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
A quick learner from Ventura ca. says:
Hi, measured it reads 1.093 (1 3/32 ) .
So 385-30 50 . I need two units.

How do we doo this now?

Larry
Profile picture of Emily
Emily from SWISCO responded:

You can place an order for the S385 on our website at your convenience. We really appreciate your business!
