Searching for P5LOWI36

A quick learner says:
Looking for 2 sets of replacement handles for the attached Simonton patio doors. would need handles/locks/internal mechanics the whole package let me know if you can help?


Thank you

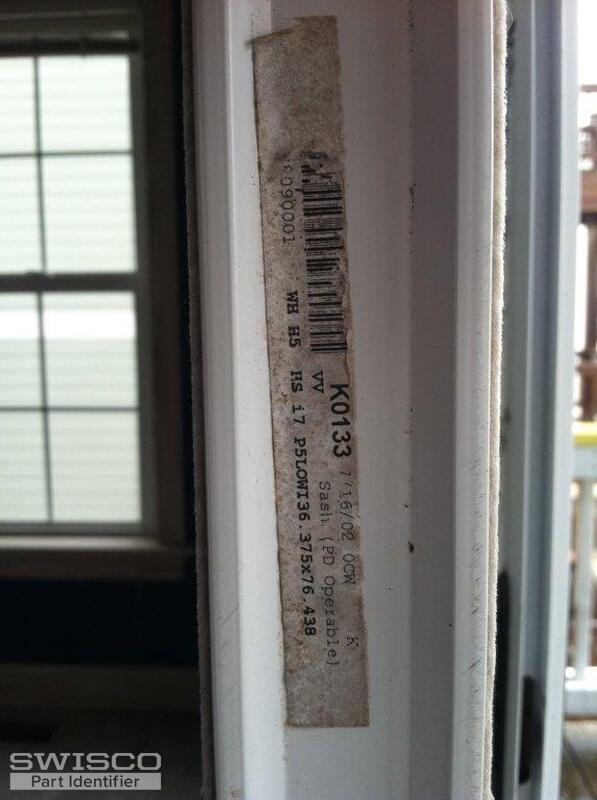

Thumbnail of the uploaded file named IMG_1253.jpg
Thumbnail of the uploaded file named IMG_1253.jpg
Profile picture of Bob
Bob from SWISCO responded:

Hey there!

Unfortunately, I am unable to identify your hardware based on the sticker, brand, or the manufacturer information provided. It would be best to see a photo of your original hardware to make an accurate recommendation.

This is just an educated guess based on past inquiries, however, please take a look at part 82-086. You'll need to carefully review the measurement for the distance between the installations holes, from center to center. See below:

Dimensions for 82-086
Dimensions for 82-086

Let me know if you have any questions.

A quick learner from Pa says:
THANKS FOR THE REPLY.

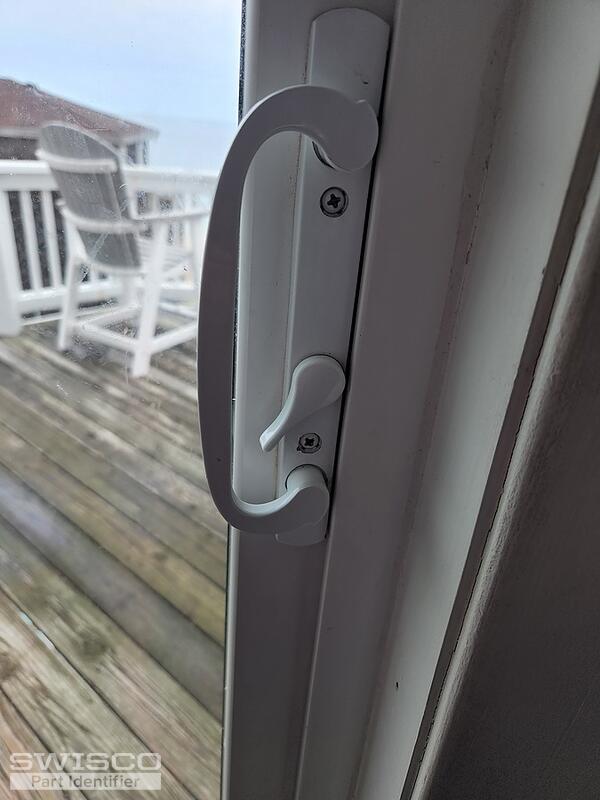

the attached picture is the best i have. Unfortunately the door is in NC and i am in PA was hoping to get replacements for when i travel back down in February.

let me know if this helps?

Thank you
Thumbnail of the uploaded file named 20220812_181720.jpg
Profile picture of Bob
Bob from SWISCO responded:

My pleasure!

I think it's pretty safe to say that the 82-086 is the correct replacement.

A quick learner from Pa says:
Great thanks id like to order 2 sets we will need the correct mortise locks for those as well do you have the correct item # for those and do i just order through the website or do you take care of that for me?

Thank you

Profile picture of Jasmine
Jasmine from SWISCO responded:

You will need to place the order through the website or by giving a call to our customer service department at (888) 991-1929.

Unfortunately, because there are a few different mortise locks compatible with your handle set, I'd need to see a photo or, at the very least, have the measurement for the distance between the installation holes.

A quick learner from Pa says:
ok thanks for the reply luckily i caught one of the neighbors he got me the attached pics and measurements let me know if this is helpful.

Thank you!
Profile picture of Jasmine
Jasmine from SWISCO responded:

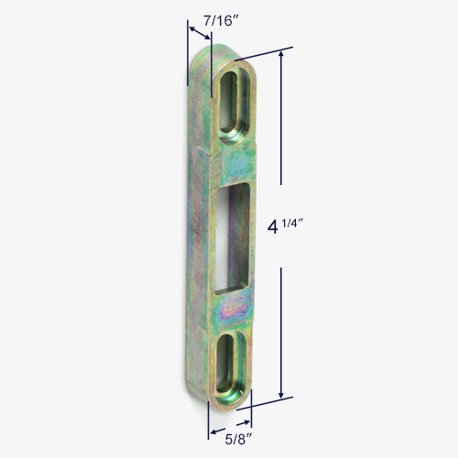

Your mortise lock appears to be our part 82-226. There are few keepers compatible with this lock, however, I believe the one you'll need is part 89-021D. Take a look at these parts and let me know if you have any questions.

Alternate image for 82-226
Alternate image for 82-226

Alternate image for 89-021D
Alternate image for 89-021D
