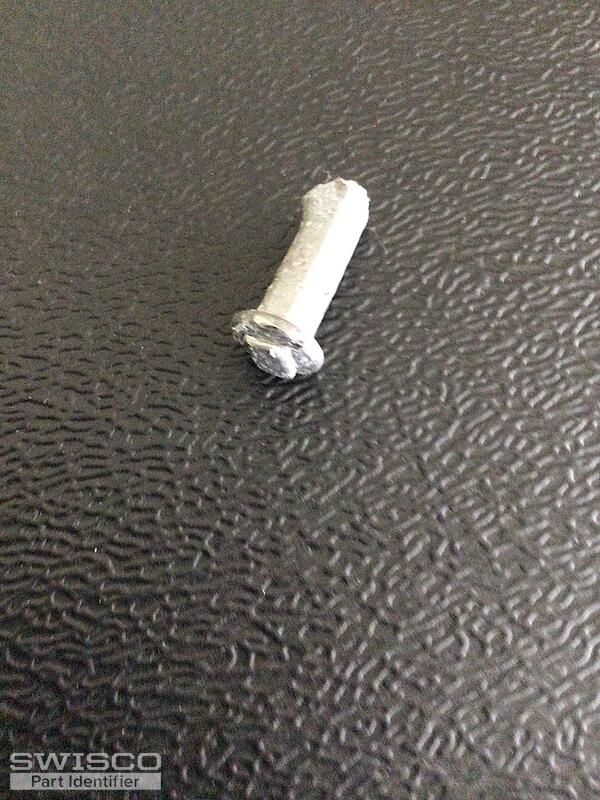

Piece under window panel that slips into groove of pivot shoe is broken

1 user uploaded image

4 Replies

Tom from SWISCO

Jun 7, 2023 11:01 am

I'm afraid I'm not familiar with this piece. Is there more to it, or is this all there is? If there is more, can I see the whole thing? I'd also like to see it installed, if at all possible.

Quick Learner

Jun 7, 2023 11:54 am

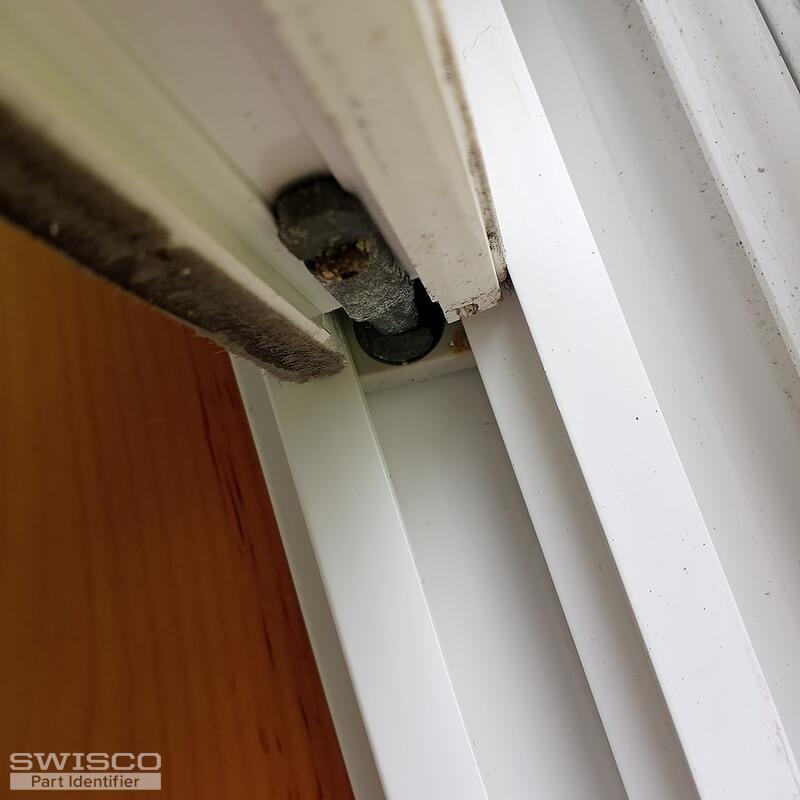

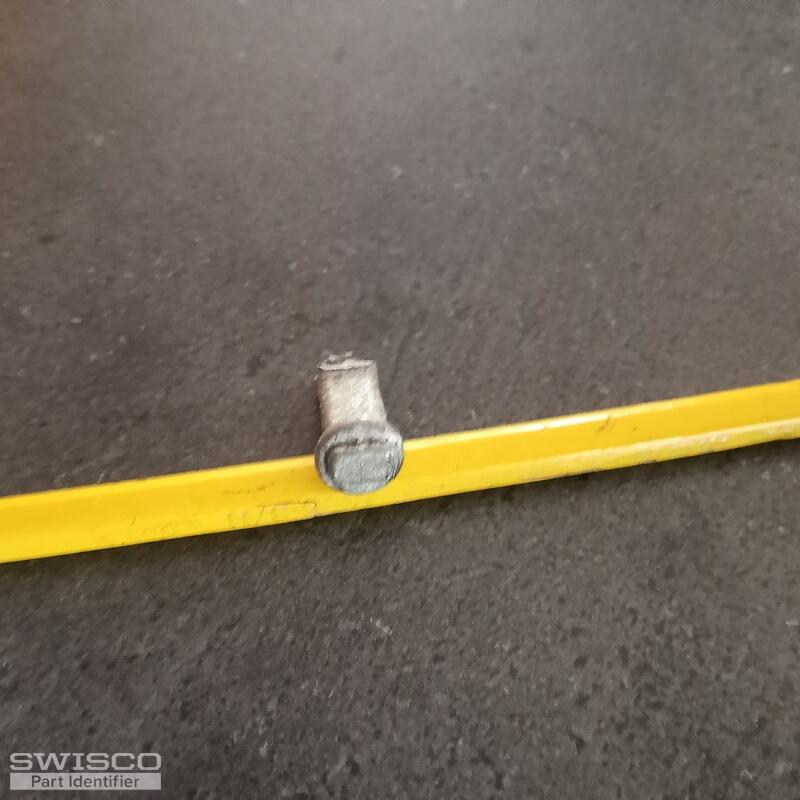

Piece against pencil is the broken off piece that inserts into the pivot shoe but is broken from assembly shown in second pic,which is found srewed under pane

2 user uploaded images

Tom from SWISCO

Jun 7, 2023 2:58 pm

Thank you. I see now, this is a type of pivot bar. I'm afraid I still can't ID it accurately without seeing the whole thing in undamaged condition, but my best guess is the 26-423. Look this part over and see what you think.

Alternate image for 26-423
