Searching for Truth R308

Quick Learner

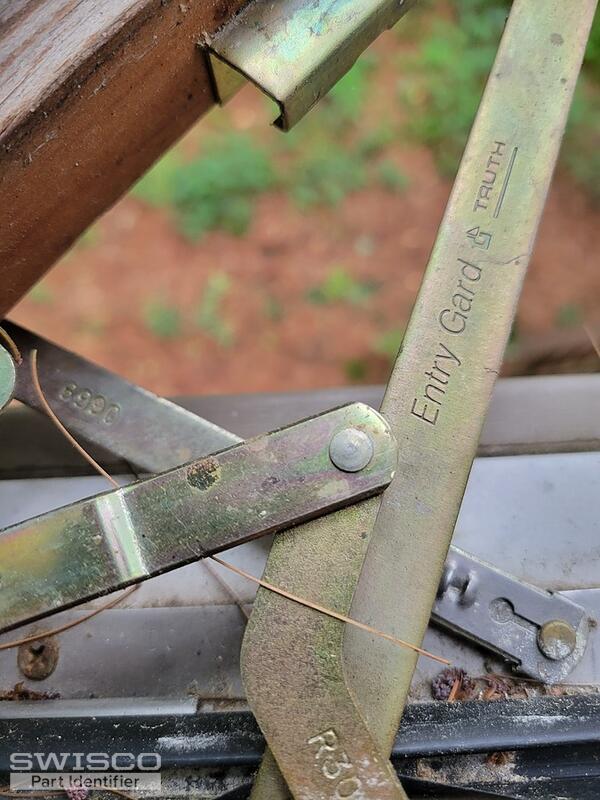

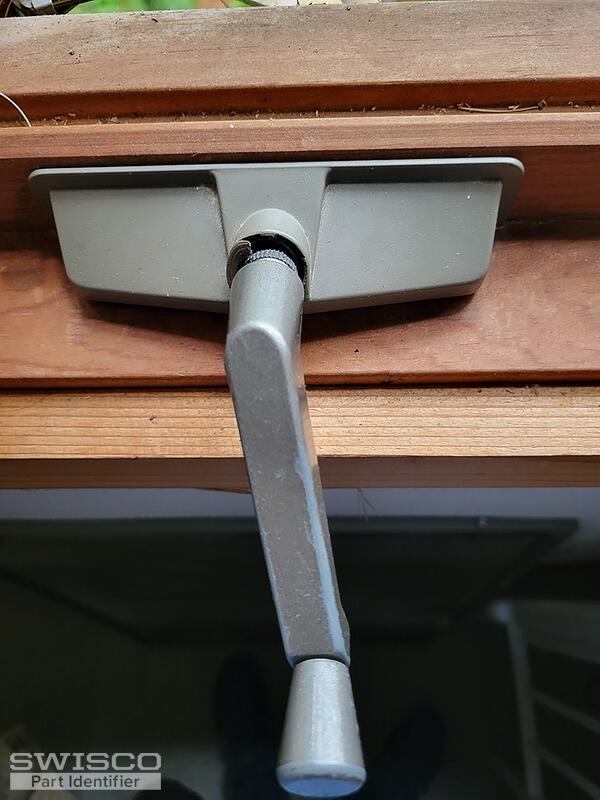

I need a Truth R 308 plus crank and cover
2 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

Hello,

Thanks for reaching out! Your operator resembles our 39-032 Truth Dual-Arm Operator (the opposite handed version is part 39-031 ). Compare the dimensions from your existing operator to those shown on the diagram below.

Dimensions for 39-032
Dimensions for 39-032

These operators are compatible with the 39-107 cover along with the 39-114 non-folding handle, like the one you have. There is also the more updated version of the non-folding handle, part 39-114L or the folding crank handle, part 39-205 . The last option is the 39-107FK , which is a folding crank and handle kit.
