The gear and shaft for the window is broke off from the rest of the assembly. We also need the latch for the window. It is a left side latch on the window and the crank is to the right side of the bottom of the window unit. The windows are from the mid 90"s.

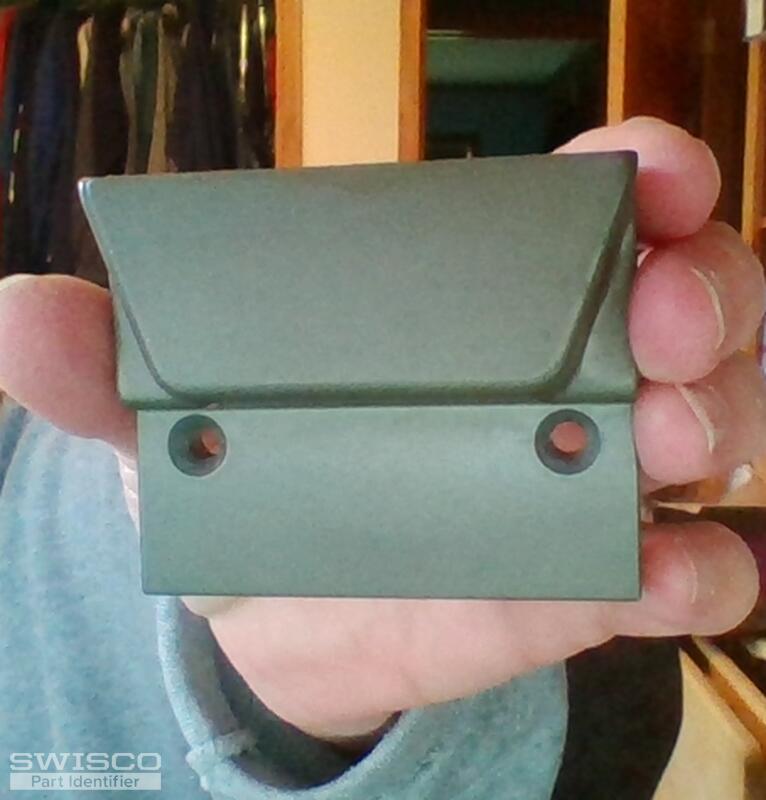

Part number on the latch assembly is 31300C.
Searching for Vetter casement window part number 31300C
Quick Learner
Nov 9, 2023 11:51 am
4 user uploaded images
4 Replies
Lauren from SWISCO
Nov 10, 2023 10:13 am
Hello, thank you for posting,
It appears that the spline has been stripped from the operator base which will require replacing the full crank mechanism. To further review, we will need to see the operator with clear images of the arm attachment(s).
For the lock, please start by reviewing the 38-075. Compare the overall style and dimensions to your original to confirm a good fit!
Quick Learner
Nov 12, 2023 11:58 am

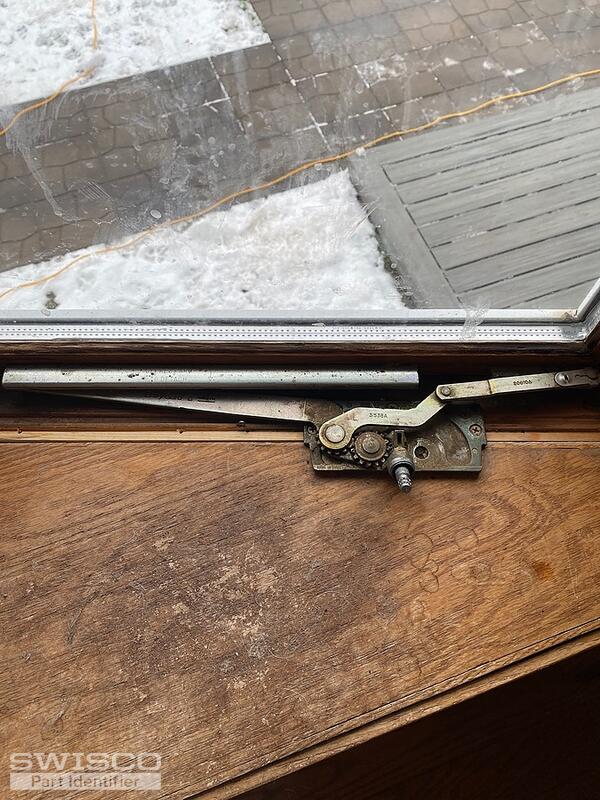

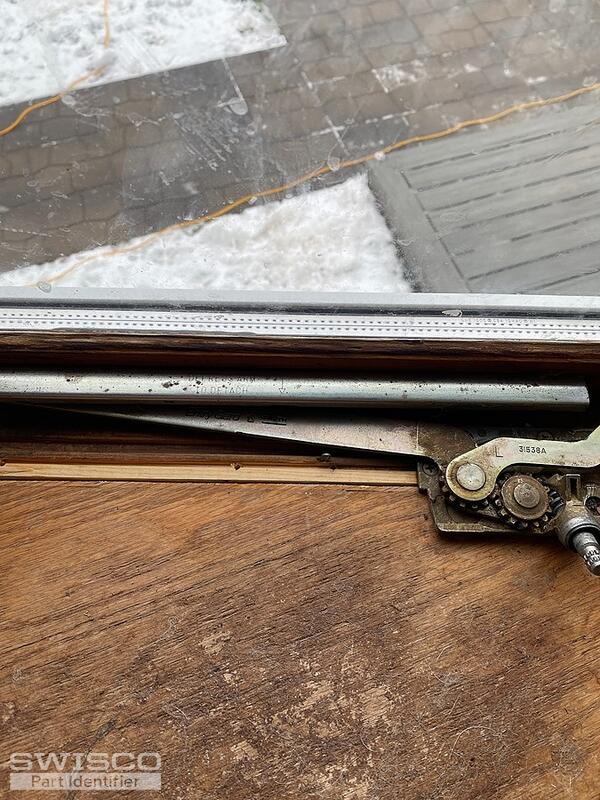

Depress arm is 11 3/8"

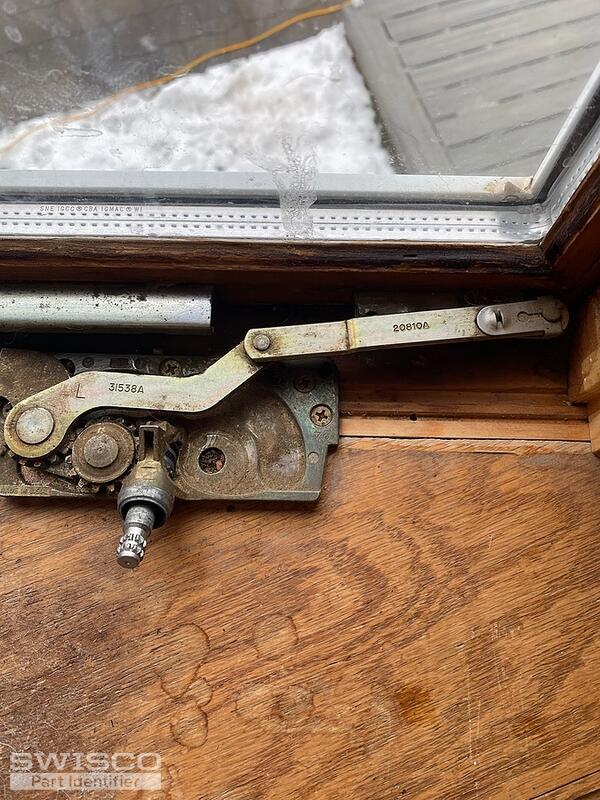

Swing arm part numbers are:
L 31538A and 20810A
16 1/4" of total swing arm when window is closed
Swing arm part numbers are:
L 31538A and 20810A
16 1/4" of total swing arm when window is closed
3 user uploaded images
