Searching for anderson window 1251106

Quick Learner

Jan 28, 2019 12:55 pm

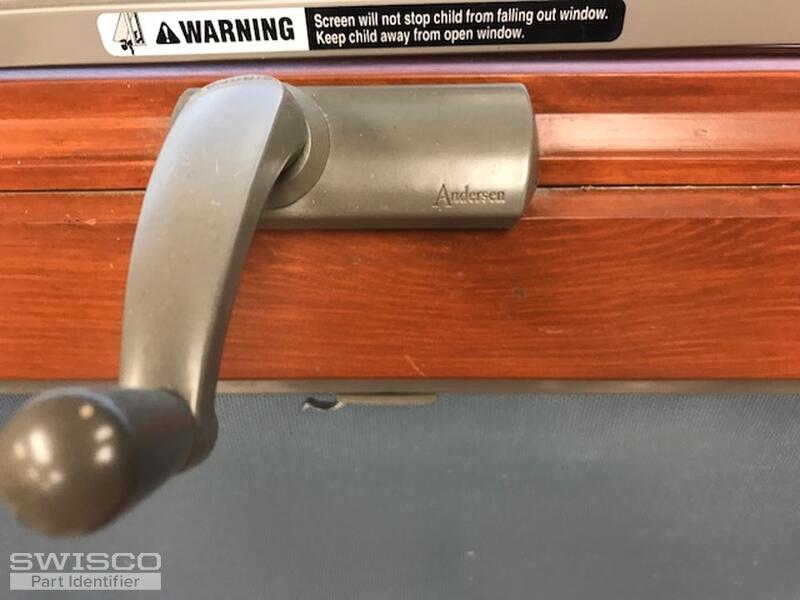

looking for window cranking mechanism for anderson AW4 awning window. the number stamped on back of existing crank is 1521106. thx. it's for the bottom window.

2 user uploaded images

4 Replies

Bob from SWISCO

Jan 28, 2019 3:54 pm

Thanks for posting. I'm afraid the number printed back on the operator does not narrow down the part you need. I see your window has two operators. Could you remove the bottom operator you need to replace entirely from the window and give us a bird's eye view of it in a photo, including its link arm(s)? If you need to replace the top operator as well, is it different from the bottom? If so, could you also show us a picture of it? This would help us narrow down what you need. Thanks!

Quick Learner from 11691

Feb 3, 2019 10:45 pm

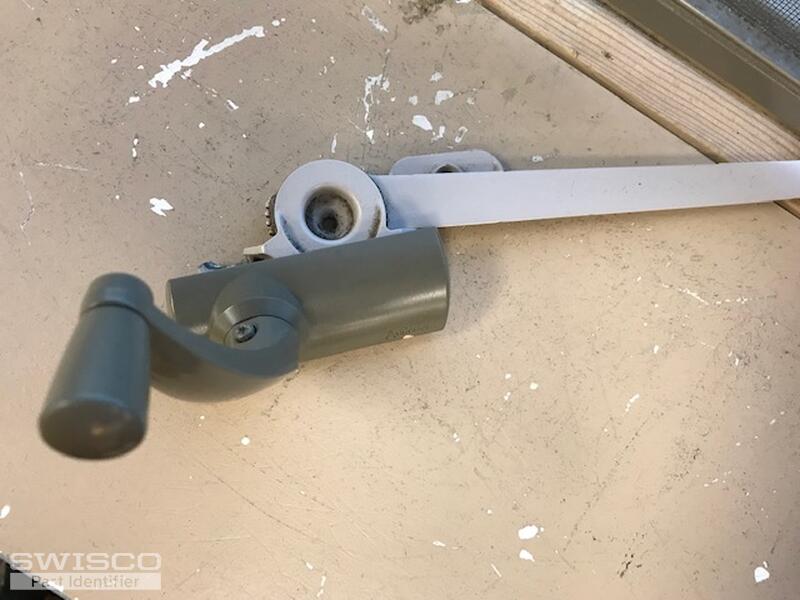

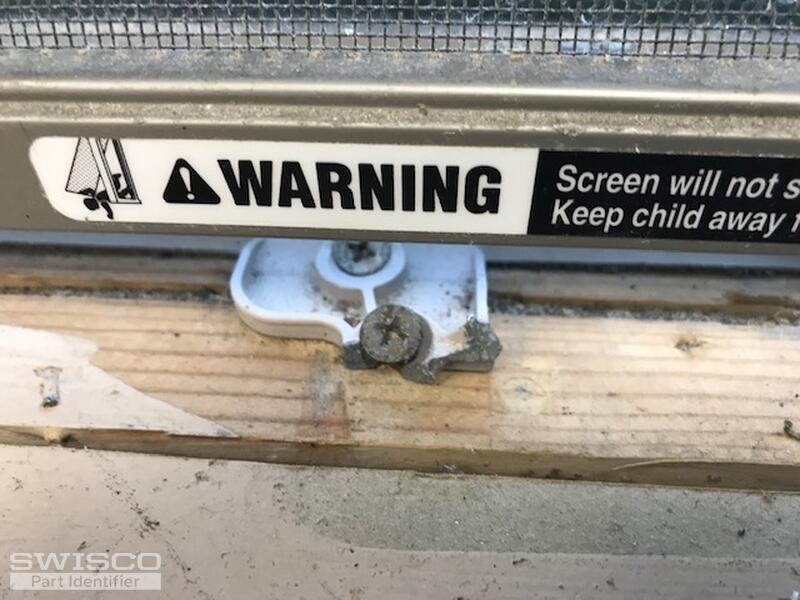

attached are pictures of both upper and lower operators. i look forward to hearing back if this helps you to identify parts needed, and price. i will be sending one for picture in another email of another part needed.

thx

dave

5 user uploaded images

Tom from SWISCO

Feb 4, 2019 10:36 am

Thank you! This looks similar to our 39-332. Look it over and see if this would be a good match, especially the arm length. For the opposite side, see our 39-331.

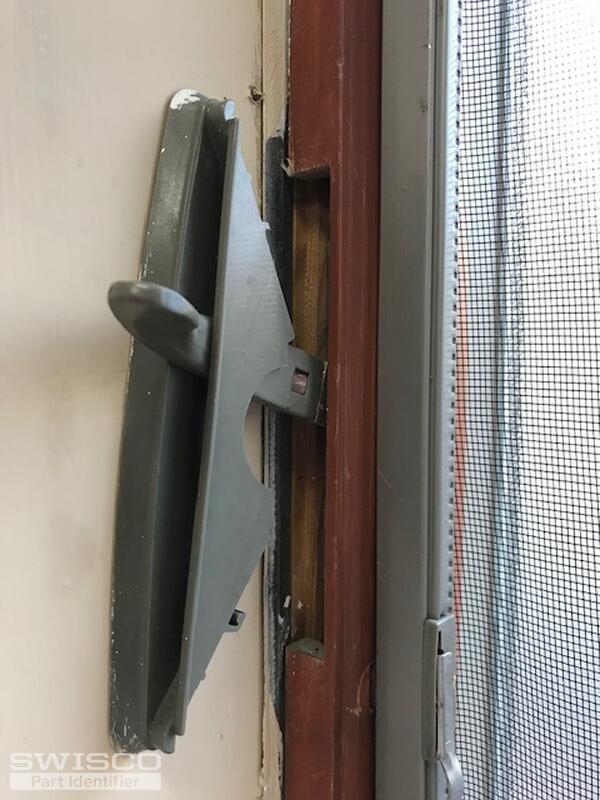

Concerning that lock, see our 39-290 bezel and 39-291 handle. I think you'll find these match well.
