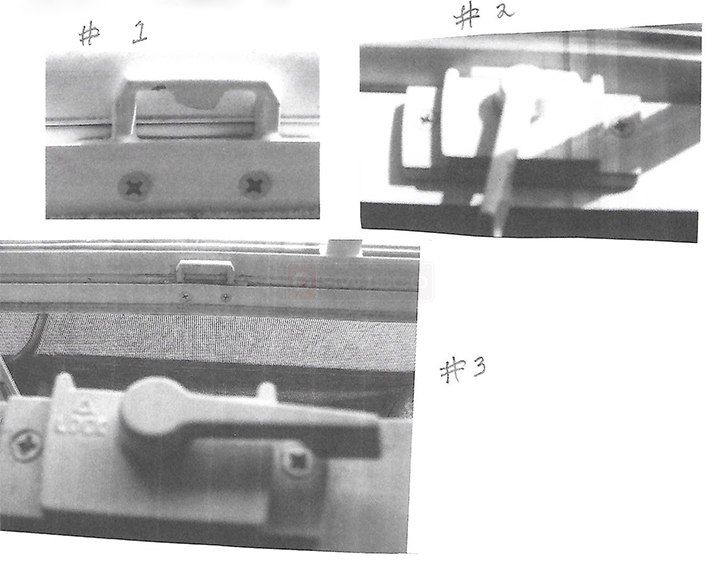

The attached photo is if #1 keeper, (code 40638). #2) latch and keeper1/2 locked. #3 latch itself showing the inside area where the keeper rests and the keeper in the area above the sash.
This is from a discontinued Anderson Swing Line series. I received a replacement keeper, code
90-237 that is the correct thickness to rest in the area above the sash and comes close to being accurate except for the outer width of the keeper that is 1 5/8's. the original keeper (40638) is 1 3/8's outer width and 1' interior width. This allows it to fit inside the latch area that is 1 7/16's wide. See photo #2 & 3. I need a keeper that fits the dimension of 40638. Please let me know if you need any additional information. Thanks for your assistance with this issue.
Gene
|
Bob from SWISCO responded:
May 8, 2019
Hi Gene. The only thing that really matters with the Face Mount Keeper is the hole spacing, or the distance between the center of each mounting hole. If that matches the 1" as shown on the 90-237 product page, this should work for you. Additionally, the 90-237 is compatible with our 90-077A Sash Lock, which I suspect is interchangeable with your current sash lock. Take a look and see what you think. |
90-237 is too wide to rest inside of the latch that extends over the sash. As shown in figure 2, the keeper rests inside the latch left and right sides with an opening of 1 3/8s"
on the outside and 1" on the inside. 90-237 is 1 5/8" wide that results in it being too far from the latch to enable the latch to connect with the keepers tongue to complete the locking process. Do you have a keeper that is 1 3/8" wide" with the matching holes and thin like the 90-237 piece? If not, do you have a latch that will fit 90-237 and is close in size to the one shown in photo 3? Thanks for your assistance, it is greatly appreciated.
Gene
|
Tom from SWISCO responded:
May 10, 2019
I'm afraid we couldn't find an alternate version of the 90-237. If the main issue is that it won't fit in the prongs of your old lock, you could potentially use a lock that doesn't have any prongs. The 90-161 has a 2-1/16" hole center spacing and a 7/16" hole center offset. It also doesn't have any prongs so it won't interfere with the width of the 90-237. If your hole spacing doesn't match that of the 90-161, let me know what you need and we can try to find it. Keep in mind that there probably isn't one lock that was made to go with the 90-237. This is a generic part meant to work in a wide variety of windows. |
|
|
Tom from SWISCO responded:
May 13, 2019
Unfortunately, we have not been able to find an alternate version of the 90-237. It's possible your exact type isn't made anymore; it happens all the time in this industry. I am sorry that we cannot offer a closer match. |
