Searching for hanger bracket for roll out cabinet shelf

A quick learner says:
July 15, 2022

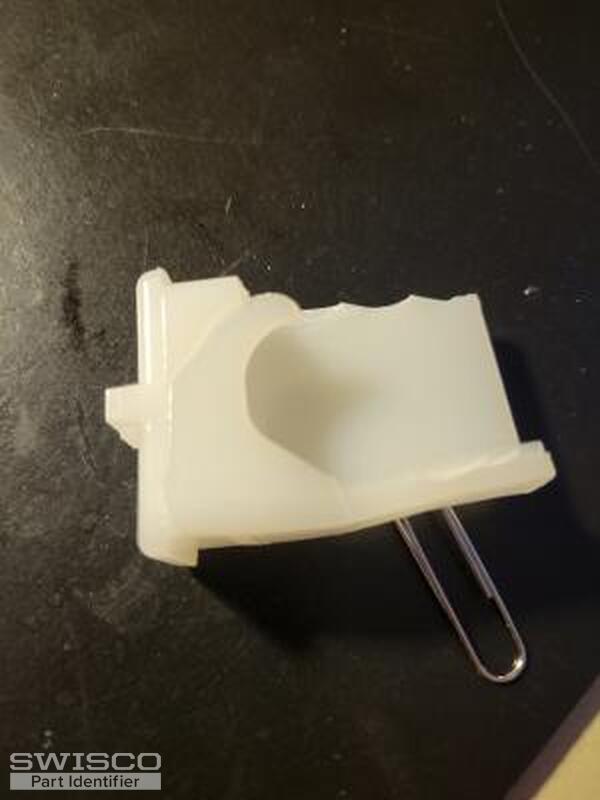

I have Merillat cabinets installed in 1992. The roll-out shelf guides have what appears to be a 2 piece bracket connection on the rear wall of the cabinet. The piece that has broken is labeled left or right (see photo). If this part is available, I would require 4 pairs. If they are not available, will your grass bracket 32-119 or 32012 fit the roller wheel? Also, are these parts the same depth as the orig. bracket assembly? Thanks, Dan
Thumbnail of the uploaded file named cabinetthumbnail.jpg
Profile picture of Tom
Tom from SWISCO responded:
July 21, 2022

Hello, Dan. Your old Merillat socket hasn't been made for a long time. The good news is that both the 32-012 and 32-119 work perfectly fine as replacements. These are our go-to suggestions for this part and so far have never run into any issues.

The only catch is that these don't plug to the back wall of the cabinet, but screw on instead. That means you will need to drill new holes.
Rear Drawer Track Socket Pair
Rear Drawer Track Socket Pair
32-012
$3.95
Grass Adapter Bracket Pair
Grass Adapter Bracket Pair
32-119
$3.97
SWISCO Grass Adapter Drawer Bracket
SWISCO Grass Adapter Drawer Bracket
VIDEO
WATCH >
