Interlock 12c-is23 hx replacement operator

A quick learner says:
February 21, 2022

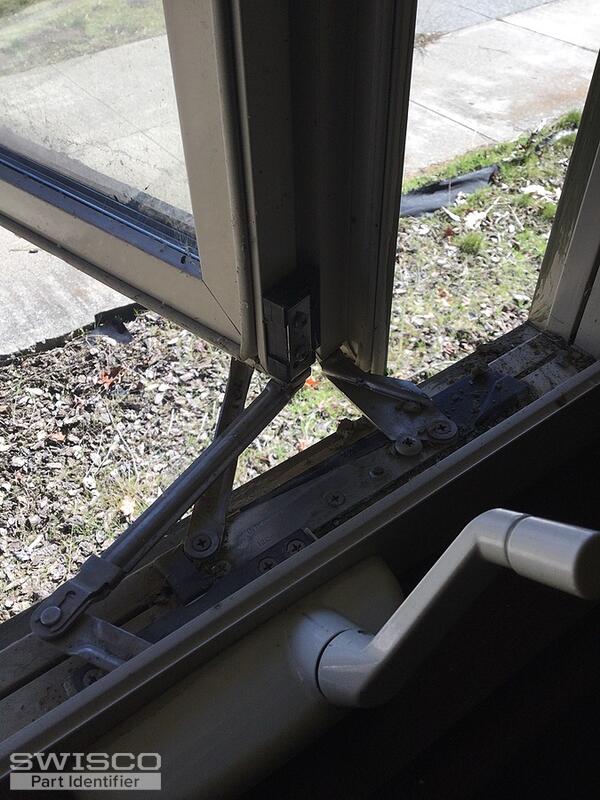

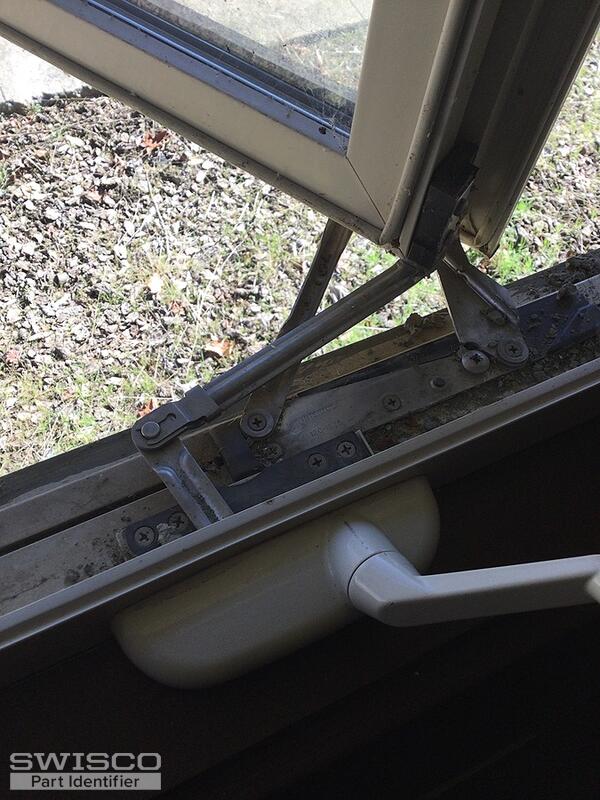

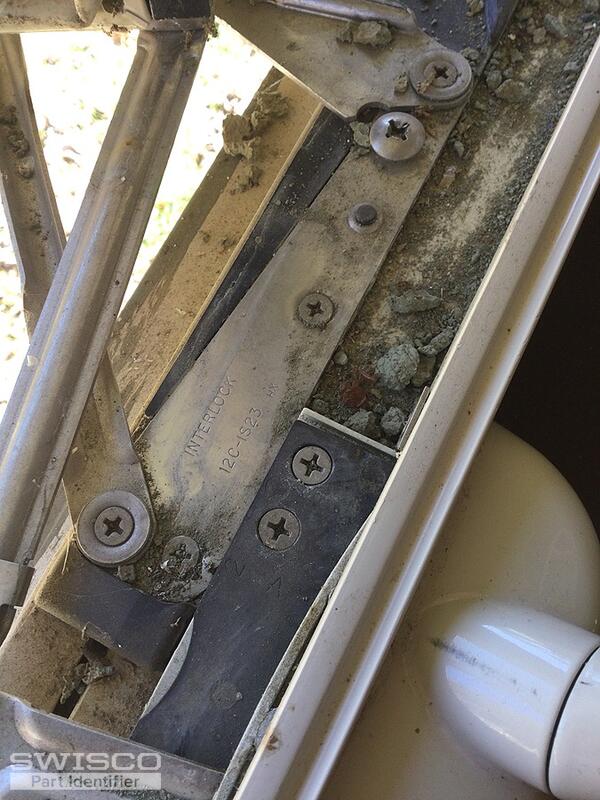

I could not find a manufacturer anywhere on these windows. Our customer is looking to replace around six of the crank operators that are stripped out. Any help would be greatly appreciated. Thank you.
Thumbnail of the uploaded file named 8CE73D34-2BFB-4AA4-BE43-38257A90F55.jpeg
Thumbnail of the uploaded file named F6C8873E-CBD8-4174-AB57-BC50BBDD490.jpeg
Thumbnail of the uploaded file named A600E098-FE2B-4800-BB79-F61C3D7C0EE.jpeg
Thumbnail of the uploaded file named A600E098-FE2B-4800-BB79-F61C3D7C0EE (2).jpeg
Profile picture of Casey
Casey from SWISCO responded:
February 22, 2022

Hello,

This looks like older versions of the ROTO 39-091 and 39-092 Short-Arm Operators. Unfortunately, ROTO has discontinued many components that are needed for this operator to function, such as the link arm that connects it to the window sash. Sometimes these bracket arms can be found secondhand on a site like eBay, but I can't make any guarantees. I apologize for any inconvenience.


ROTO Casement Operator
ROTO Casement Operator
39-091
$67.93
ROTO Casement Operator
ROTO Casement Operator
39-092
$67.93
Fold-down Crank Handle, 5/16" Hex
Fold-down Crank Handle, 5/16" Hex
39-224
$24.35
