Searching for milhyard H-LC30 window balance

Question

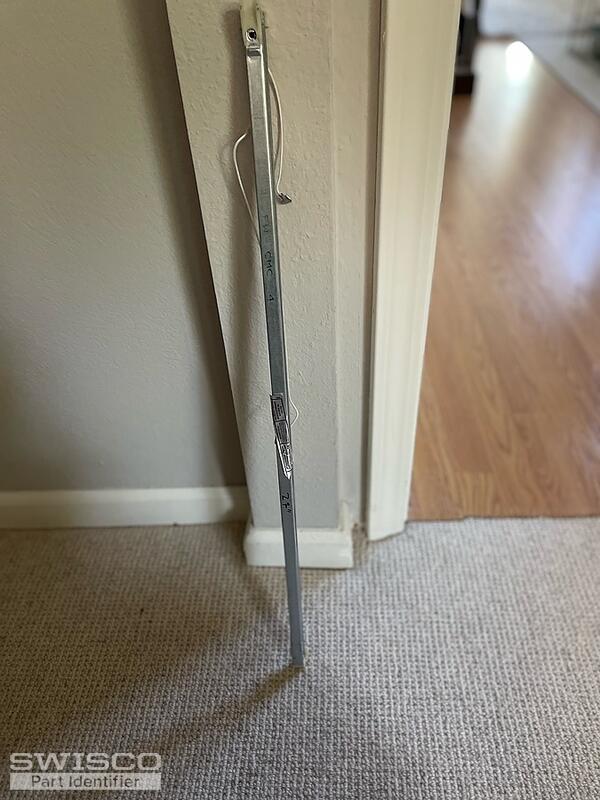

Hello - I am looking to replace a couple of Milguard window balance's. I have attached a few photo's. The balance is 27" (metal end to metal end) and 1/2" wide.

Thank You

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either the S380-27 or S385-27 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment.

You'll also need to weigh your sash to determine which option you'll need. There is a chart on the product page that explains how to choose your option based on the sash weight. Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
