Searching for op05-7509-03

Quick Learner
Hello - I am looking for a replacement piece for my right and left window cranks and handles. I attached a pic.

Handle Part: OP05-1509
Crank Part: OP05-7508
OP05-7509

Thank you very much for your help.

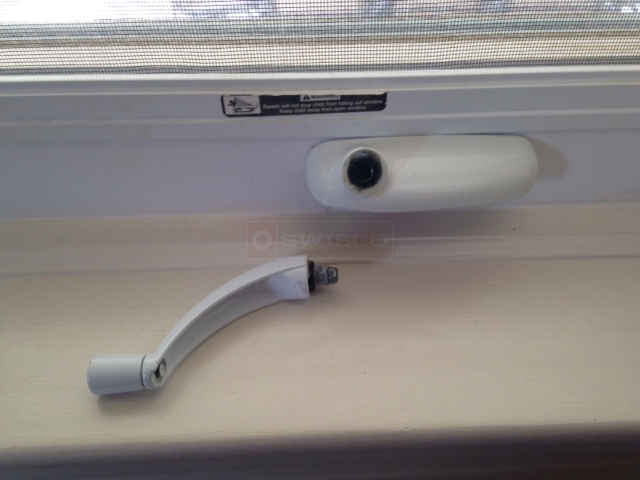

User submitted photos of a window operator.
4 Replies
Dave Sr.
Dave Sr. from SWISCO
SWISCO
Expert
This handle looks like our 39-226. However, the problem with this design is that the black plastic collar in the operator itself wears out and does not lock in the hex spline stud in the handle itself. If you find this is the problem, you could try a small piece of masking tape on the handle end or a little bit of an adhesive to help hold the handle into the operator. We do sell new operators with a newer type spline that may replace your older design. My feeling is that if you can get the handle to stay in the operator, go and use it till the operator wears out. Then you can change out the complete operator and handle to the newer style.
Handy Person from Hamilton NJ
"Then you can change out the complete operator and handle to the newer style"

Can you please tell me what the new operator & handle would be for this system?

Tom
Tom from SWISCO
SWISCO
Expert
I couldn't say based on this image. I would need to see what the operator looks like entirely removed from the window. From there, we can find a better match!
