Searching for part no 122099

A quick learner says:

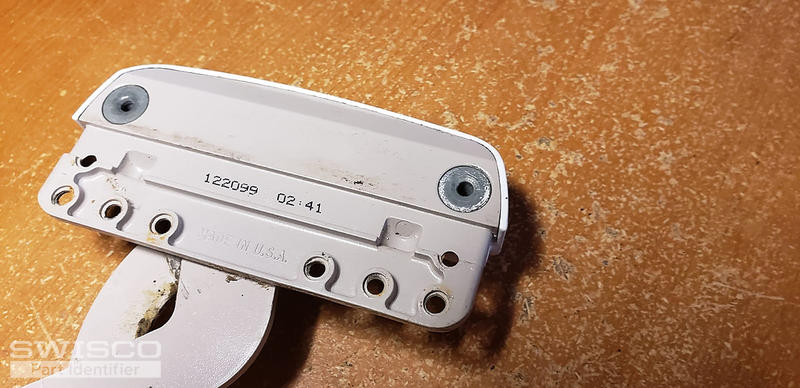

The part that Iam looking will open the window and now the dents has not deep enough this is the reason I have to change that and below the handel there is a number:122099 02:41 and Made in USA and on the one arm is 30744,but this no has continue may be no 4 or letter o,I can not read it.


Thumbnail of the uploaded file named 20200531_142357.jpg
Thumbnail of the uploaded file named 20200531_142427_037.jpg
Thumbnail of the uploaded file named 20200531_142440.jpg
Profile picture of Tom
Tom from SWISCO responded:

I'm not sure I understand the problem you describe, but it sounds like you need new operators. We can help. Before I recommend anything, I need you to disconnect the long straight arm from the track and show me a picture of the black slider that's at the end of it.

A quick learner from Montreal Qeubec Canada says:

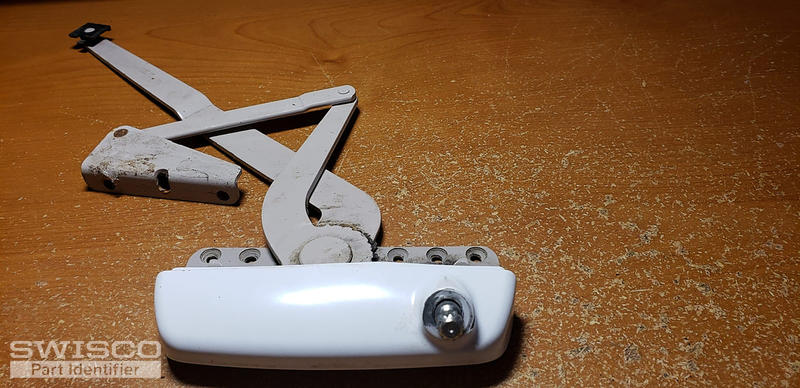

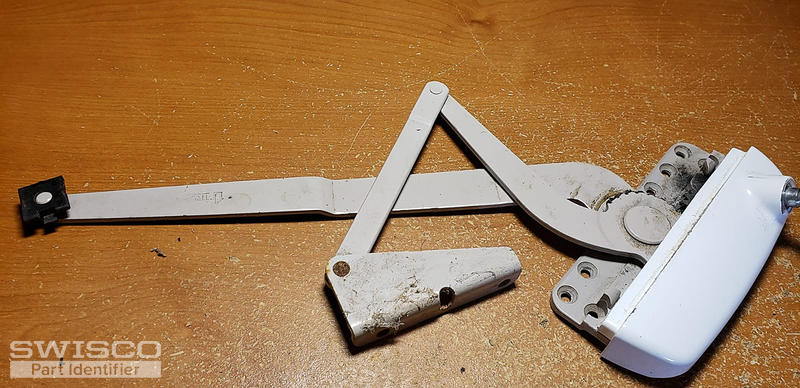

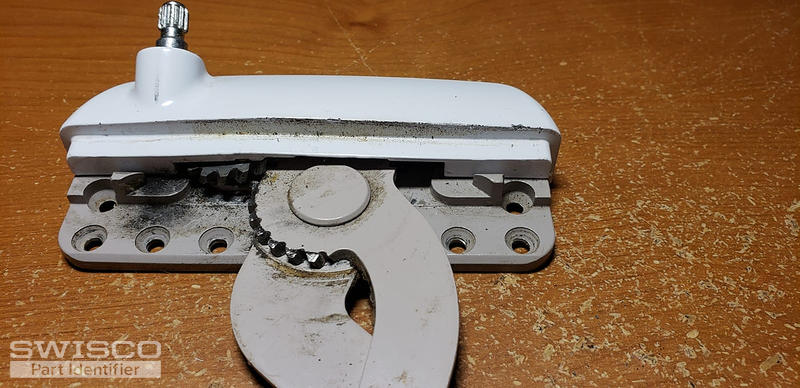

I am sending you the pictures that you requested .
Thumbnail of the uploaded file named IMG-20200604-WA0000(1).jpg
Thumbnail of the uploaded file named IMG-20200604-WA0000.jpg
Thumbnail of the uploaded file named IMG-20200604-WA0001.jpg
Thumbnail of the uploaded file named IMG-20200604-WA0002.jpg
Thumbnail of the uploaded file named IMG-20200604-WA0003.jpg
Profile picture of Tom
Tom from SWISCO responded:

Perfect, thanks. I recommend our 39-253LB. This is an updated version of your original part. Since Truth changed the design, the handle and cover are also sold separately under the 39-451. Finally, you can  reuse the black slider at the end of the arm, but if that's not possible then you can use our 39-529.
