Searching for pinnacle wood window casement hardware

A quick learner says:
May 8, 2022
Hello,

I'm looking for replacement hardware for my Windsor Pinnacle Wood Casement windows. The first 3 pictures are one style I need qty 12 complete (cover, crank handle, and locking mech.)

The 4th picture is for the same kind of window but the hardware. was a bit different, also Truth. I need 2 complete units.

Thank you

Scott
Thumbnail of the uploaded file named PXL_20220508_211512353.jpg
Thumbnail of the uploaded file named PXL_20220508_211702164.jpg
Thumbnail of the uploaded file named PXL_20220508_211726728.jpg

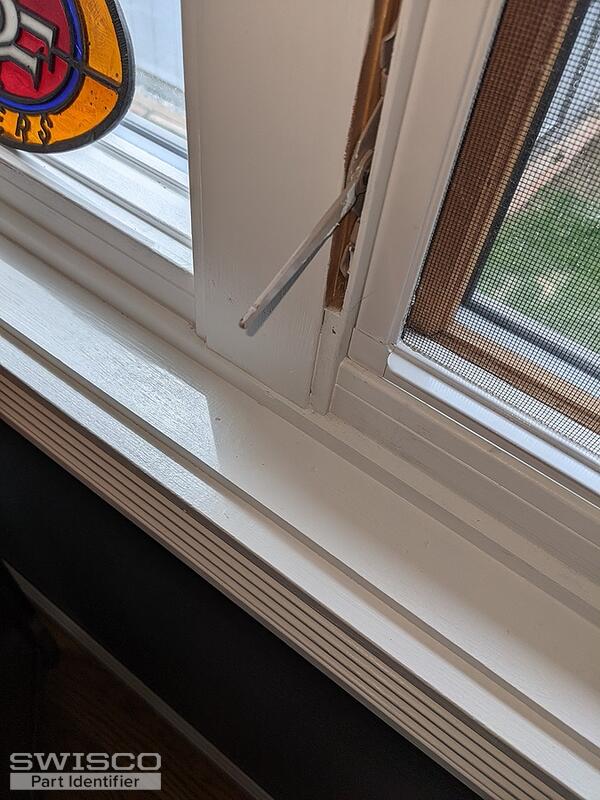

Thumbnail of the uploaded file named PXL_20220508_211712687.jpg
Profile picture of Tom
Tom from SWISCO responded:
May 10, 2022

Hello, Scott. We can supply each part you show in these photos. Looking at your very first photo, I see the 39-323 operator cover, 39-114L operator handle, and then maybe the 38-209 lockset. Note that this lockset is more of an educated guess, so look it over to confirm.

Your second photo shows a folding crank/cover combo like our 39-375, while the third photo of the different style lock matches our 38-208.

I recommend reviewing the specs and information we have for each part to confirm that everything matches. I'm here to answer any questions you may have.
Handle and Escutcheon, Truth Encore
Handle and Escutcheon, Truth Encore
38-208
$8.85
Truth Hardware Contour Cover
Truth Hardware Contour Cover
39-323
$4.10
Crank Handle, 11/32"
Crank Handle, 11/32"
39-114L
$4.42
Encore Truth Folding Handle with Cover
Encore Truth Folding Handle with Cover
39-375
$11.97
Handle and Escutcheon, Truth Mirage
Handle and Escutcheon, Truth Mirage
38-209
$13.90
