Searching for versa sash 2830

Quick Learner

The only marking on the part is 2830

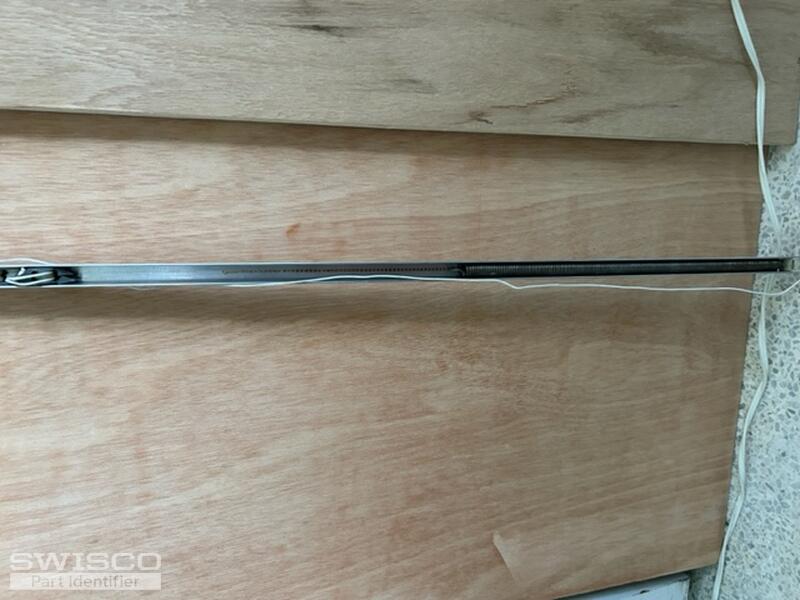

The channel is 29" long

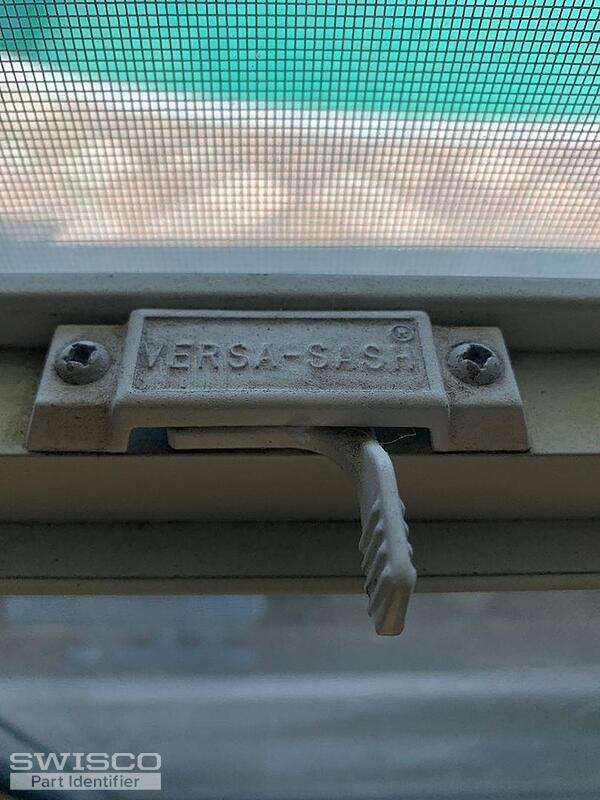

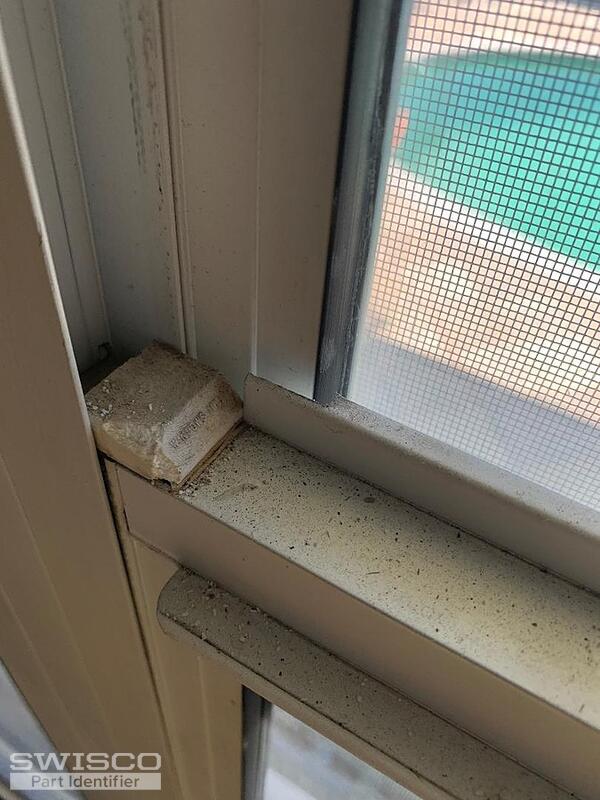

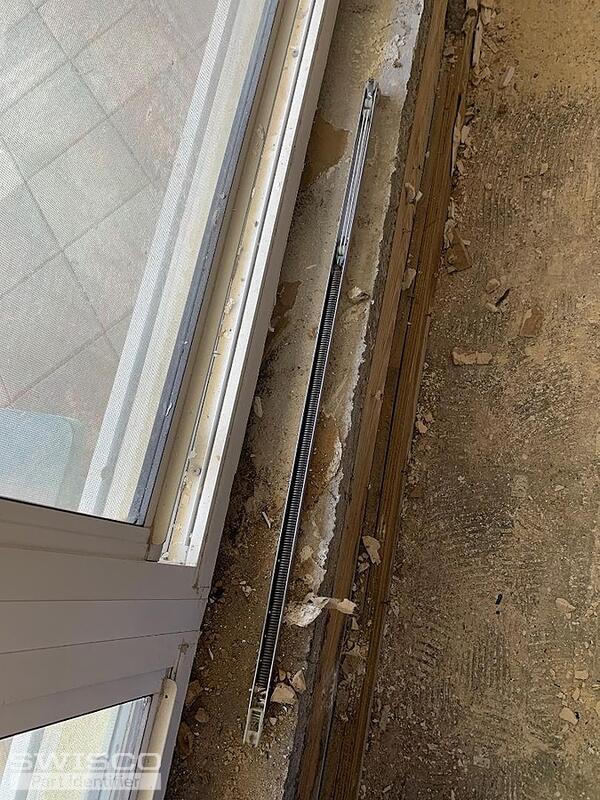

I am attaching photos.

Do you have replacements for this product?

The length is 29" VersaSash windows

Thanks,JG

3 user uploaded images
4 Replies
Casey
Casey from SWISCO
SWISCO
Expert

Hello,

We'd be happy to look into this for you but we would like to see close-up photos of the fitting attached to the end of the metal channel where the metal pulley hook extends from. Seeing that piece from a few different angles will help us narrow down your replacement options. Thank you!

Quick Learner

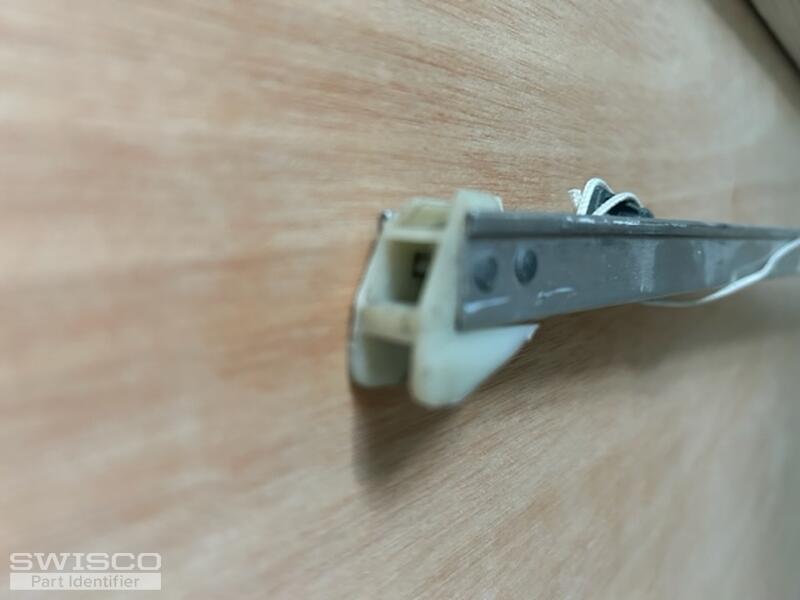

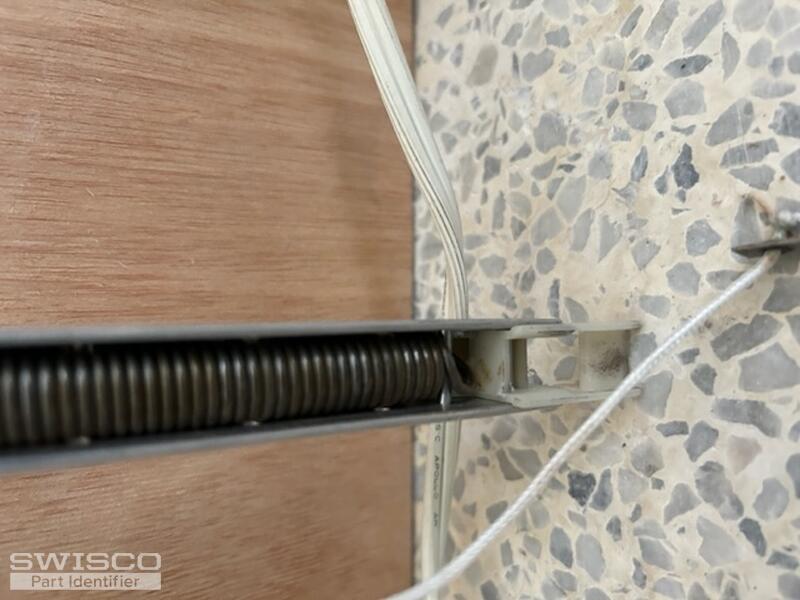

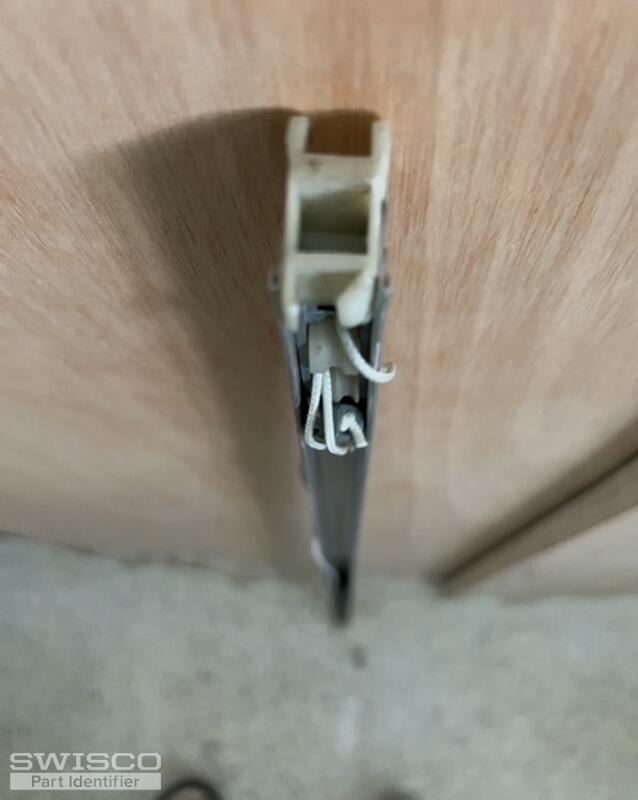

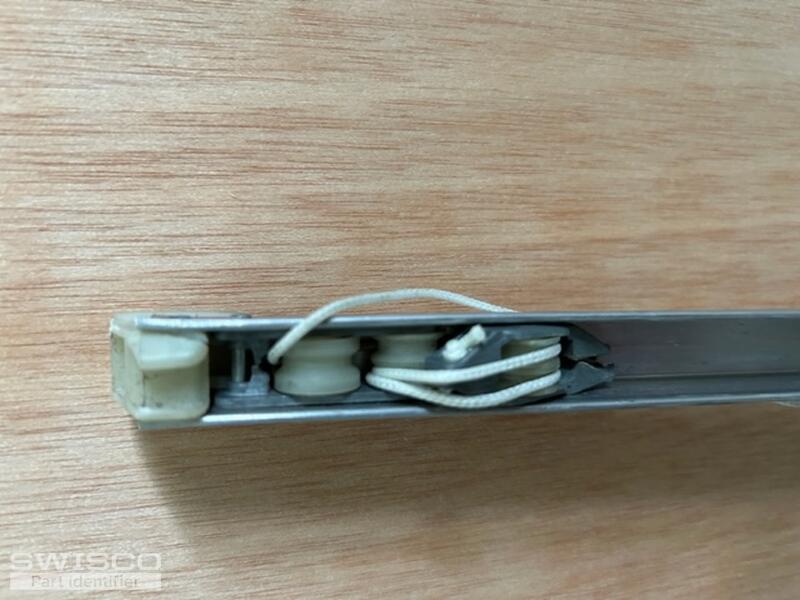

Here are additional photos
5 user uploaded images
Casey
Casey from SWISCO
SWISCO
Expert

Thanks for getting back to us. It looks like you have either our S351-29, with a 15-002 bottom attachment, or S390-29, with a 15-001 bottom attachment. Take a look at the image below to determine which balance you'll need. You'll also need a 2830 spring strength option for your replacement balances. Thank you!

Comparison of the S351 and S390 balance shoes.
Comparison of the S351 and S390 balance shoes.
