Searching for window master 800

A quick learner says:

Aloha,

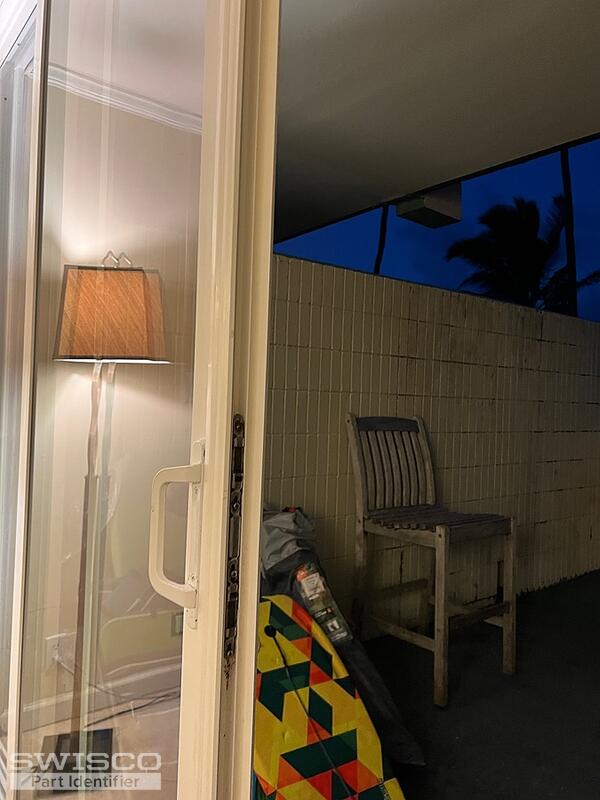

I have a window master 800 sliding glass patio door. which is (XOOX)made up of 4 panels of which the 2 center panels open and close. I am contacting your company so that I can buy replacement parts. Attached are photos which can assist in deterring the correct parts. I need to a roller fo one of the glass sliding panels. the entire locking double hook locking mechanism, and one outside handle. Could someone get back to me to assist me in selecting the correct parts?

Mahalo,

Henrik

Thumbnail of the uploaded file named IMG_0047.JPG
Thumbnail of the uploaded file named IMG_0048.JPG
Thumbnail of the uploaded file named IMG_0049.JPG

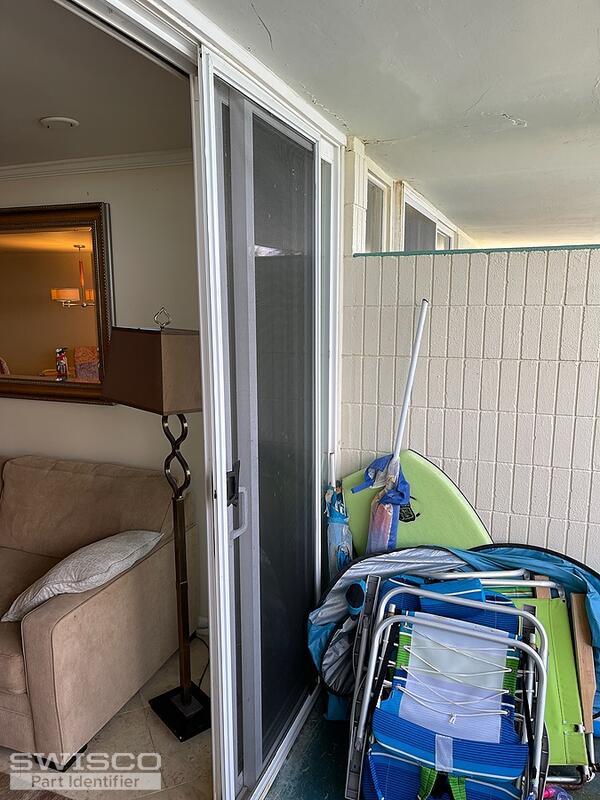

Thumbnail of the uploaded file named IMG_0050.JPG
Profile picture of Emily
Emily from SWISCO responded:

Hi, Henrik.

We'd be happy to help but we'll need to see your rollers removed from your door to compare to our inventory. We'll also need to see a clear picture of your mortise lock. I can't quite make out the details of yours in the pictures above.

As for your handle set, we don't have an exact match but I am reminded of our 82-030. If your hole center spacing is the same at 3-15/16", then you maybe able to use this as a substitute. Look it over and see what you think.

A quick learner from Honolulu, HI says:
Aloha Emily,

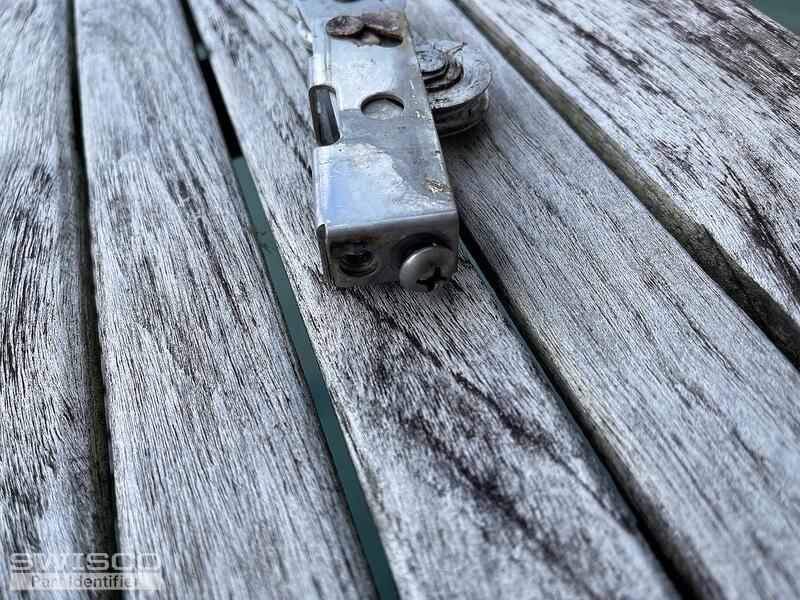

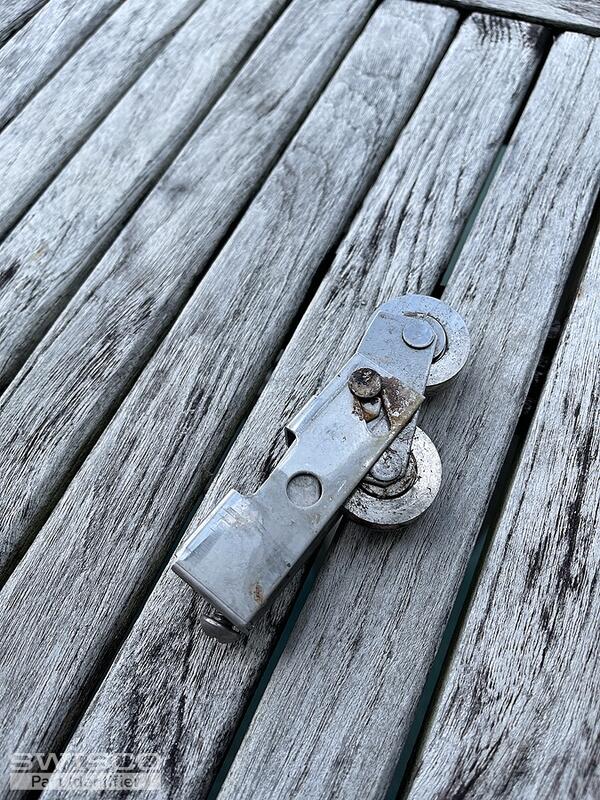

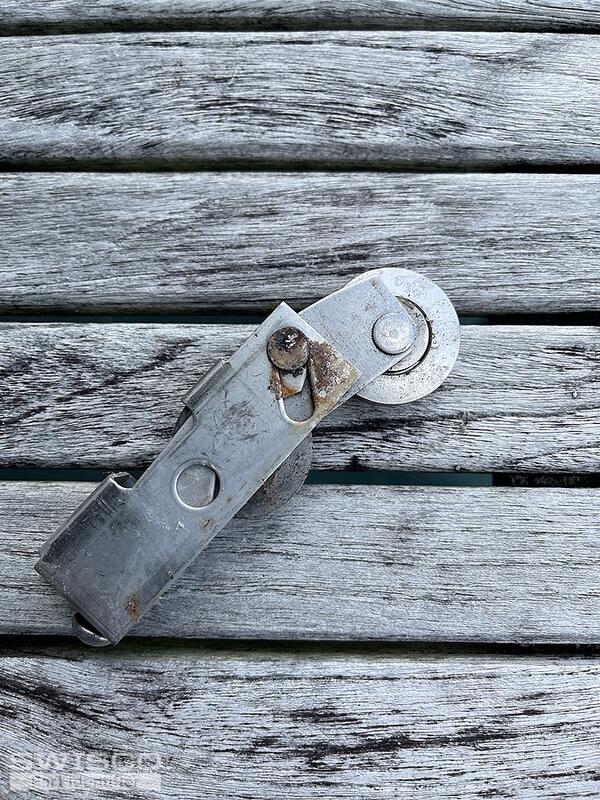

It took me a while to get you the pictures but here they are. The first 3 pics is of course the roller on front bottom sliding door.
Thumbnail of the uploaded file named EBD5DF71-5279-4367-AB6E-9A89BE11E798.jpeg
Thumbnail of the uploaded file named C1EF7B9E-6EC0-4865-9869-02C654D5C534.jpeg
Thumbnail of the uploaded file named 29EF5D27-579F-4B4E-B0A0-A9BFBF4ECE5A.jpeg

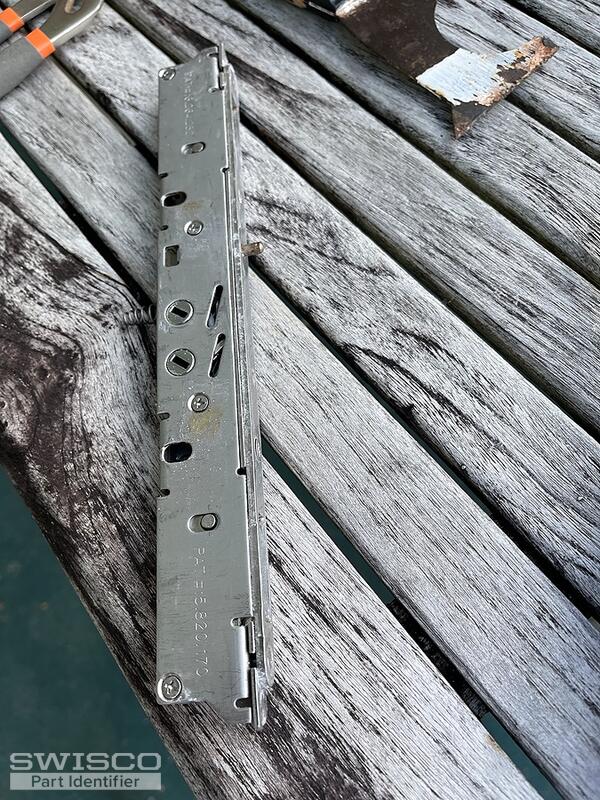

Thumbnail of the uploaded file named C32EBAC1-16B9-4251-8BA0-EDF1907F6843.jpeg

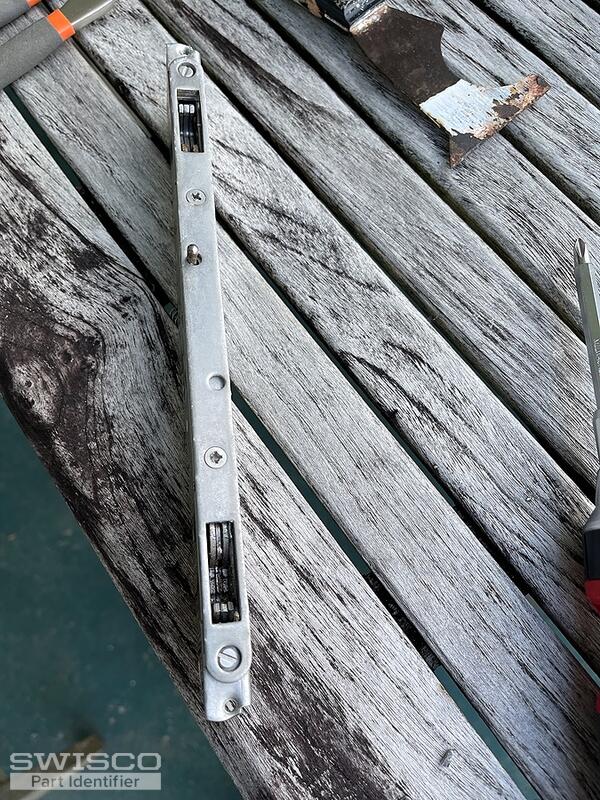

Thumbnail of the uploaded file named 93B29191-5BD5-4DE1-8E6C-04C6C99E6EBC.jpeg
A quick learner from Honolulu, HI says:

Aloha Emily,

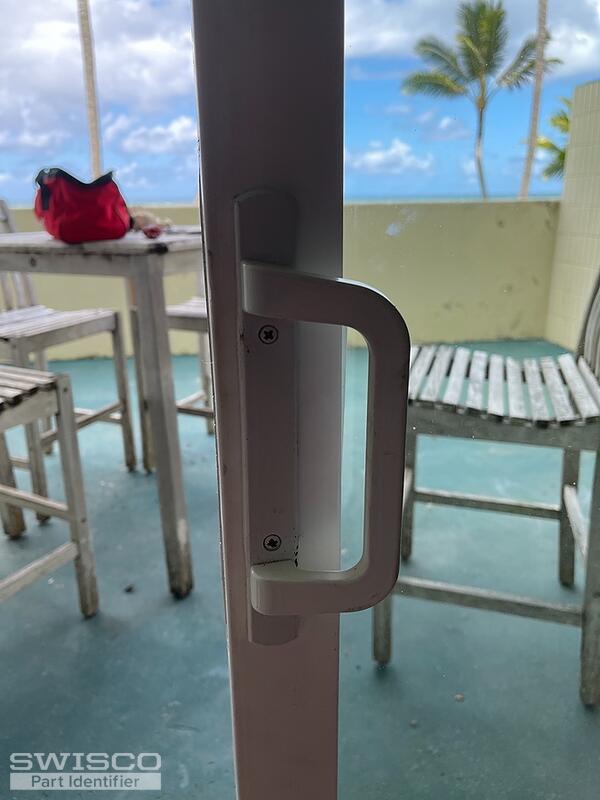

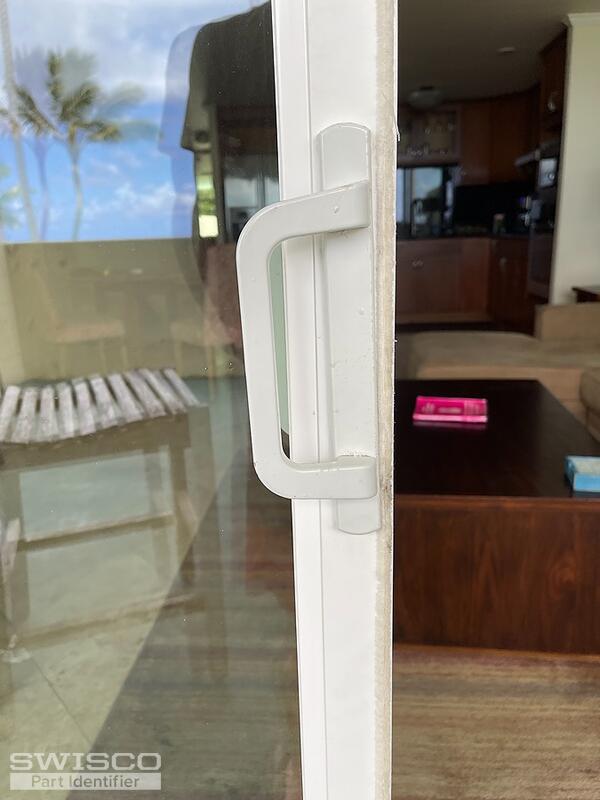

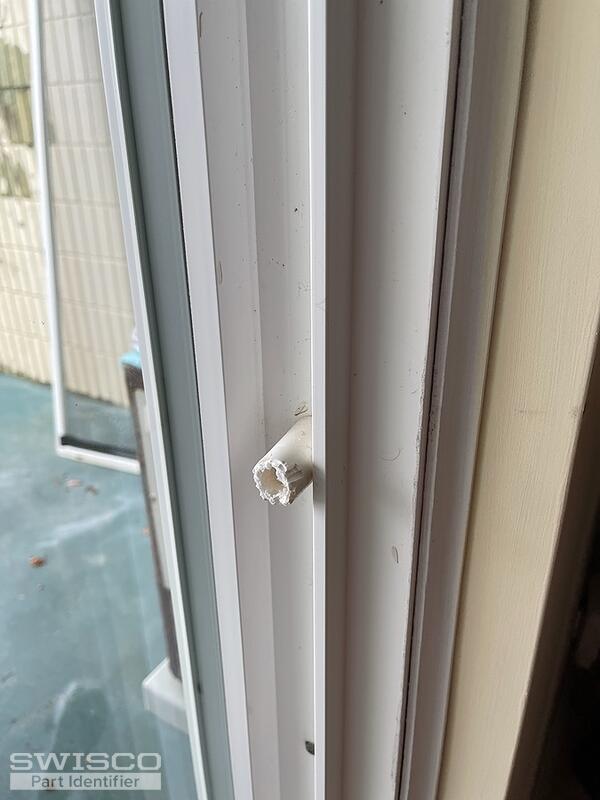

I clicked the submit button too soon. I'm hopping your inventory has on your door handles. The first picture is the door bumper which for some reason is falling apart. If you have 2 of those lets add them to my purchase. The other pictures are of my door handle. I would like the opposite side which does not haver the locking lever to unlock and lock the door. The little lever lock has gone missing so if I can't find it I'll have to buy 2 sets of handles one of which will have the locking lever. In that case we can go with a new style of handle. I'm hopping that I won't have to go there. So I'll let you know shortly after I hear back from you.

Thanks for your help,

Henrik

Thumbnail of the uploaded file named DCB22231-F28F-456D-902C-3E071FC35262.jpeg
Thumbnail of the uploaded file named 7DFD0D42-B8E1-42B4-8371-E6CC1EAD1A87.jpeg
Thumbnail of the uploaded file named ABA15891-BDA1-416A-9FE4-D15FF5211B17.jpeg
Profile picture of Emily
Emily from SWISCO responded:

Hey, Henrik! Thanks so much for the additional pictures! This is a huge help.

For the rollers, start by taking a look at our 81-158 to see if our dimensions match up to yours. I'm afraid we don't carry your exact handle set, but if your hole center spacing is 3-15/16" you might be able to use our 82-030. As for the mortise lock, see our 82-239 along with the 82-249 keeper. Carefully look over the dimensions for each item and compare them to yours to see if these match what you need.

A quick learner from Honolulu, HI says:
Aloha Emily,
Wow, your fast! I appreciate that, and thank you.

Two questions, first, what are the 2 measuring points that give me the hole center spacing? Second, the 3rd picture is of the door stop bumper, do you have those in stock?

I hope you have a great Labor Day weekend,

Henrik
Profile picture of Emily
Emily from SWISCO responded:

You'll want to measure from the installation hole's center to center. I'll attach a picture below that you can use as a reference. Let me know if it helps! As for the bumper, take a look at our 80-022B and see what you think.

I hope your Labor Day weekend was restful, Henrik!
