Sears UltraMaxE vinyl replacement parts

Quick Learner from Upper Black Eddy, PA

Jun 5, 2021 9:40 am

Hi,

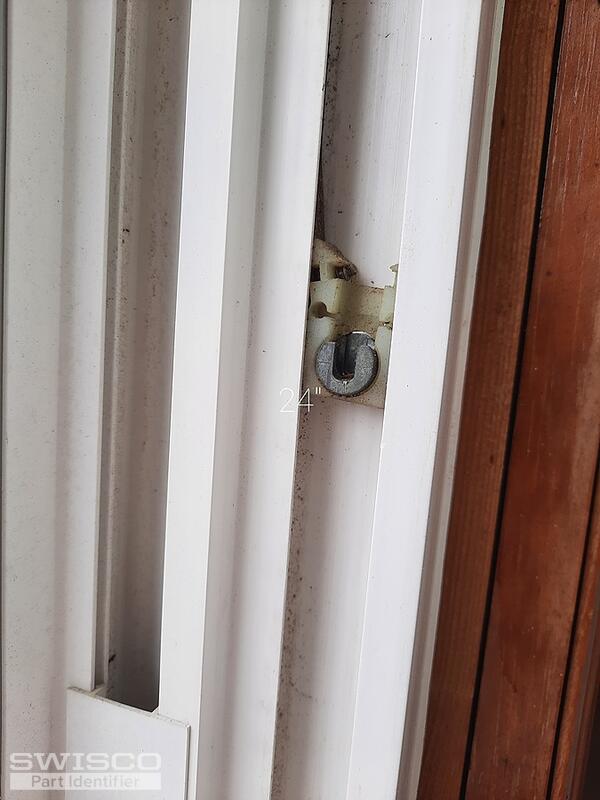

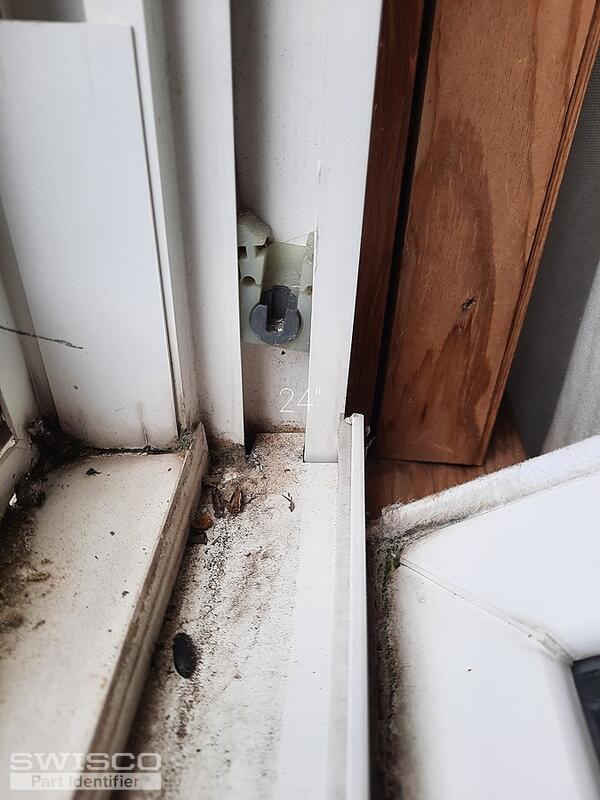

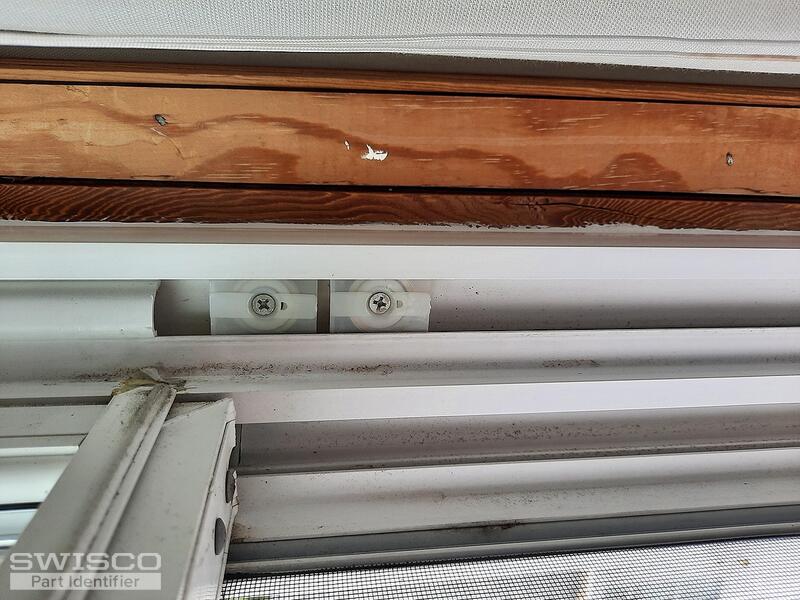

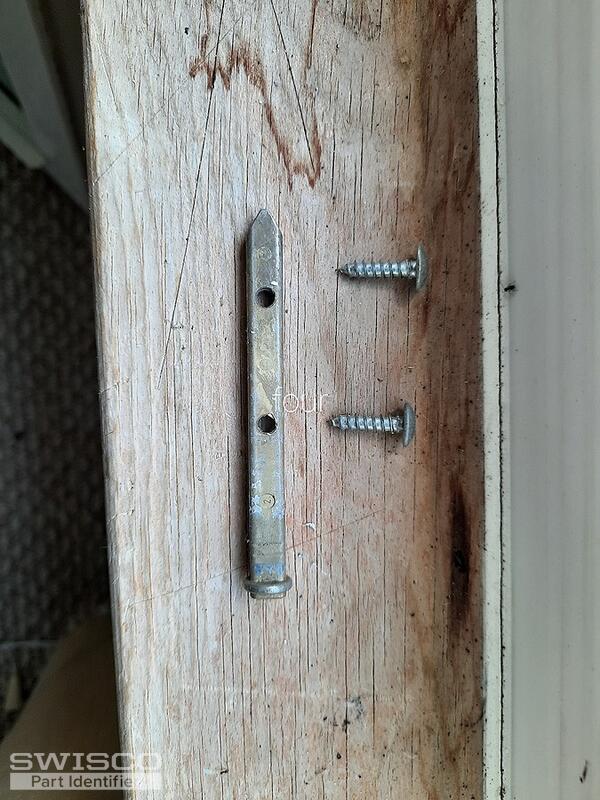

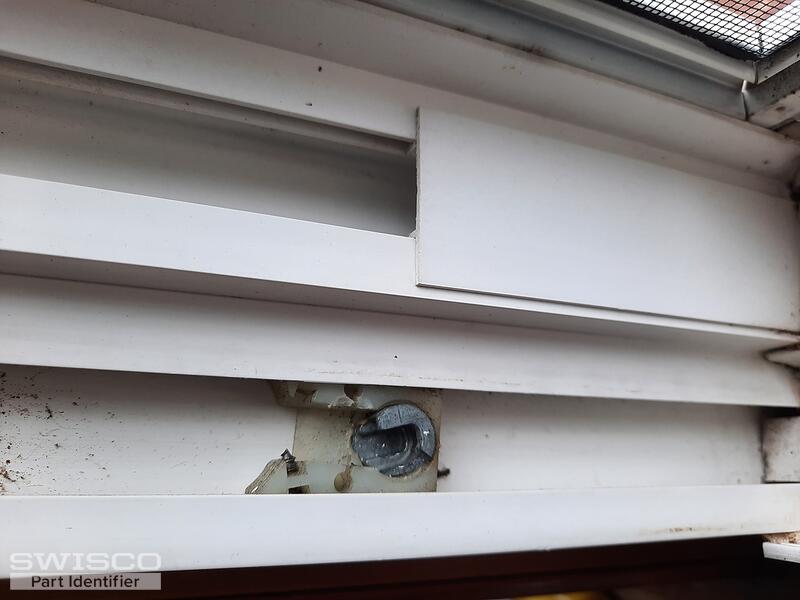

I need 5 coil balances, 5 pivot shoes, 5 standard supports and 5 pivot pins.
I am sending photos but couldn't locate any numbers.
Thank you

5 user uploaded images

4 Replies

Bob from SWISCO

Jun 9, 2021 1:36 pm

See our 15-175 Pivot Shoe, which uses Series 152 Coil Balances. We have a slightly different housing assembly for these coils--see the 15-143, 15-144 and 15-145. These parts collectively 'sandwich' around each coil. Finally, for the pivot bar, see if our 26-226 matches.

Quick Learner from Upper Black Eddy, PA

Jun 12, 2021 8:45 am

Thank you for your response. I won't be back to the job for two weeks and don't have a coil#.

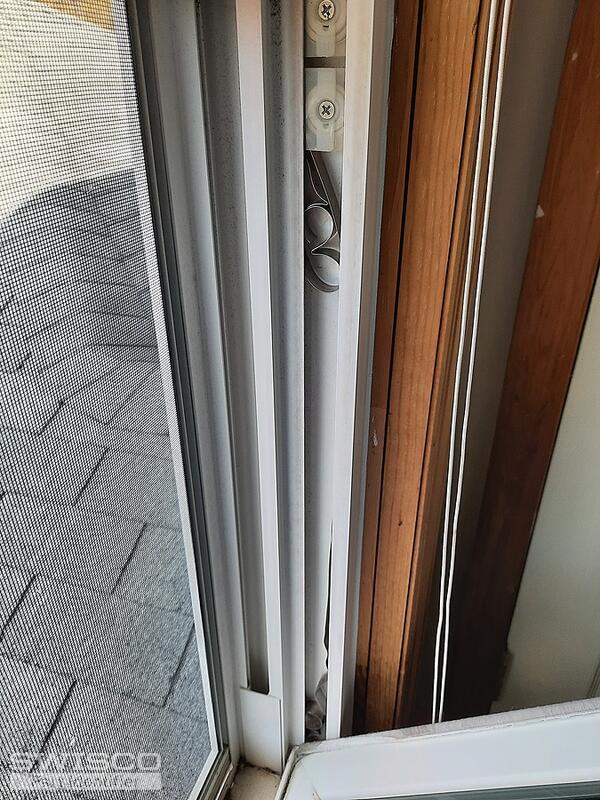

Does this photo help?

1 user uploaded image

Bob from SWISCO

Jun 14, 2021 8:16 am

I'm afraid not. If there are no stamps on the coils, or you are uncertain, please provide the weight of the window sash. Give me that exact weight, and I can work out what you need.
