Sears double hung coil balance shoe

A quick learner from Ma says:
April 24, 2020
Please provide replacement pivot shoe part. The one on the picture is not broken but the other side is. Has metal cam. Coil picture included for informational purposes.

These are from a Sears window.
Thumbnail of the uploaded file named 6DD1383F-E143-4094-B87A-D5BE64663D09.jpeg
Thumbnail of the uploaded file named 742B16DB-B4E3-4BC2-B4F5-584FAF4BE16F.jpeg
Profile picture of Tom
Tom from SWISCO responded:
April 28, 2020

You may be able to use our S140-5 coil balance system to replace this, but there are a couple of things to keep in mind. First, you'd have to replace your pivot bar with either our 26-398, 26-405, or 26-454 depending on whichever has the best hole placement.

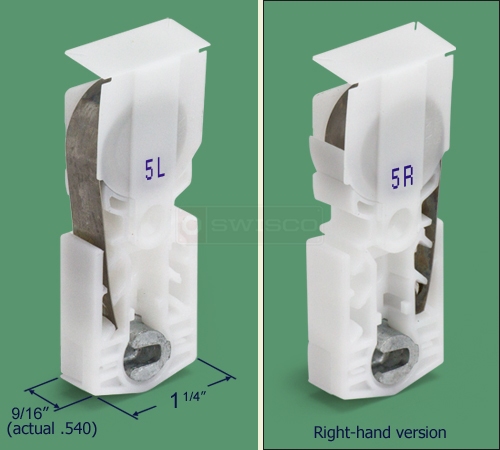

You also need to make sure the size of the S140-5 matches your existing pivot shoe. Refer to the diagram below.

S140-5 details
5 lb Series 140 Quick-Tilt, Single
5 lb Series 140 Quick-Tilt, Single
S140-05
$7.49
Round End Pivot Bar, 2-1/2"
Round End Pivot Bar, 2-1/2"
26-398
$1.70
Rounded End Pivot Bar, 2-7/8"
Rounded End Pivot Bar, 2-7/8"
26-405
$1.72
Pivot Bar, 2-1/2"
Pivot Bar, 2-1/2"
26-454
$1.98
