SeasonShield window ballance replacement

Question

I have 3 windows form Seasonshield Window out of Georgia, i need to replace the ballances, and tilt lock relases. The windows are double hung with fixed top sashes.
window 1
4 balsaters are 35" in lenght with no ball on the bottom the window size is 30"x 33" , there is 4 ballasters working the bottom sash. the top of the balaster is screwed into the window fram
window 2
4 balsaters are 28 3/4" in lenght with yellow ball on the bottom the window size is 30"x 33" , there is 4 ballasters working the bottom sash. the top of the balaster is screwed into the window frame
window 3
2 balsaters are 34 7/8" in lenght with yellow ball on the bottom the window size is 30"x 33" , there is 4 ballasters working the bottom sash. the top of the balaster is screwed into the window frame

Casey · Accepted Answer

Hello,

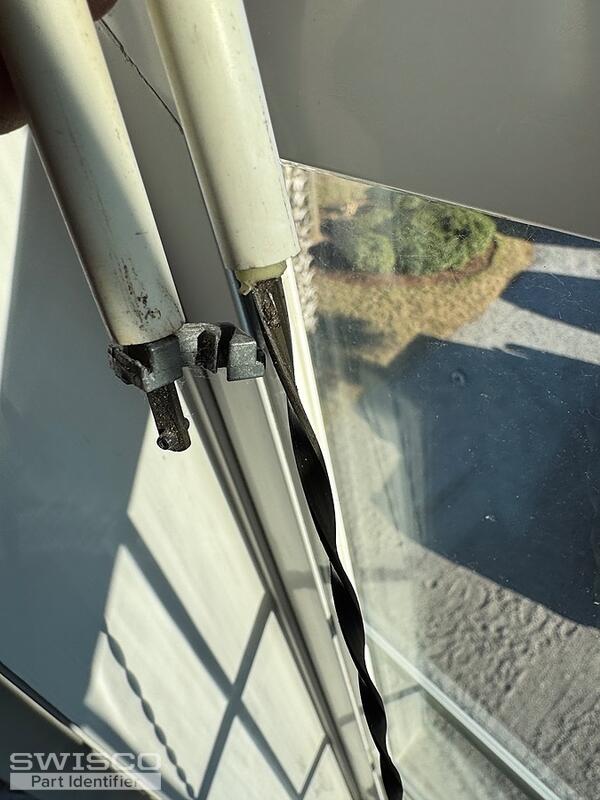

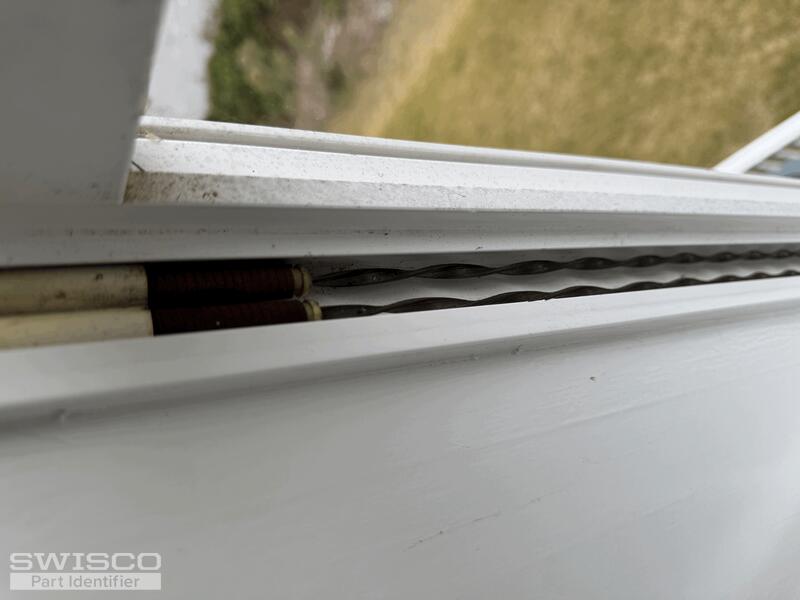

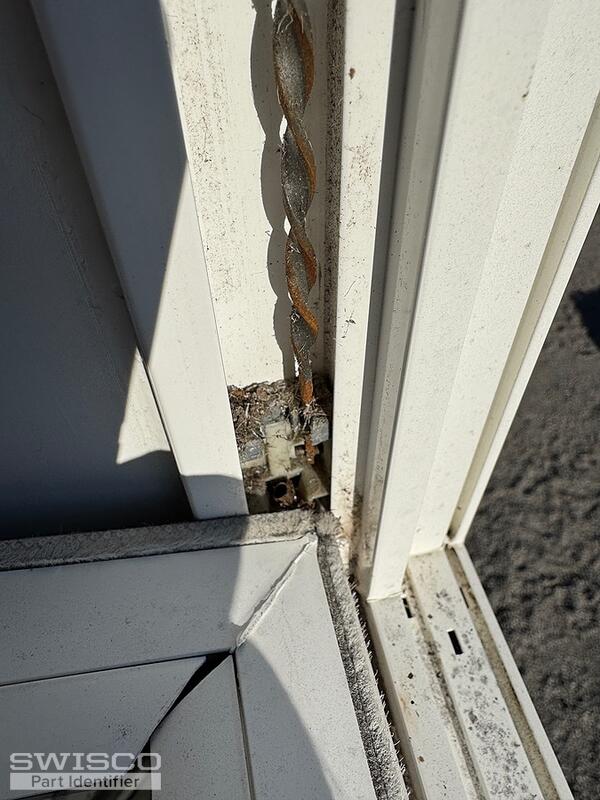

We'd be happy to look into this for you but we'll need a bit more information to get started. If you could show us the end of the spiral of an intact balance that connects to the pivot shoe, that would help us narrow down your options. We'll also need to know if the plastic housing tube measures 3/8" or 5/8" in diameter.

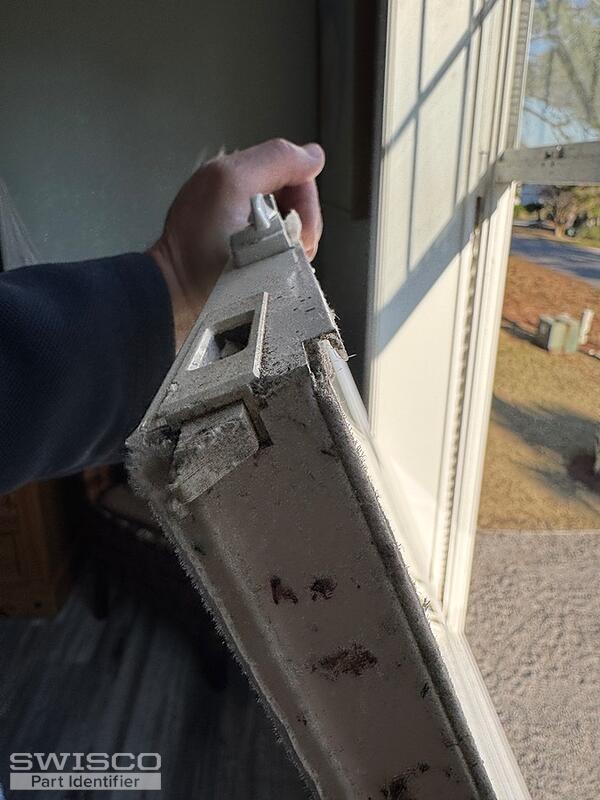

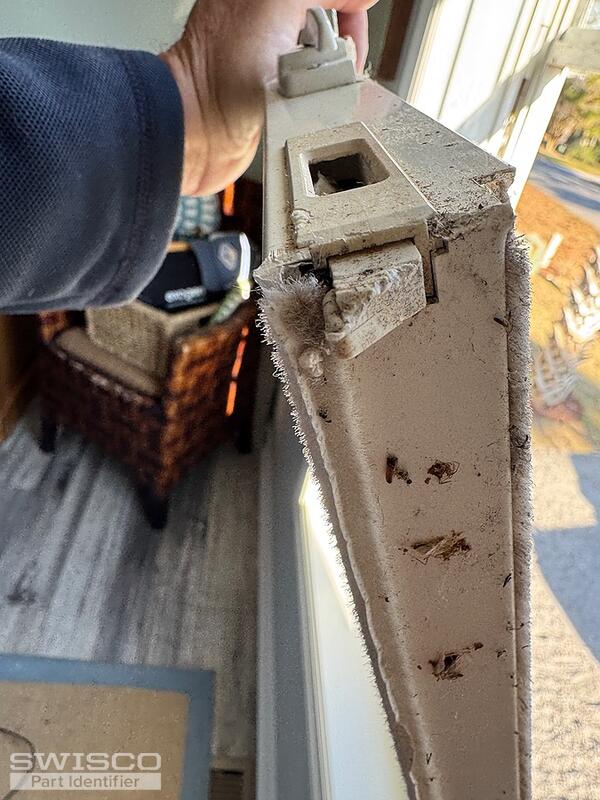

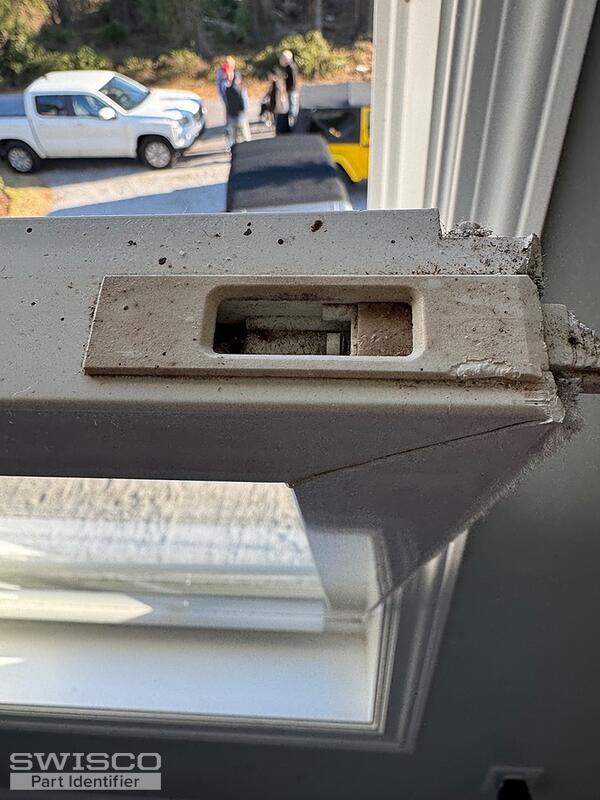

We should be able to replace your tilt latches as well but the part shown in your photo is too damaged to identify. If you could show us an intact latch from the other side or an identical window, we can go from there. Thank you.
