Seasonshield window sash guide inquiry

Quick Learner from Clermont, FL
May 15, 2024 8:05 pm
I have Seasonshield Series 2001 Aluminum Single Hung Windows in my home and needs some replacement sash guides.
The total height of the sash guide is 1 5/8 inches.
The width of the sash guide is 9/16 inch.
The front to back measurement is 19/32 inch.

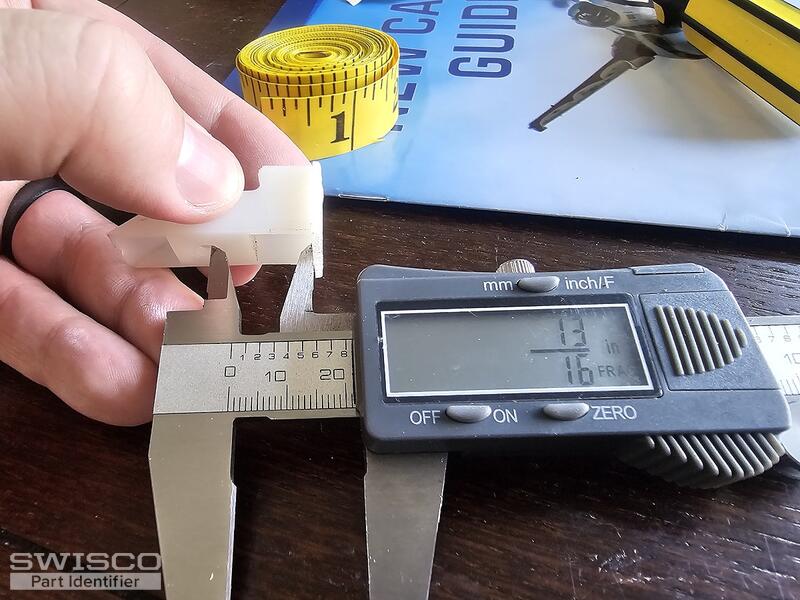

The measurement from the center of the screw mounting hole to the underside of the top cap/lip is 13/16 inch (it might even be 7/8 inch).

Do you have a sash guide that will work with my windows?

Thank you for your assistance.
20240515_181207 20240515_181257 20240515_181342 20240515_181615
4 user uploaded images
2 Replies
Bob
Bob from SWISCO
May 16, 2024 1:01 am
SWISCO
EXPERT

Thanks for posting. The 18-201 would be my first guess, but the design is different enough to give me pause. How does our 18-009 or 18-166 compare? Though they have a different design, if the dimensions otherwise match best then one of these might work also. Compare your old guide with the diagrams listed below and let me know what you think.

Dimensions for 18-201
Dimensions for 18-201
Alternate view of 18-201
Alternate view of 18-201
Profile view of 18-166
Profile view of 18-166
Detail of 18-166
Detail of 18-166
Profile view of 18-166
Profile view of 18-166
Detail of 18-009
Detail of 18-009
Side view of 18-009
Side view of 18-009

Quick Learner from Clermont, FL
May 26, 2024 3:57 pm
I ended up ordering several different sash guides to see which was the best fit. The sash guides I ordered were the 18-044, 18-127, 18-018, 18-166, 18-201, and 18-009.
Both the 18-044 and 18-127 sash guides were a good fit, but I think the 18-127 was a better fit and better replacement.
Hopefully this helps anyone else looking for sash guides for their seasonshield windows.
