See original promotional photo of Legance

A home owner from Fairport, NY 14450 says:
August 24, 2022

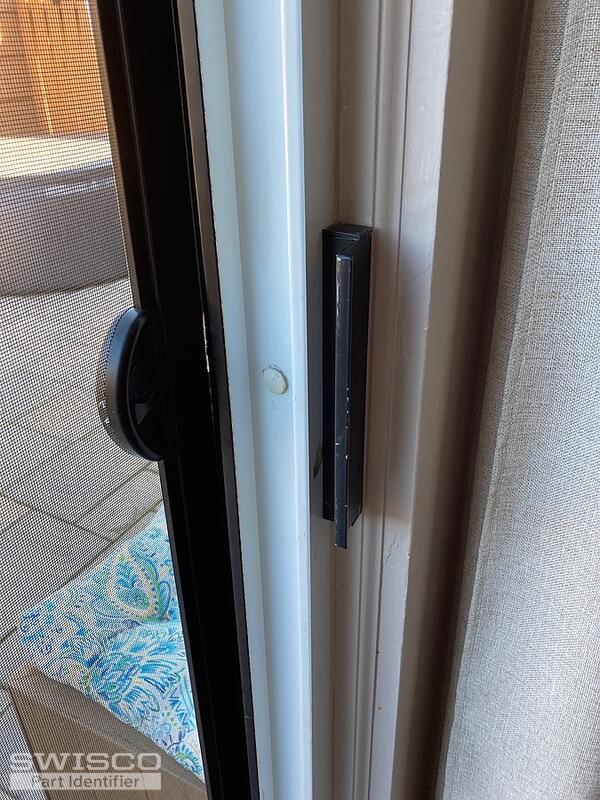

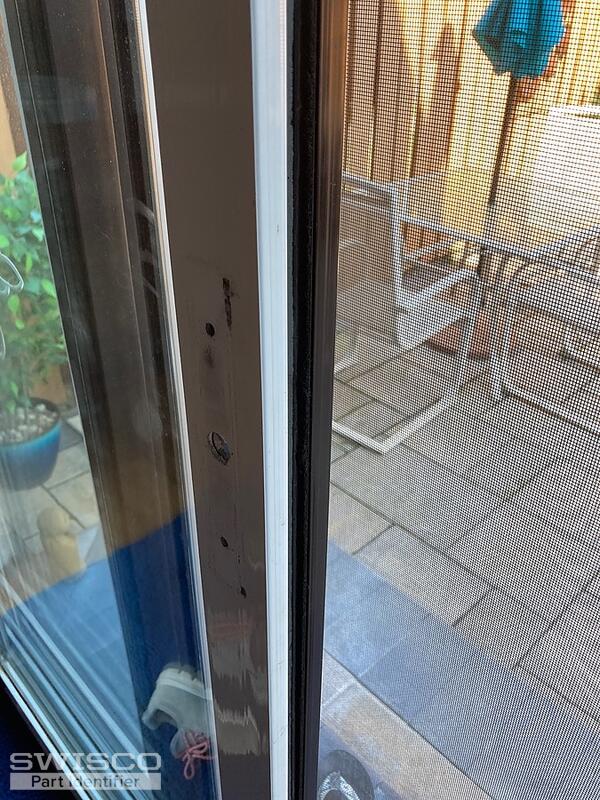

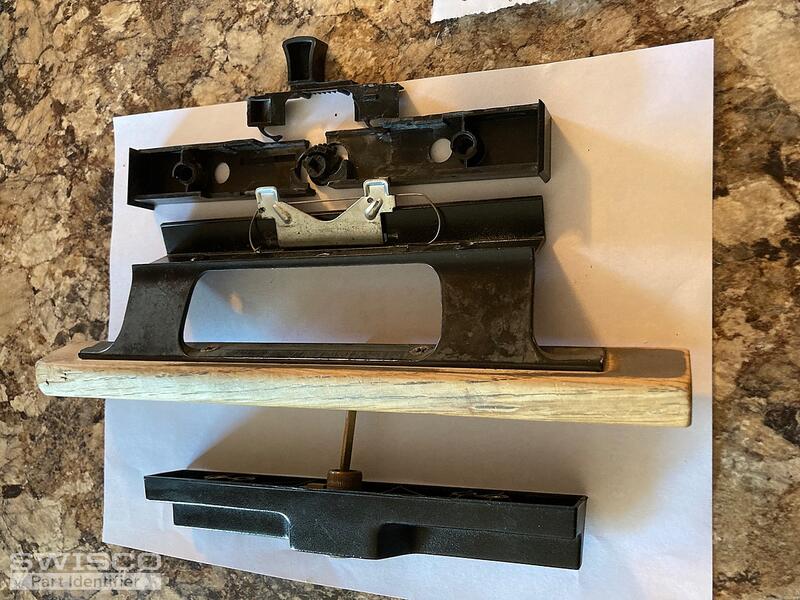

There is no info on the door or hardware. We have been to hardware stores and they were unable to provide any info & suggested this site.
Thumbnail of the uploaded file named F1D2F827-0245-417A-8FE3-5BB310291D2B.jpeg
Thumbnail of the uploaded file named 03FAD948-4111-4316-AB7B-984159611255.jpeg
Thumbnail of the uploaded file named AB4FBBB8-60C9-4F64-A66E-452184C28770.jpeg
Thumbnail of the uploaded file named C4E6DD6B-9B7F-4796-BF41-3DCED8D6CDA1.jpeg
Profile picture of Tom
Tom from SWISCO responded:
August 25, 2022

Hello! Thanks for reaching out to us. Your handle looks very familiar at first glance, but I'm a little confused about how it latches. I don't think I've ever seen a latch mechanism quite like that before, unless I'm just missing something.

Would it be possible to see a photo of how this latches the door shut? Can you also show me the keeper/striker that it latches to to begin with?
A home owner from Fairport, NY 14450 says:
August 26, 2022

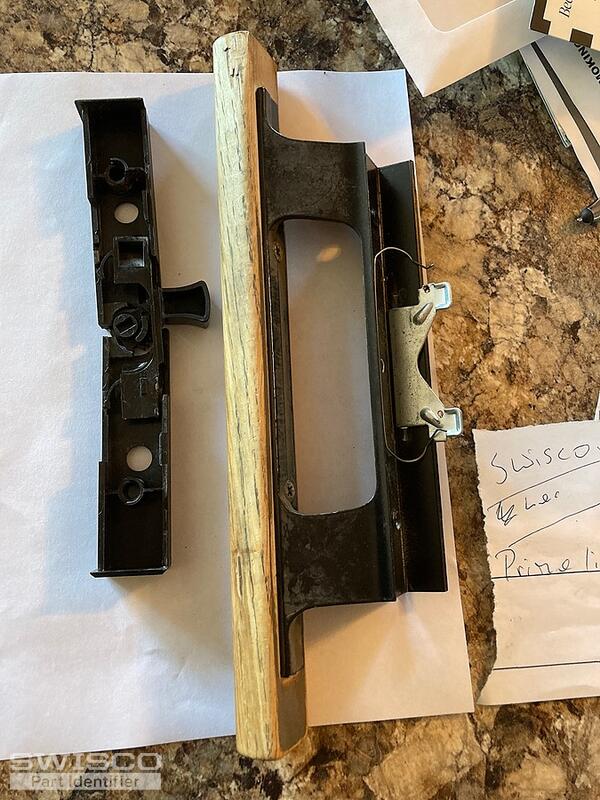

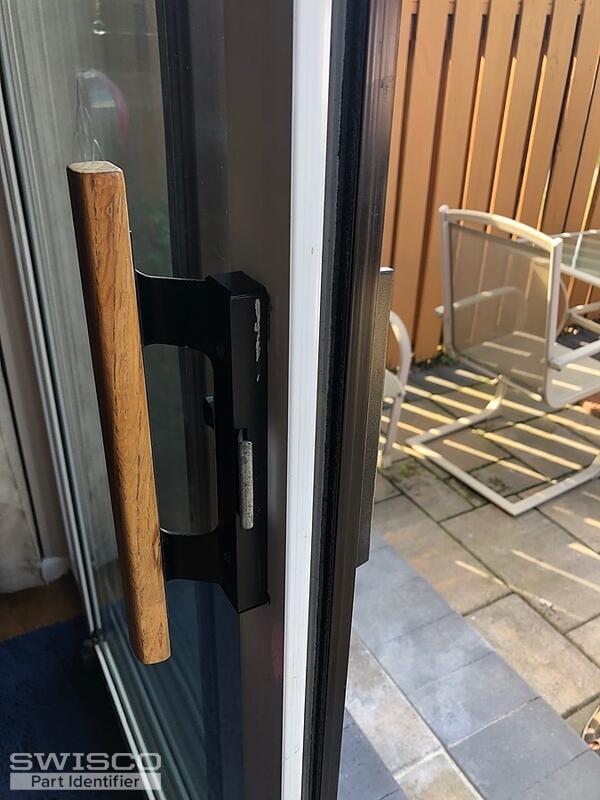

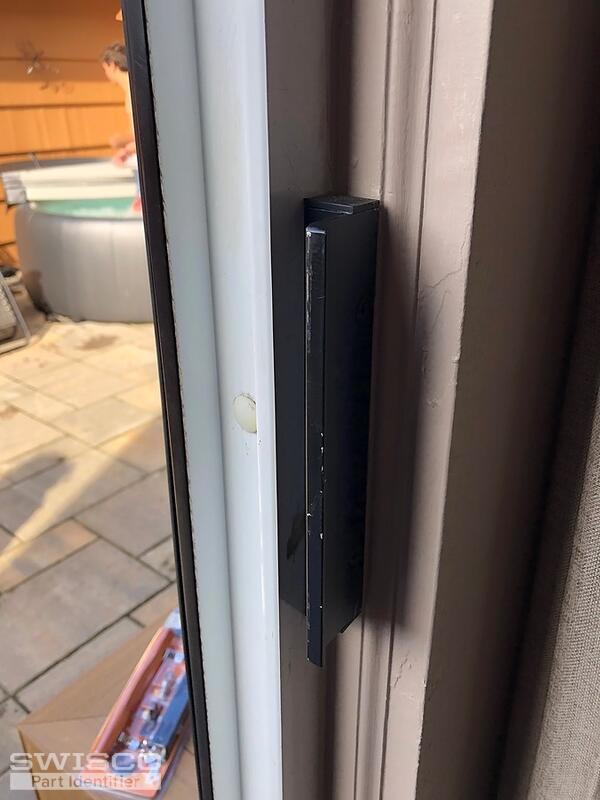

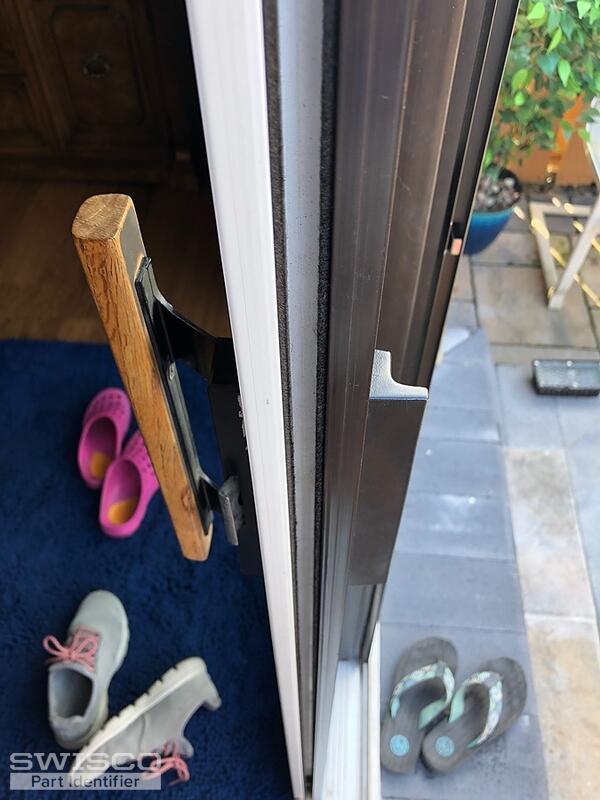

In the first photo you see a black metal piece which is attached to the wall side of the door and has a lip on the edge of it. In the second and third photo you see a flat metal hook on the right side of the wood handle. On the left side of the wood handle there is a lever. When you push down the lever the metal hook clips onto the lip. The plastic housing inside that holds the locking mechanism has broken so it is impossible to show you what it looks like when it's hooked/locked.
Thumbnail of the uploaded file named CCFB330B-76D6-416F-8632-939DC545A0BE.jpeg
Thumbnail of the uploaded file named F31688E5-AEB6-4C53-AC6F-EAF88F3B77BA.jpeg
Thumbnail of the uploaded file named 41A014A0-B62A-41F5-A4FF-DA91E8189A86.jpeg
Profile picture of Tom
Tom from SWISCO responded:
August 26, 2022

Ah, these new photos are a huge help. Thank you!

Based on what I see here, my recommendation is our 82-009A. It may look different at first but you'll note that it installs via that clamp, same as your original. The only thing you need to keep in mind here is the hole spacing: as long as yours is 4-15/16", then our set should install perfectly fine on your door and function without any alterations.

Alternate image for 82-009A
Alternate image for 82-009A
Patio Door Handle Set, 4-15/16"
Patio Door Handle Set, 4-15/16"
82-009A
$45.70
Keyed Exterior Sliding Door Pull
Keyed Exterior Sliding Door Pull
82-306
$29.70
