Seeking Patio Glass Door Roller

Home Owner from Kerrville, Texas

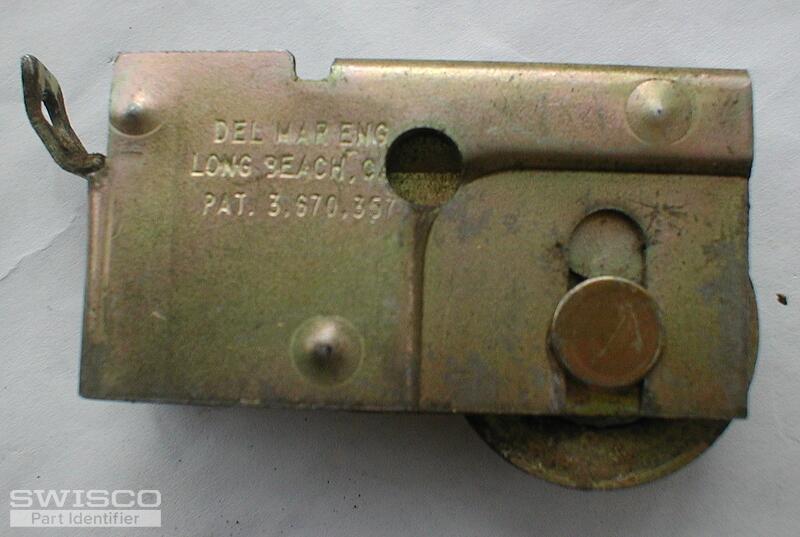

Del Mar Eng. Long Beach CA Pat. 3,670,357

Housing length: 2-3/16

Roller: 1-1/16

Housing height: 1-3/16

Width: 23/34

1 user uploaded image
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. Could you confirm your measurements? I am not certain about all of them, particularly the width. Keep in mind that the most pertinent dimensions for patio door rollers are the height, width, and diameter of the wheel. Either way, look at the 81-269 to start. Compare with your old part and see if you think this could work for you. Also keep in mind that the roller is adjustable, within a + or - 1/2" range, so if the diameter on your rollers is a bit smaller it shouldn't be an issue. Let us know your thoughts.
