Seeking Replacement Balances

Landlord from Eugene OR

Dec 28, 2018 5:41 am

Hi, I need 2 balances, stamped 2340k B.S.I I think it would be straightforward but I don't know what k means. Let me know if you need more pictures. Thanks for your help.

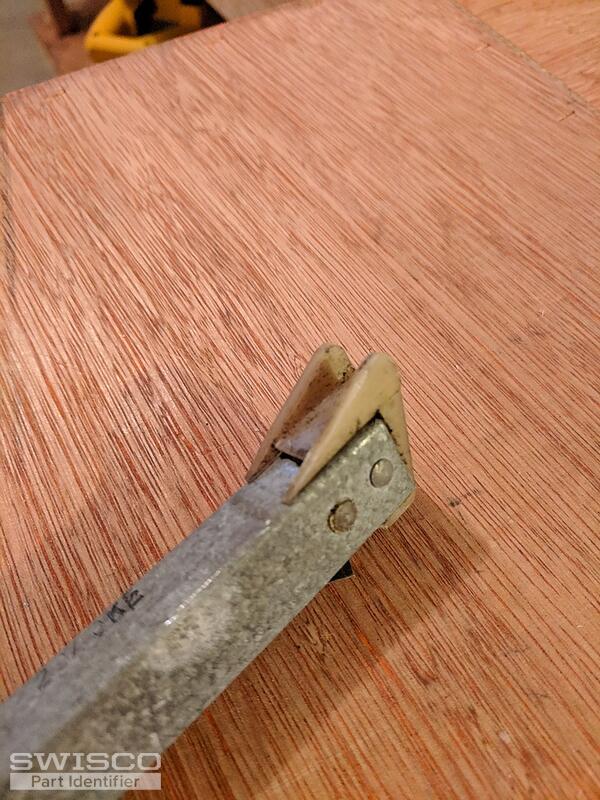

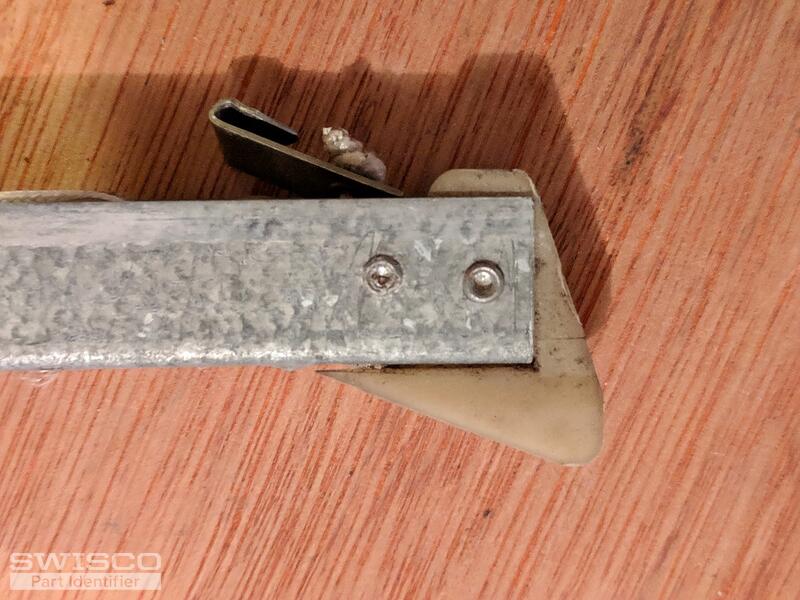

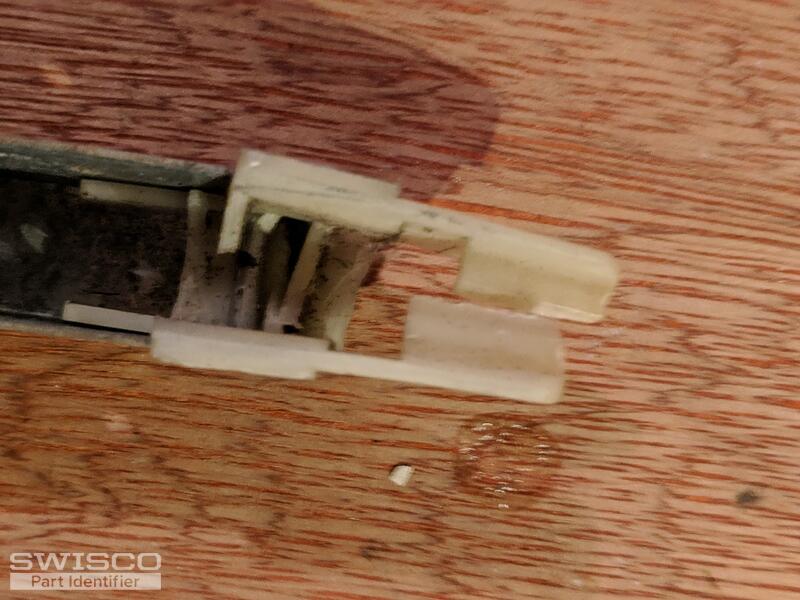

3 user uploaded images

8 Replies

Bob from SWISCO

Dec 28, 2018 8:10 am

Thanks for contacting SWISCO. I think we can help you replace these balances, but I'll need a little more information first. First, could you provide clearer pictures of the attachments at either end of the metal channel? And could you also measure the length of the metal channel, but not including the end attachments? This information will help us narrow down what you need. Thanks.

Landlord from Eugene OR

Dec 29, 2018 3:57 am

Thank you. The metal part of channel is 24in long.
Channel width is about 1/2 (9/16 exactly)
And depth is 5/8in.

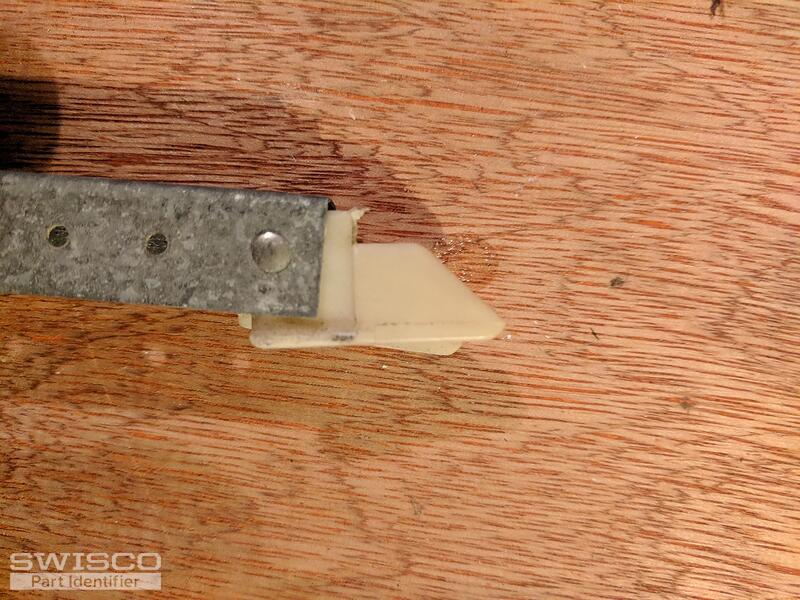

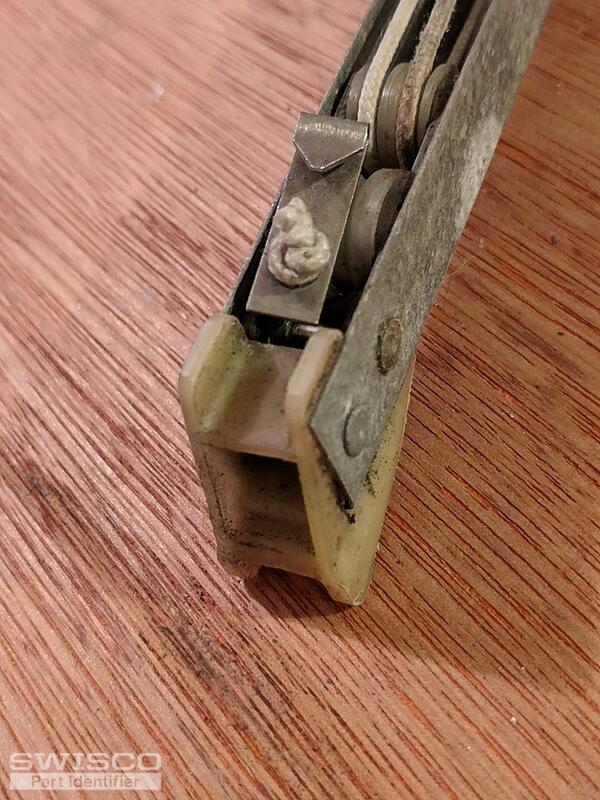

2 user uploaded images

Bob from SWISCO

Dec 31, 2018 2:18 pm

Could you confirm that the top nylon cap has 'wings' on its sides? It's a bit hard to tell in the photo. If it does, then take a look at our S395-24. Select a stamp option of 2340.

Landlord from Eugene OR

Jan 5, 2019 7:30 am

The wings on 19-005 make it 15/16" wide and the old one is 9/16" at best, so I don't think its 19-005....Maybe 19-002?

If that's right, then perhaps I need S390-24 with the 15-001 shoe, and 19-002 top guide? What do you think? Attached are a couple more photos.

Thanks again. Vin

3 user uploaded images

Bob from SWISCO

Jan 7, 2019 8:36 am

Yes Vin, thanks for the confirmation. Given the nylon cap design, you are right, you should take a look at the S390-24 with a stamp option of 2340.

Landlord from Eugene OR

Jan 17, 2019 2:01 pm

Part S390-24 was an exact match. Thank you

Bob from SWISCO

Jan 17, 2019 2:15 pm

Glad to help! If you need anything else just let us know.
