Seeking To Replace 32 3 DR Caldwell Channel Balances

A quick learner from Oakland CA says:
September 17, 2020
Hi there,

These are stamped as 32 3 DR CALDWELL.

Any suggested product(s)?

Thanks
Thumbnail of the uploaded file named C7FEEB56-30EE-41D6-AE9E-2FD1935AF9FF.jpeg
Thumbnail of the uploaded file named 76B7EE2B-7939-4C58-AA94-67AE06667F20.jpeg
Thumbnail of the uploaded file named 60B77733-769E-4171-BEBF-9D120F8B07DC.jpeg

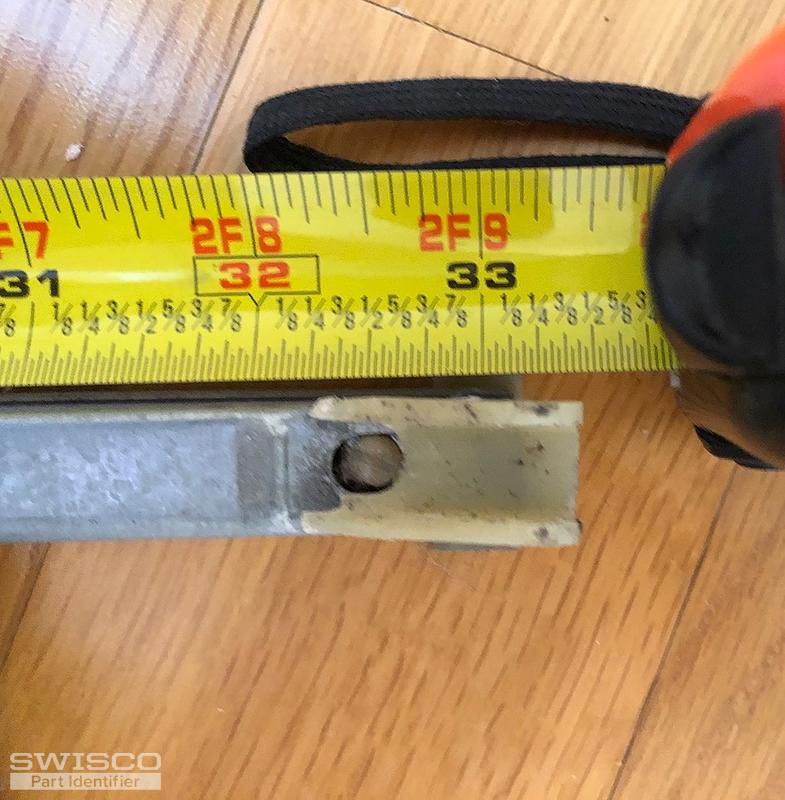

Thumbnail of the uploaded file named BACAAE87-5F53-4DE7-9988-51E5A961BDD6.jpeg
A quick learner from Oakland CA says:
September 17, 2020
Here's more photos. Bob has been a huge help to me in the past. Thank you!

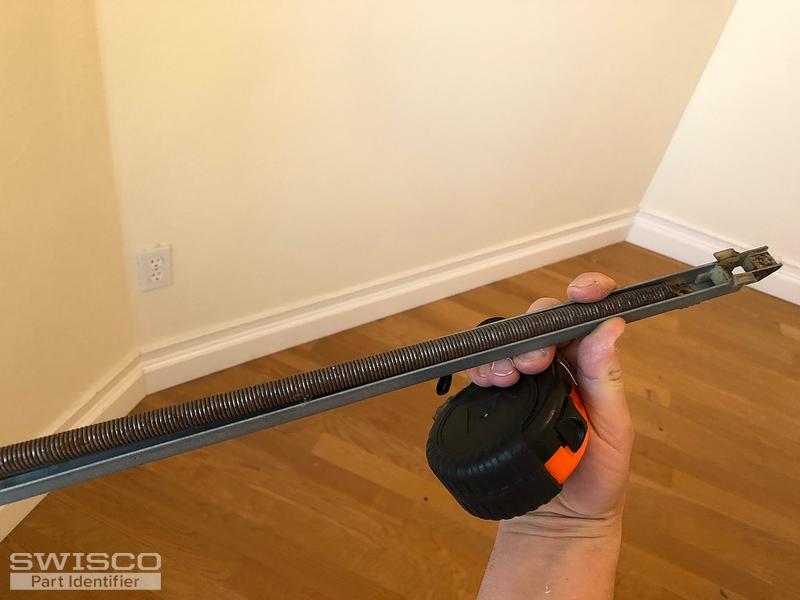

Thumbnail of the uploaded file named 62D9D7E1-091D-4B0A-BFB2-5A568001D436.jpeg

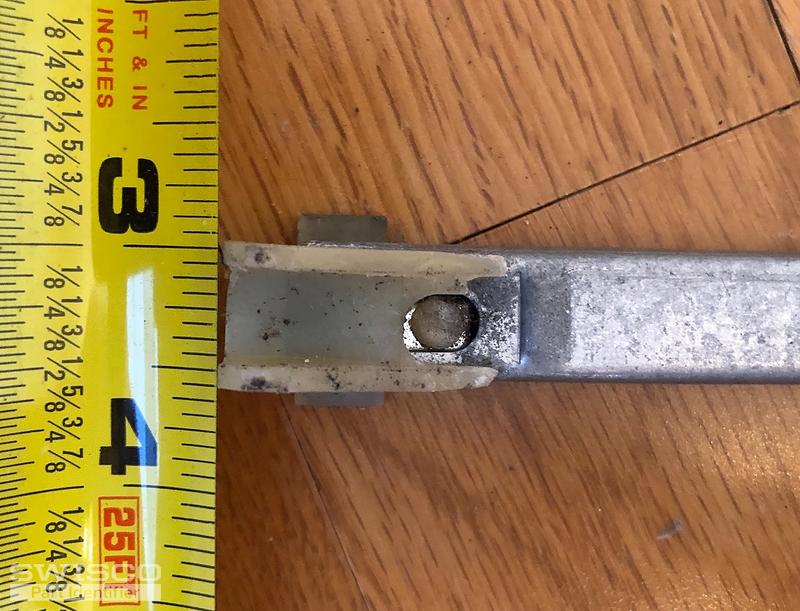

Thumbnail of the uploaded file named B19B40EE-436E-460A-864F-9869585A31C8.jpeg

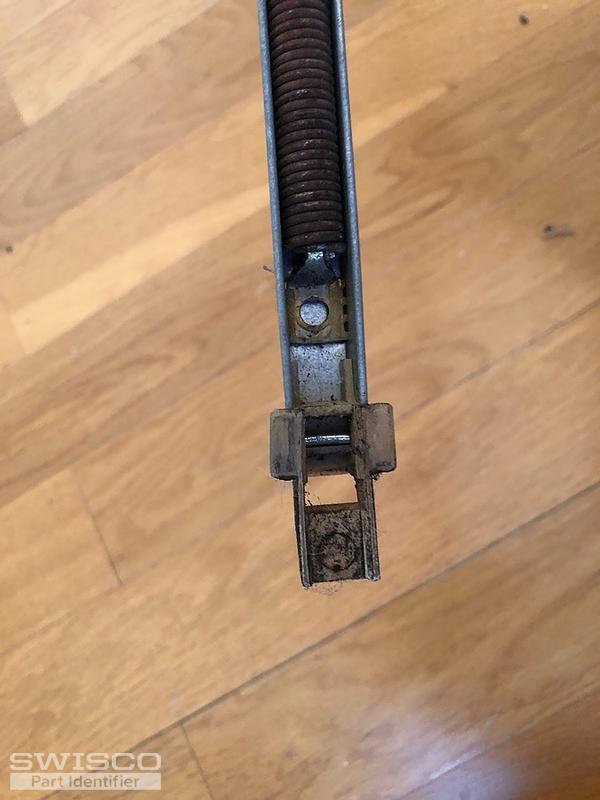

Thumbnail of the uploaded file named 65CB2F35-10A1-4D80-A0C1-F38567142E87.jpeg

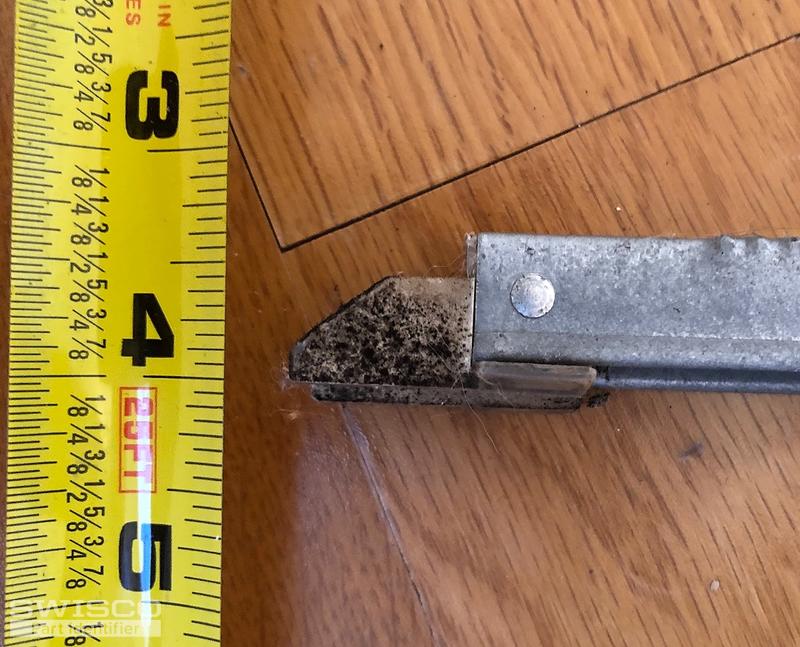

Thumbnail of the uploaded file named C229A504-4B28-4EB7-97D1-8F92FAA5B899.jpeg
Profile picture of Bob
Bob from SWISCO responded:
September 22, 2020

Thanks for the kind words! Glad I'm of assistance. This looks like an S385-33 or maybe an S380-33 to me. The difference lies in the bottom nylon shoe depth, or 'heel-to-toe' measurement. The Series 385 uses a shoe that is 1-3/32" deep, while the Series 380 shoe is just 1" deep. Based on your photos I'm leaning towards the Series 385, but it's best to confirm the measurement to be certain. In either event, you'll need a stamp option of 3230.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
33" Series 380 Channel Balance
33" Series 380 Channel Balance
S380-33
$11.52
33" Series 385 Channel Balance
33" Series 385 Channel Balance
S385-33
$11.52
