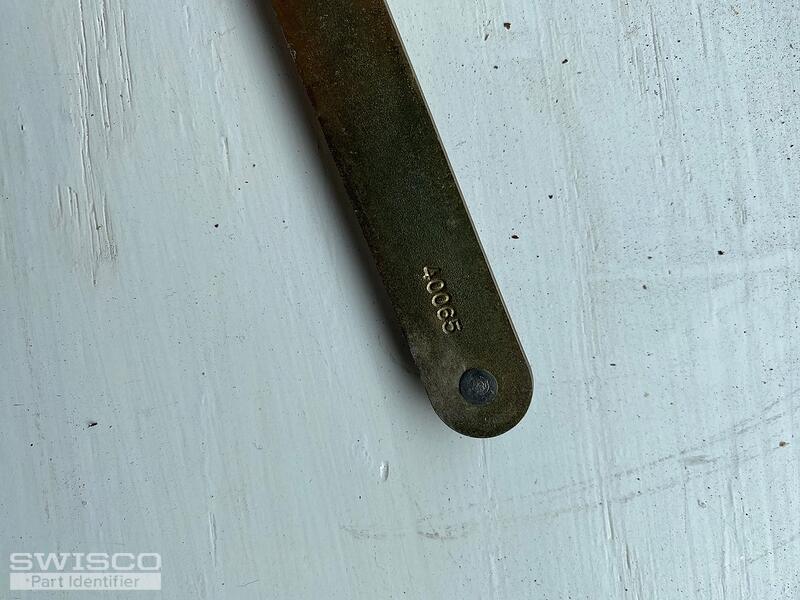

ID operator TRUTH 40065

Question

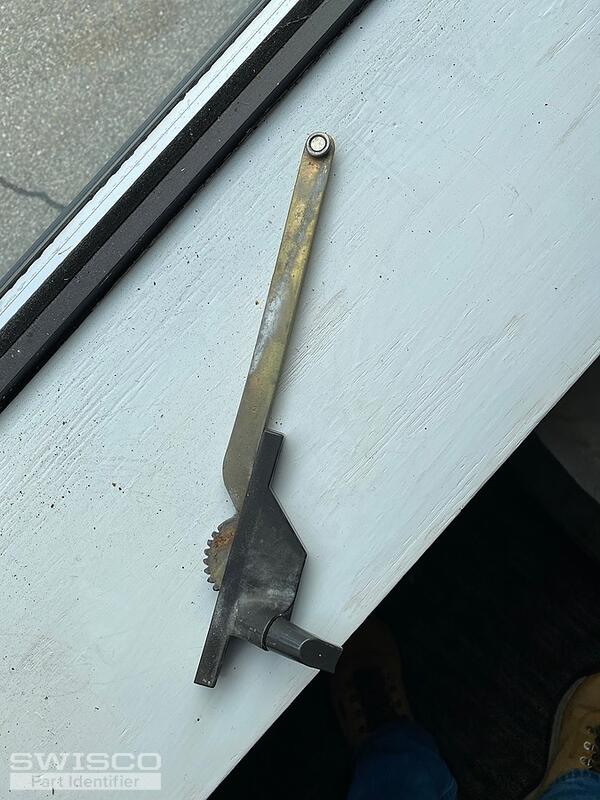

I have (7) commercial aluminum windows with most having disfunctional operators. The windows are from 1988. Seeking to replace all operators and need assistance in ID'ing.
I had ordered a 39-028E, 39-533 and 39-114L. Obviously the 39-028E is the wrong style.
Regards,
Tom

Dave Sr. · Accepted Answer

Hello,

We can't be sure without knowing the exact dimensions of your operator, but we offer the 39-139 with a 9-1/2" long arm. As for the track, these types of operators use either the face-mounted 39-520 or the undermount 39-504 track. Review the sp[ecifications below to see if this might be the replacement you need. Also, take a look at the related hardware and videos shown on this page.

Dimensions for 39-139

Alternate image for 39-520

Alternate image for 39-504

Alternate view of 39-504
