Semco casement handle for wood window : SWISCO.com

Home Owner from Ohio

Jul 29, 2024 12:27 pm

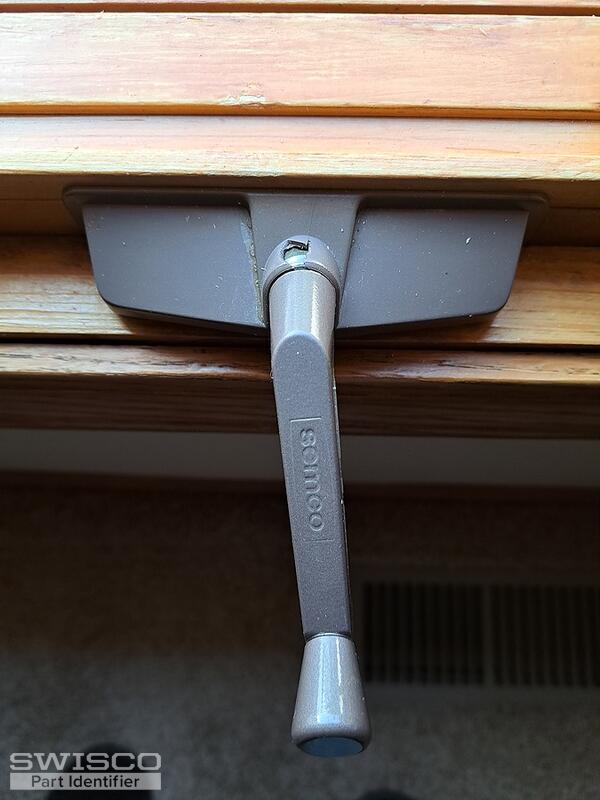

House was built in 1995. Semco casement wood window. Need a replacement handle assembly.

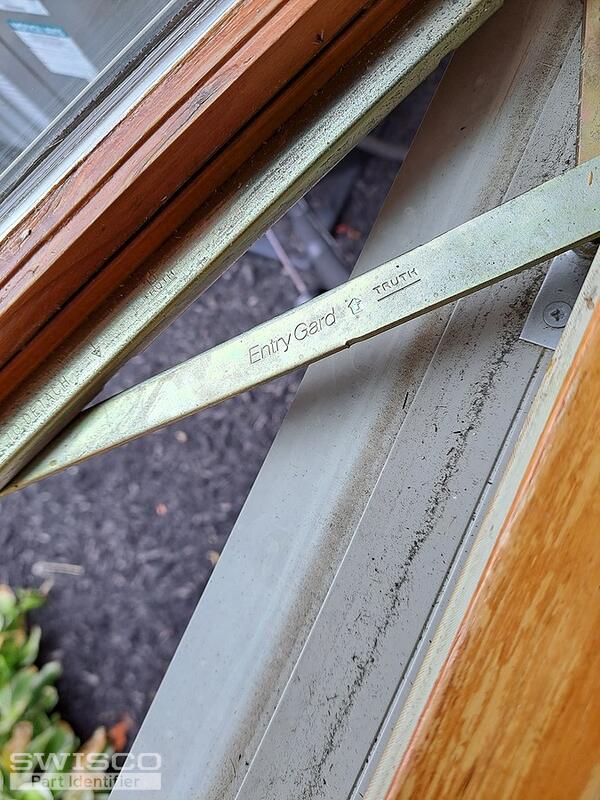

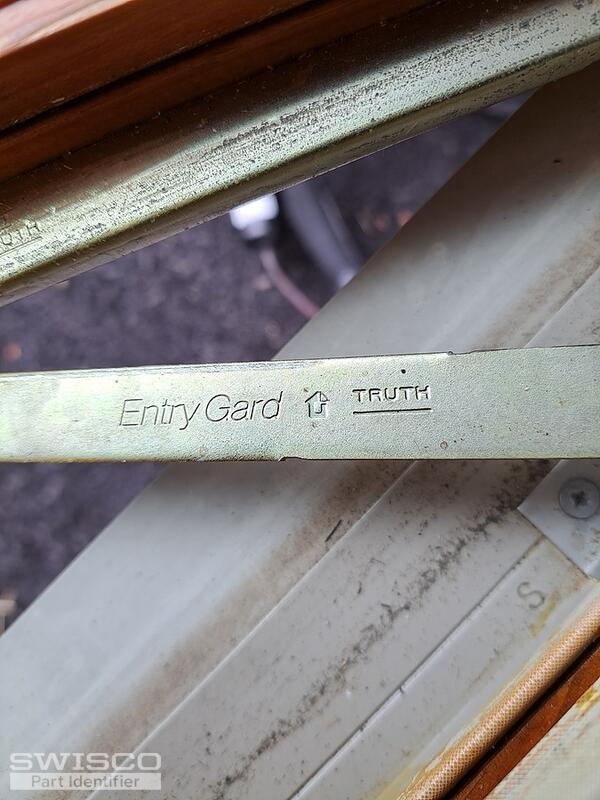

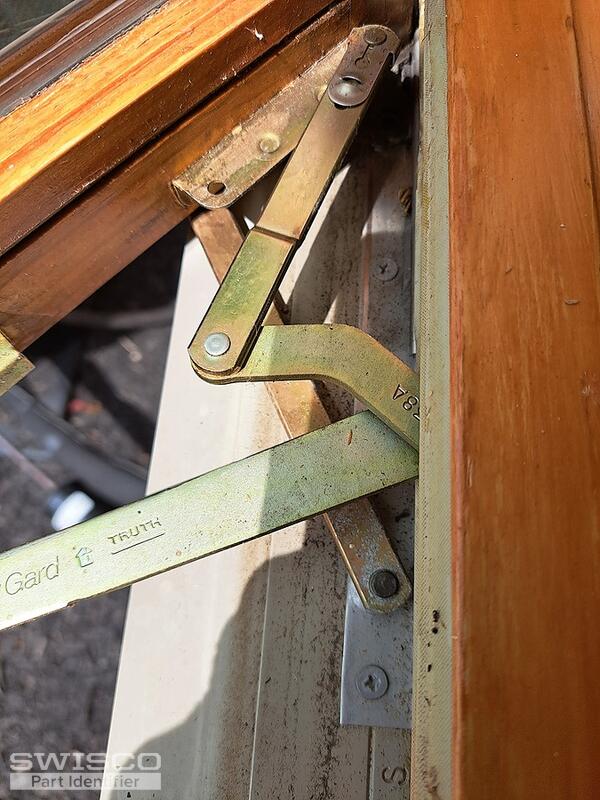

Entry Guard Truth on arm 30744. Lower arm reads 4558A.
Can you help identify what part I need?

5 user uploaded images

6 Replies

Casey from SWISCO

Jul 30, 2024 11:29 am

Hello,

Your photos resemble the 39-031 EntryGard operator. Review the dimensions below, paying close attention to the length of the shorter link arm. We also offer the 39-032 opposite-handed version of this assembly. Both parts use the 39-107FK handle and cover kit. Thanks for posting!

Dimensions for 39-031

Home Owner from Ohio

Jul 30, 2024 3:45 pm

So I need a 39-031 or 39-032?
When I face the window from inside the house the window swings open to the right (hinges are on right).

Casey from SWISCO

Jul 30, 2024 3:58 pm

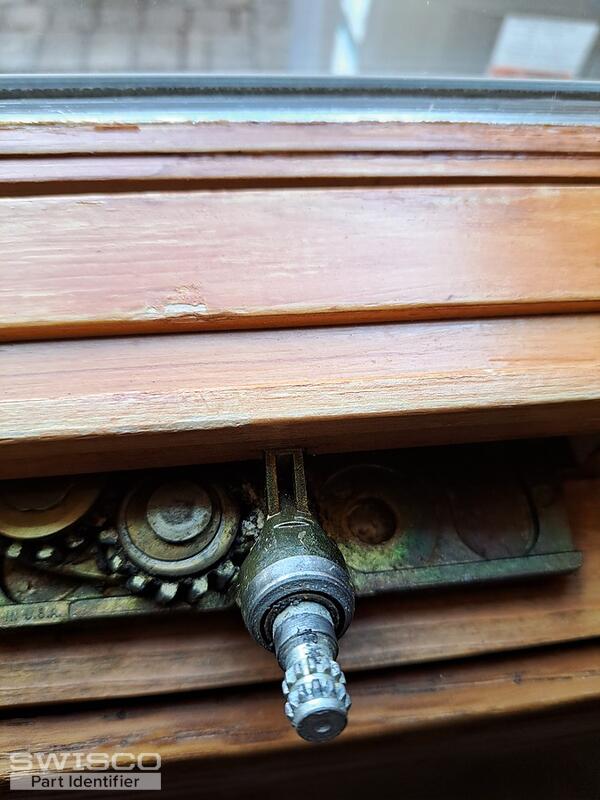

The handing of these operators is determined by the position of the gears on this base. Your assembly has the gears mounted on the left side, which matches the 39-031.

Home Owner from Ohio

Jul 30, 2024 5:42 pm

Do I also need ro replace the brackets that the arms are attached to or can I use my existing ones?

Thank you so much for all your help!

Casey from SWISCO

Jul 31, 2024 8:12 am

You should be able to reuse the original brackets as long as they're still in good condition. We do offer the 39-516 and 39-517 brackets if any of them do need to be replaced. Review the dimensions below compared to your bracket.

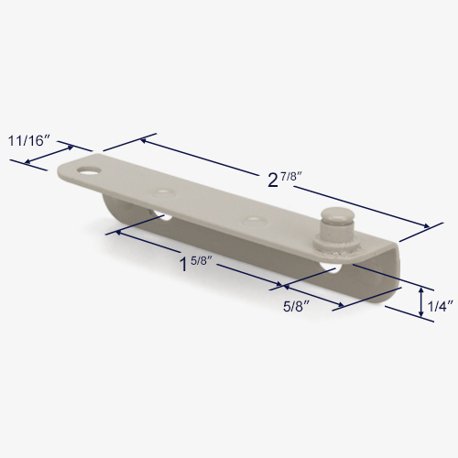

Dimensions for 39-516
