Series 370 Channel Balance

A quick learner from Cabot, AR 72023 says:

Please help me find the proper replacements. My old balance channel is 35" long (excluding plastic end pieces) and has the stamped number 3440. From your site info, I think I need a 15-002 shoe, but I don't find a picture of the correct top piece (although I see it in your info videos). See IMG_6650.

Also, I need the plastic guides for the tops of the window tracks. See IMG_6647.

Please provide me the correct replacement balance assembly part number and your pn for the window guides.

Thanks,

John

Thumbnail of the uploaded file named IMG_6647.jpeg
Thumbnail of the uploaded file named IMG_6650.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for posting, John. That top nylon fitting looks like our 19-002. Assuming you have the 15-002 shoe as well, that would make this our S351-35. See if you agree.

As for the top sash guide, it's tough to say. Would it be possible to see a photo of it removed? I'd like to see it from the front and side without any obstruction. Think of it like a mug shot. Thank you!

A quick learner from Cabot, AR 72023 says:
it looks like the 18-156.
Thumbnail of the uploaded file named F41C5390-2204-494A-9C2E-EF122268FAAC_1_105_c.jpeg

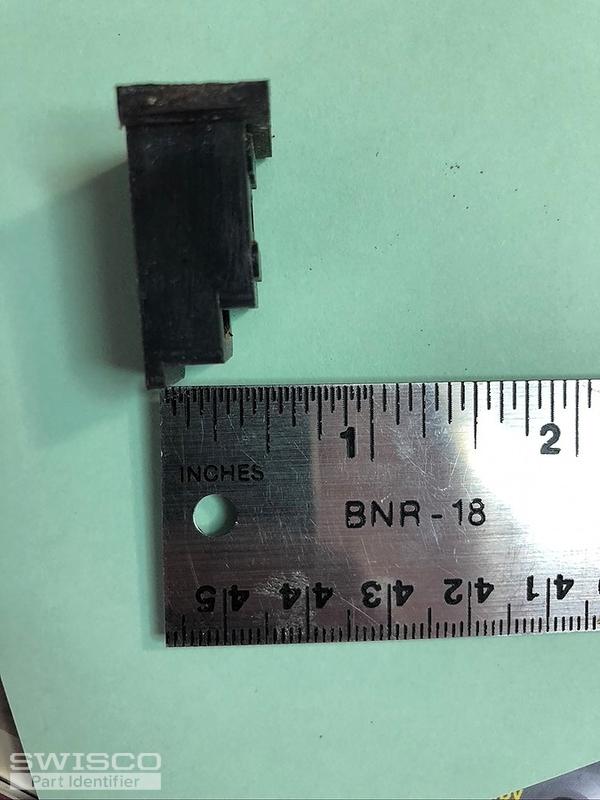

Thumbnail of the uploaded file named 9FF89B49-3EA0-4CA6-ABE5-BF33E08BC991_1_105_c.jpeg

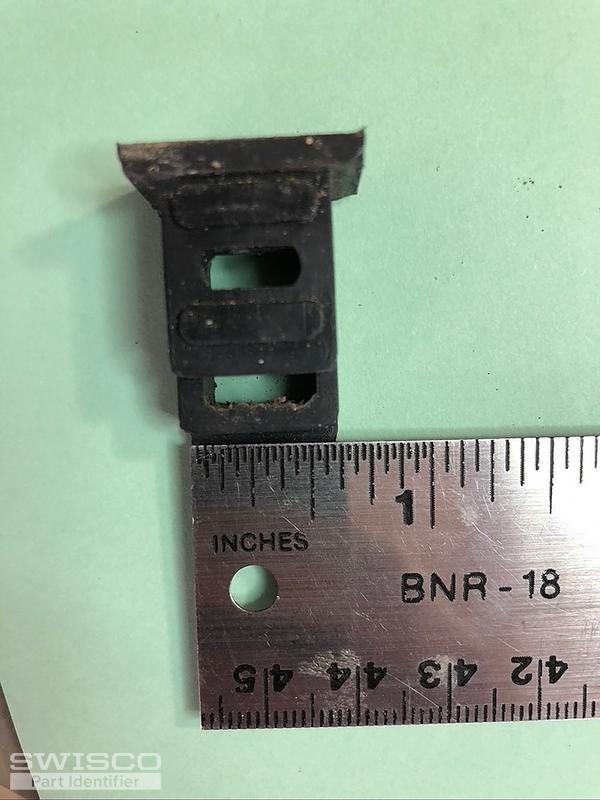

Thumbnail of the uploaded file named B6D7341C-9BD8-4010-85F2-5DAE5C096786_1_105_c.jpeg

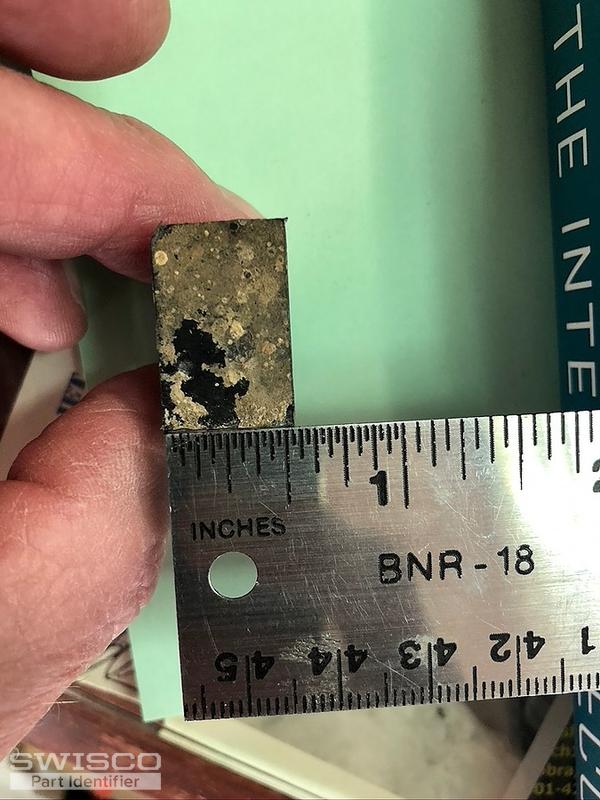

Thumbnail of the uploaded file named 1F188604-4AAD-42E8-89DB-A48C5FA25C23_1_105_c.jpeg

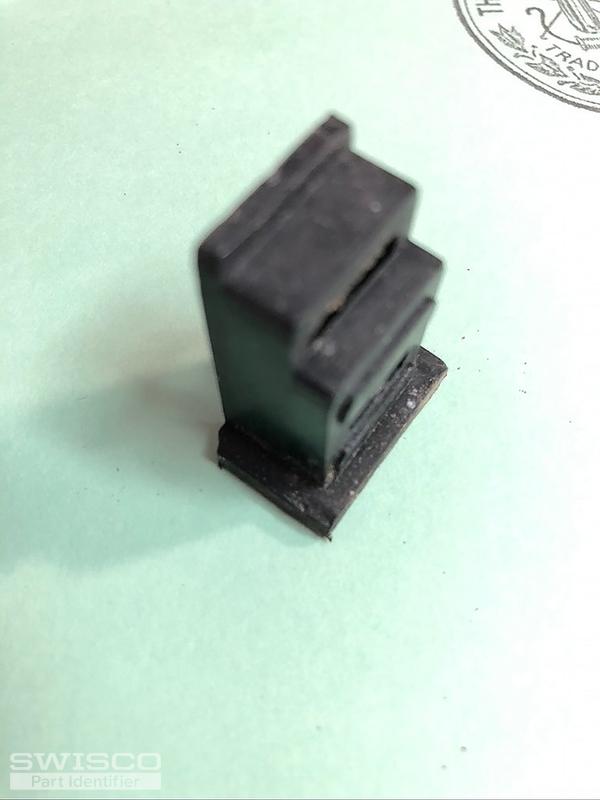

Thumbnail of the uploaded file named 72662263-1310-4AB8-9B03-28DF1BC35CD9_1_105_c.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Thanks for the additional photos. I do have to agree that your sash guide does in fact look like our 18-156. I would just carefully compare your measurements with ours to confirm this is match.
