Series 390 balance w/2190 stamp

Contractor from Sun City Center, FL.

Jan 18, 2017 3:27 pm

I have a customer with double pane vinyl windows that have 22" balances. the stamp on the current sash is 2190. I removed one of the sashes and it is 35#. Do you have an option that will work in this application?

4 Replies

Paul from SWISCO

Jan 23, 2017 12:27 pm

I would recommend the 2170 option, which we just added for you. This can carry a sash weight of 34 through 37 pounds.

Contractor from Sun City Center, FL.

Jan 25, 2017 4:34 pm

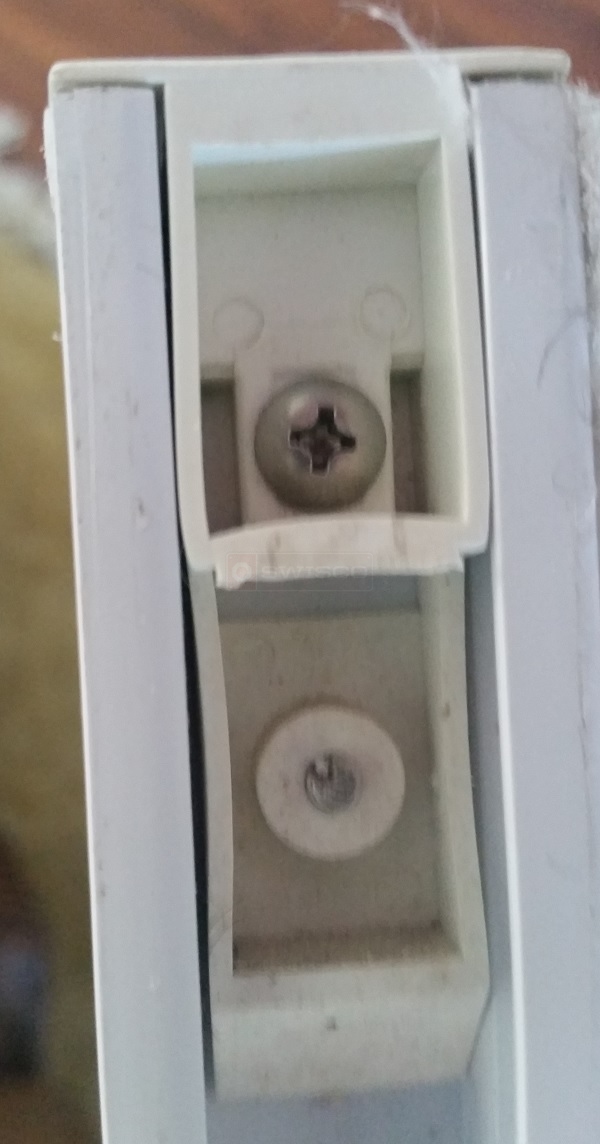

This is a pic of the the top sash guide in the same windows. Am I missing something or does the entire sash need to be disassembled to replace this part? It appears that the lower screw is installed from the inside of the frame.

Paul from SWISCO

Feb 2, 2017 8:56 am

The bottom screw head looks like it has broken off. Unscrew the top screw and slide a screw driver under the top sash guide and then try to pop it off. You can then use a pair of locking pliers to unscrew the broken screw stem. The top guide itself looks like the 18-179.
