Several Coil Balance needed

Question

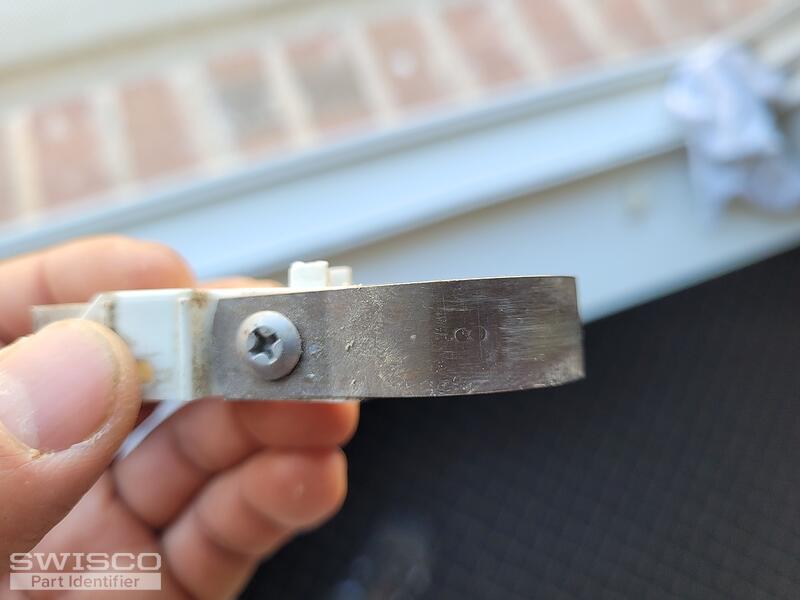

Hi, I need some coil balance complete set for my 5 windows, I  see on coil balance here shows "8" stamped print, is this the weight of each side of window? Please suggest me ASAP the right product parts I buy from your website here,  thanks!

Jasmine · Accepted Answer

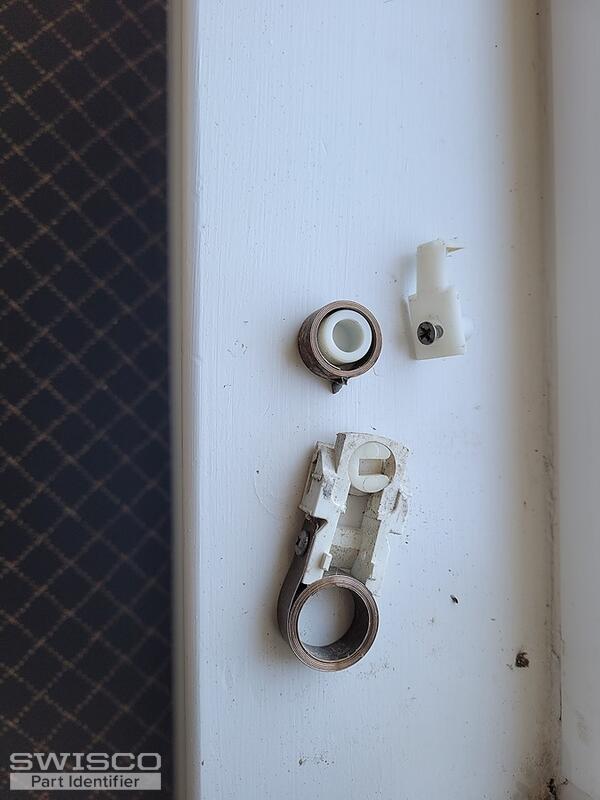

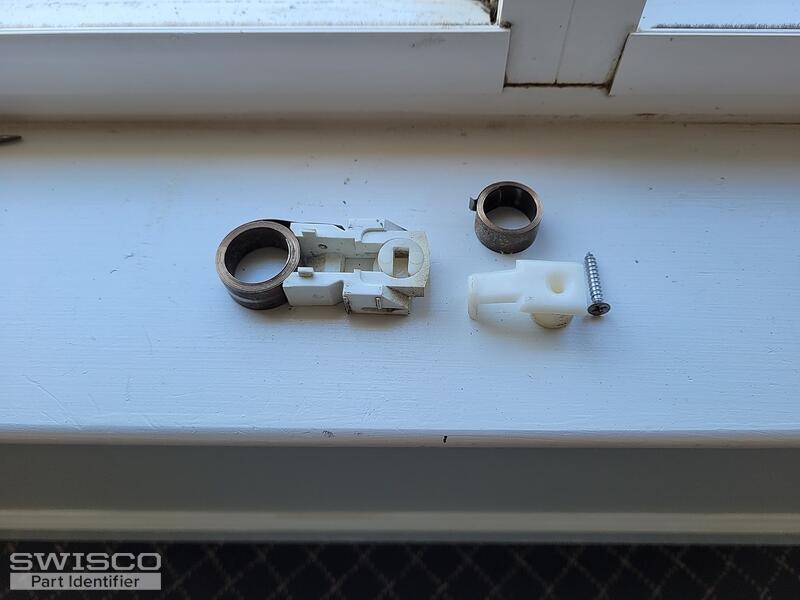

Thanks for reaching out! Your pivot shoe looks a lot like our 15-180. Carefully compare the measurements to confirm that this is the right fit. I am confident this is the replacement shoe you'll need.

Alternate image for 15-180

This shoe is compatible with the Series 190 Coil Spring and since yours is stamped with an 8, you'll need the S190-840. It also appears you have the 15-186 coil balance support and the 15-182 balance bushing. You might also need the 33-073 screw to secure the coil to the shoe.
