Several parts needed

Question

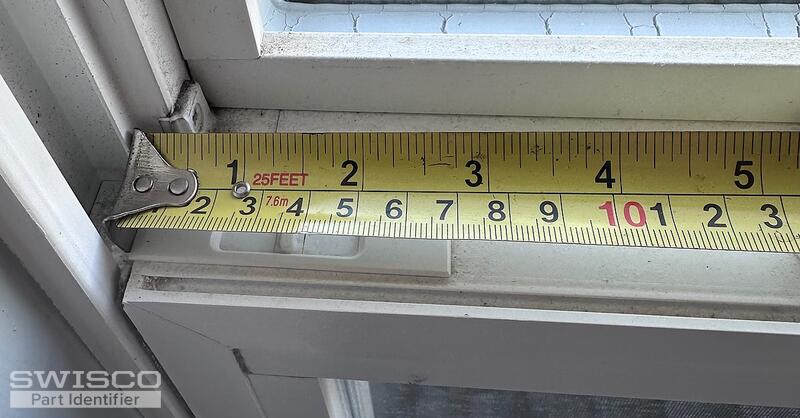

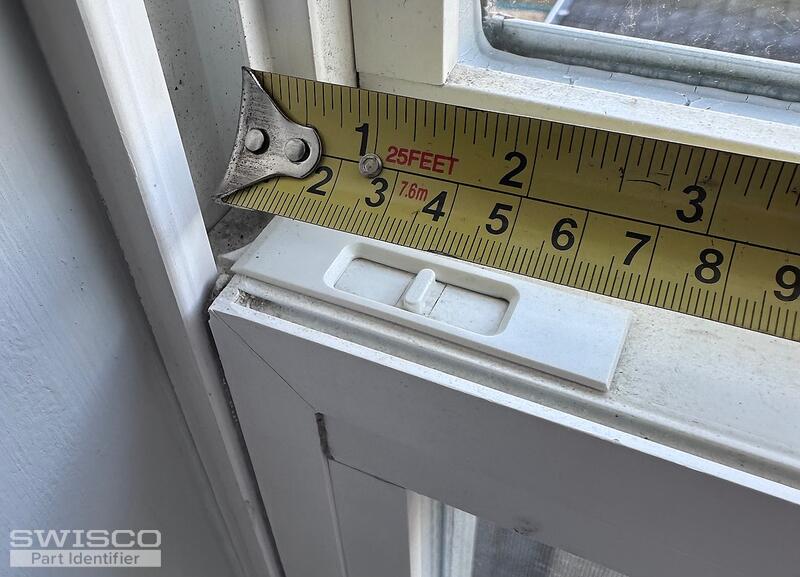

Hi, looking to replace these parts.  Spring number is 932.  Need the shoe, the top piece left and right, and the tilt pieces.  Thanks!

Lauren · Accepted Answer

Hello, thank you for posting,

Please review the 15-180 pivot shoe that is compatible with the Series 190 coil springs. For the "932" stamped spring, see the S190-940 coil. Together with the other side, the total sash weight should weigh 18 pounds.

For the tilt latches, please start by reviewing the style and dimensions of the 26-243 and 26-244. Compare the style of the latching tab to make sure it is the same style or it may interfere with the balance in the window channel.

Let us know if you have any additional questions!
