Shoe

Contractor from Baltimore, MD
My problem is the window won't stay up.

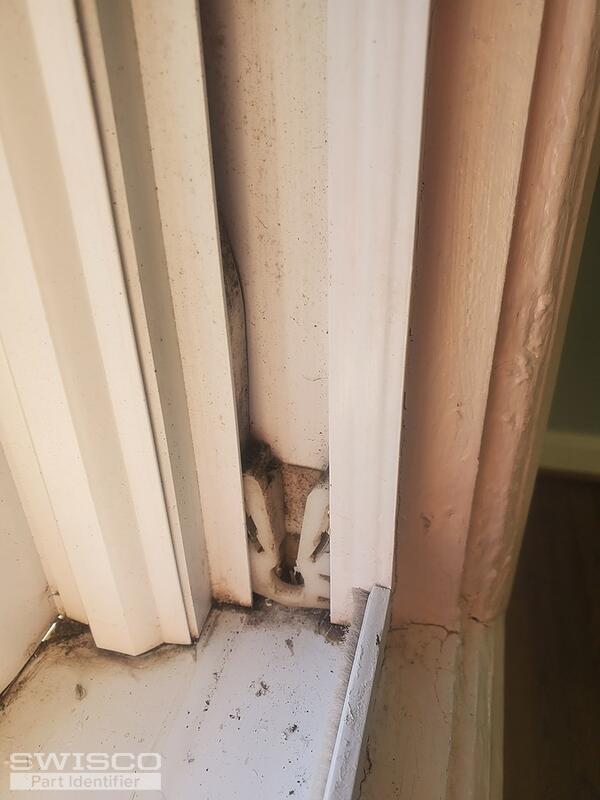

Some of my pivot bars are broken but they are doing the job for now. But in several windows, this shoe is broken.
I'm having trouble finding this part, seems older. This 1st time messing with window parts.
The cover over the coils say 5+4. If that could be explained that'd be great!
If I need to take piece out from window, I'll have to go back out to property. If I have to I can, it would be awesome if I didn't have to!!
My measurements of shoe are roughly 1.5in wide, about 1 5/8in tall, and about .5in depth. These measurements were taken with shoe in the channel. So depth is slightly smaller then .5in and width of 1.5in might be slightly smaller.
I didn't have a cutout on the sash and didn't want to disrupt anything yet.
4 user uploaded images
2 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. I believe this is an older version of the S140-09 9 pound Coil balance system. Please compare. The video below shows how to remove and replace these assemblies.
