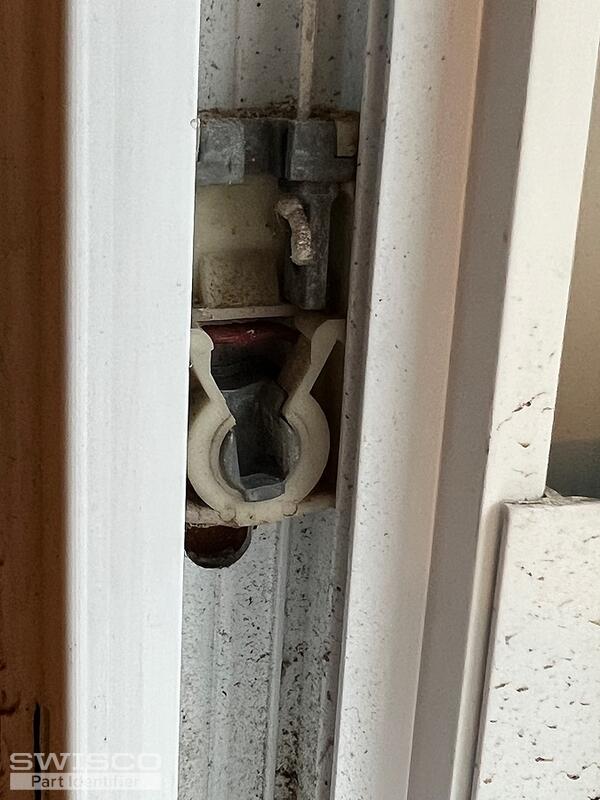

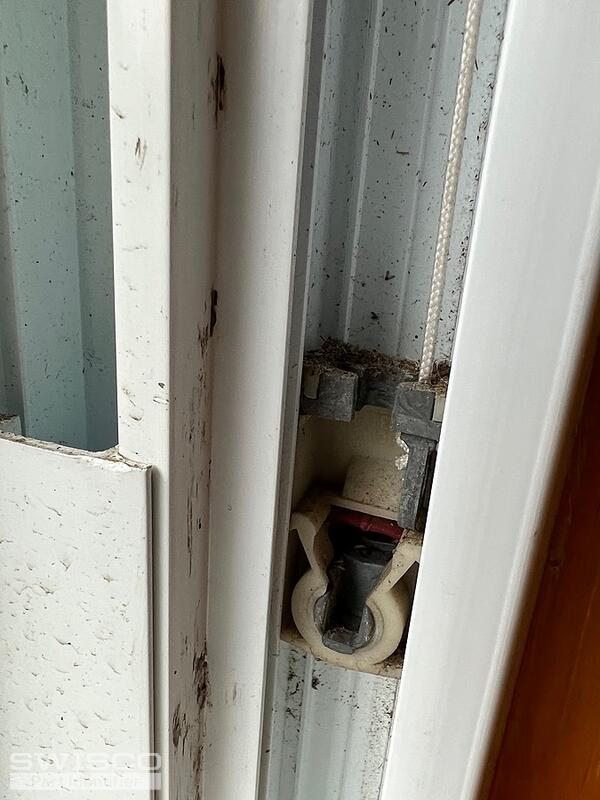

Shoe broken

A quick learner says:
26377 pivot bar fits right in this piece I need
Thumbnail of the uploaded file named 91D988E4-B0D9-434D-8300-0F7346D89EF0.jpeg
Thumbnail of the uploaded file named E73AE72F-4E2C-4CDD-9272-100B417A688C.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Hello! Your shoe looks similar to our 15-167 at first glance, but you should review our dimensions first to verify that everything lines up. If they don't, let me know how they differ and I can try to find something different for you.

Alternate image for 15-167
Alternate image for 15-167

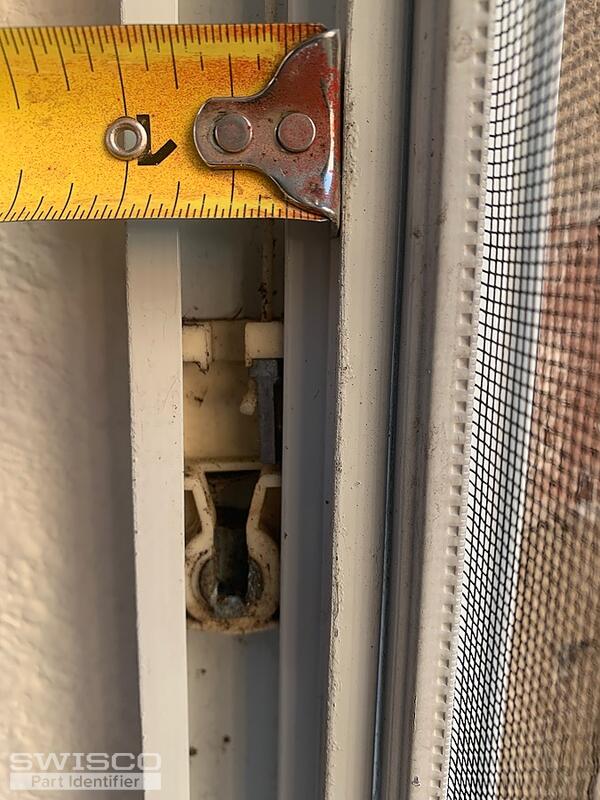

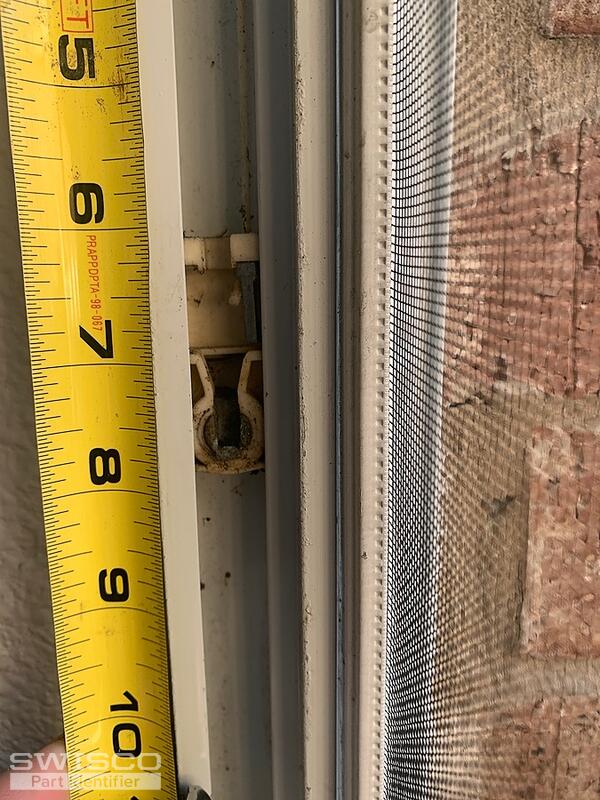

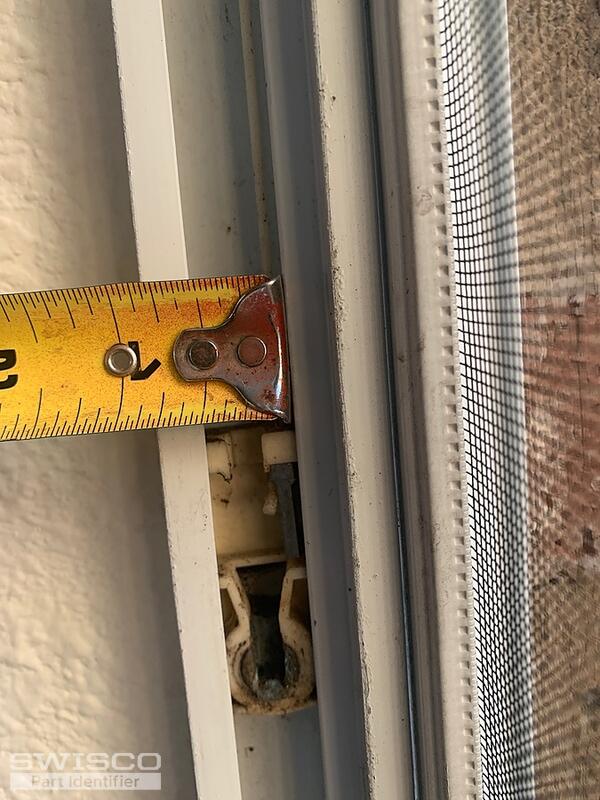

A quick learner from Plano says:

Hi Mr. Tom!

Could you tell me the pivot shoe 15-167 can be replaced with the old one of mine.

Thank you

Binh

Thumbnail of the uploaded file named F7C2CF7C-93D3-497E-AC92-0581C37C0CB0.jpeg
Thumbnail of the uploaded file named 06EF052E-C9E6-4DF4-B74D-570021E78258.jpeg
Thumbnail of the uploaded file named BACE7521-3BED-4B08-A907-D16038BB4F28.jpeg
Profile picture of Tom
Tom from SWISCO responded:

I'm afraid I cannot confirm if it can or not. It's not possible to determine precise size while the shoe is still in the frame. Your next step should be to remove the shoe, measure it as precisely as you can, and refer to the dimensions I posted above to verify that they match.

If they do, then it will work. If they don't, then tell me how they differ and I can recommend something else.

Note that overall height doesn't really matter in this case. Width and thickness are vital, however.
