Shoe for Spiral Balance

A quick learner from North Liberty, IA says:
April 8, 2016
I am looking for a show comparable to the picture attached.

I am using a 3/8" spiral balance. The dimensions of item #15-045 is identically to what I need but the pivot pin housing is different and the 15-405 style wont work with my pivot pins on the windows.

Any help is greatly appreciated.

Thanks

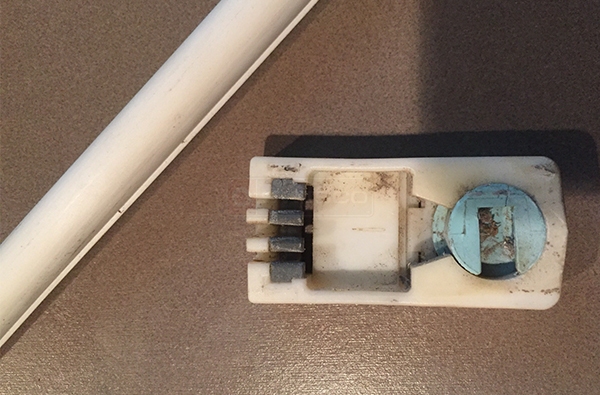

User submitted a photo of a pivot shoe.
Profile picture of Paul
Paul from SWISCO responded:
April 11, 2016
Your shoe looks like an old discontinued part. The manufacturer makes our 15-134 to replace it. Do you think this would be a better match? You would also need the 26-297 pivot bar.
Pivot Lock Shoe, 3/8" Thick
Pivot Lock Shoe, 3/8" Thick
15-134
$2.79
Pivot Bar, 2 1/4"
Pivot Bar, 2 1/4"
26-297
$1.45
Pivot Shoe, 3/8" Thick
Pivot Shoe, 3/8" Thick
15-045
$1.85
