Shoe pivot for Florida Extruders window
Home Owner from Orlando, FL
Apr 2, 2025 7:31 am

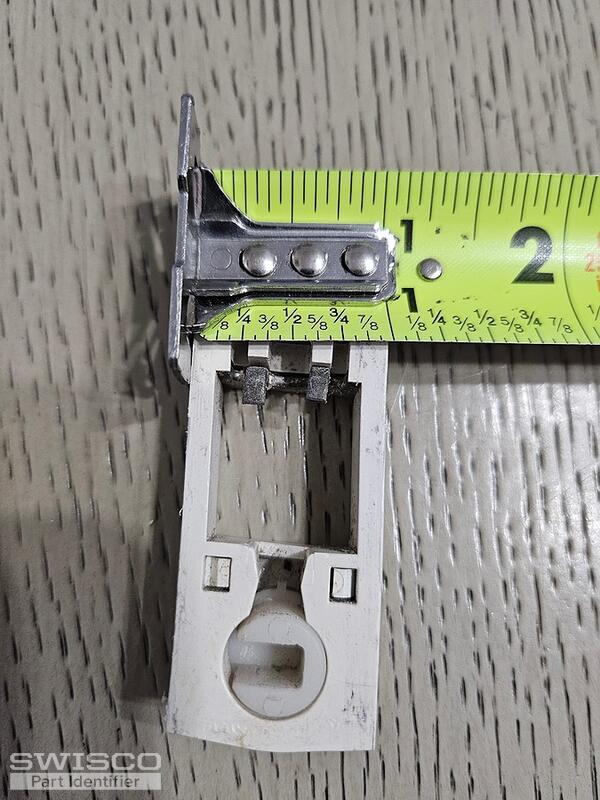

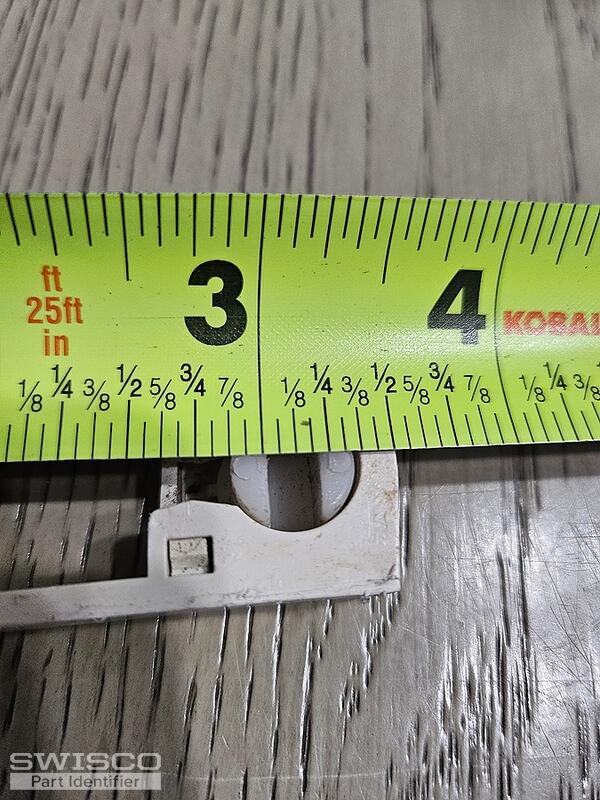

Need replacement part# for this shoe pivot.
5 user uploaded images
4 Replies
Bob from SWISCO
Apr 2, 2025 3:51 pm
Hello there. I am confident we can help, but to be safe, I'd like to see the pivot bar that fits into the cam of that pivot shoe. This will help narrow down your replacement options. Many thanks.
Home Owner from Orlando, FL
Apr 2, 2025 4:19 pm

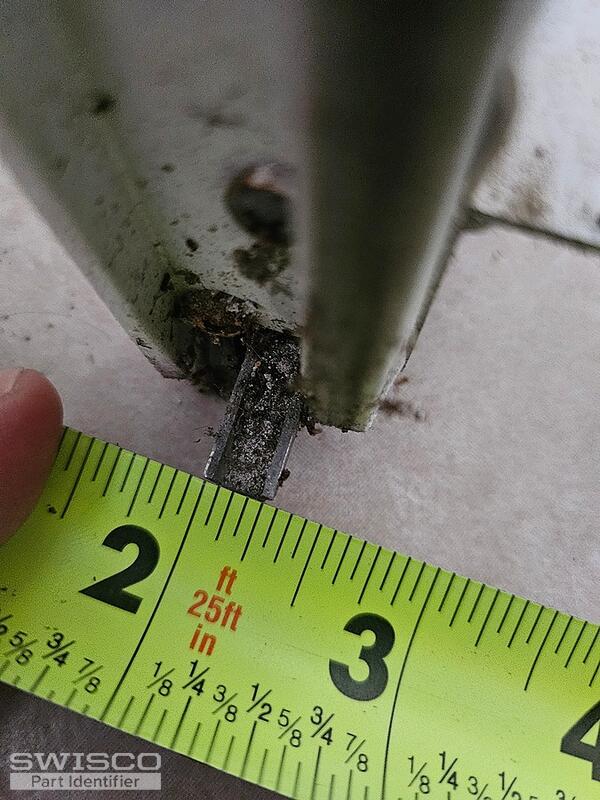

Attached is a picture of the pivot bar
Although it's not really clear in the picture, the width was 1/4".
1 user uploaded image
Bob from SWISCO
Apr 3, 2025 3:57 pm
Perfect, thanks. Based on the pivot bar, you should be able to use the 15-173 Pivot Shoe as a replacement. Past customers with your shoe and this pivot bar have been able to do that. Just double-check that the width and thickness of the old shoe match what is shown below.
Dimensions for 15-173
