Pivot Shoe ID

A quick learner from Long Island NY says:
June 7, 2019
Looking to replace the pivot locks on the windows the home I board I'm not sure what company they are aluminum windows see the attached pictures.
I placed an order (1126440)for the 15-047 and the 15-154. The blue pivot lock was just a little too loose in the channel and the black one the lock was too big.

It is 1 1/4 wide looks like 9/16 thick please advise

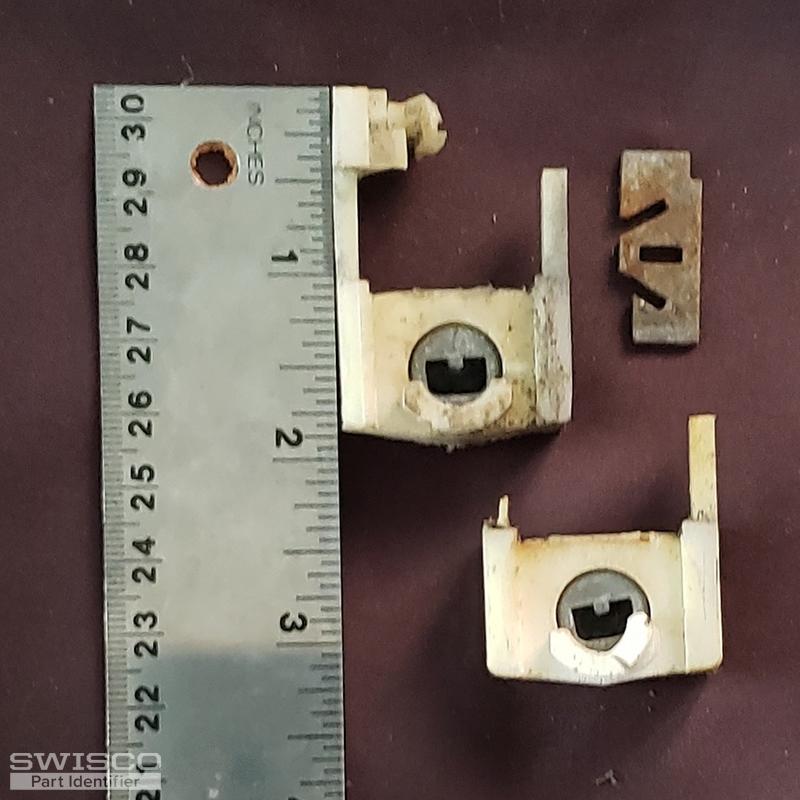

Thumbnail of the uploaded file named BadSec 1.jpg

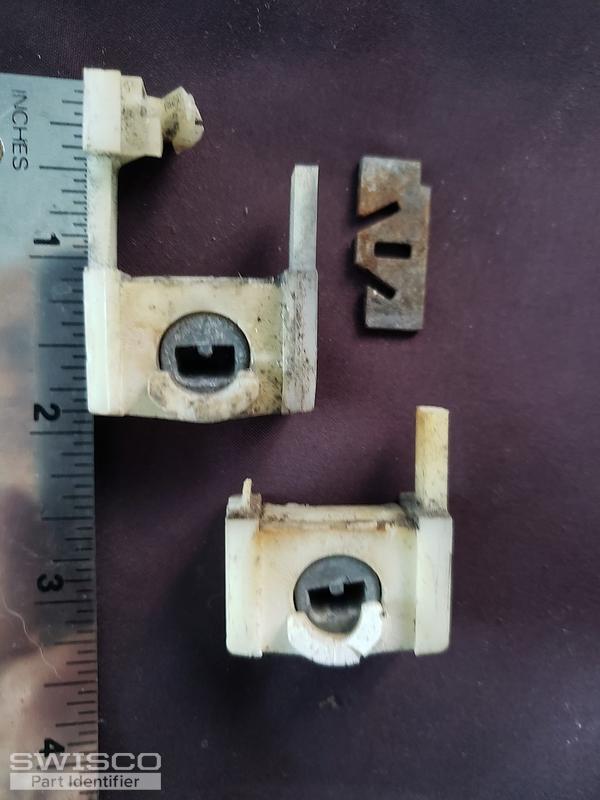

Thumbnail of the uploaded file named BadSec 2.jpg

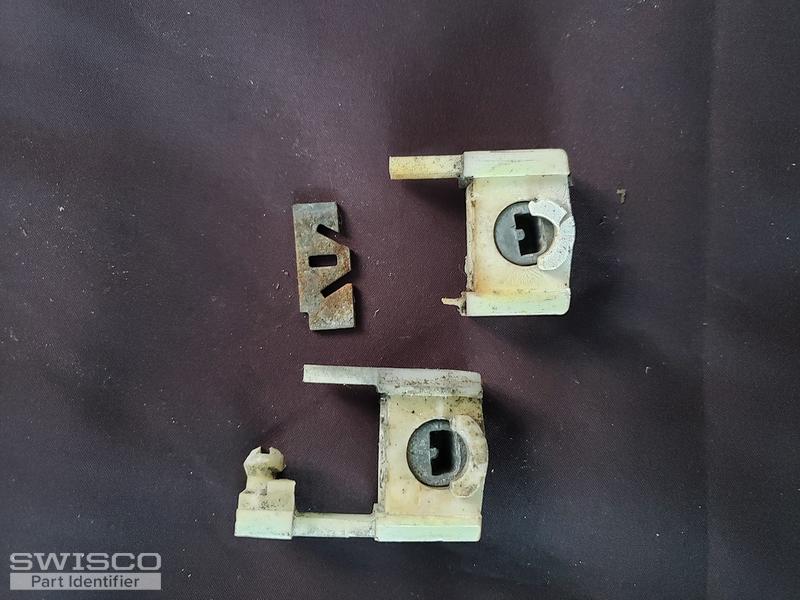

Thumbnail of the uploaded file named BadSec 3.jpg
Profile picture of Bob
Bob from SWISCO responded:
June 7, 2019

Thanks for writing in. Sorry to hear these pivot shoes didn't work out for you. See the 15-118. This is more closely related, design wise, to the 15-047 than the 15-154 is. It also is 9/16" thick and 1-1/4" wide. I suspect this would sit more securely in your window track, but look it over and let me know what you think.
A quick learner from Long Island NY says:
June 11, 2019
How can I return the unused locks I purchased
Profile picture of Casey
Casey from SWISCO responded:
June 11, 2019

Hi there, I just emailed you over return instructions. Let me know if you have any additional questions.
A quick learner from ny says:
June 27, 2019
The item 15-118 is no good the cam is too big, I need to return, I need one that fits the 3inch pivot bar
Profile picture of Bob
Bob from SWISCO responded:
July 2, 2019

Hm. Sorry to hear the 15-118 didn't work out for you. Could you show us a picture of your old pivot bar, preferably out of the window? That might clue us in as to why the 15-118 didn't work out for you. Many thanks.
A home owner from 53207 says:
August 27, 2019
The pivot shoe I have is only 1 3/4 long. Will the 2 inch work, or should I buy two (2) and replace the other side also. This is a 35+ year old Season- All tilt out double hung window.
Profile picture of Tom
Tom from SWISCO responded:
August 27, 2019

When it comes to pivot shoes, the overall height doesn't matter. You have plenty of room in the track for pretty much any height. What matters most is thickness and width.
