Shower door rail

Home Owner from USA
Oct 18, 2022 8:07 am
Dear Sirs

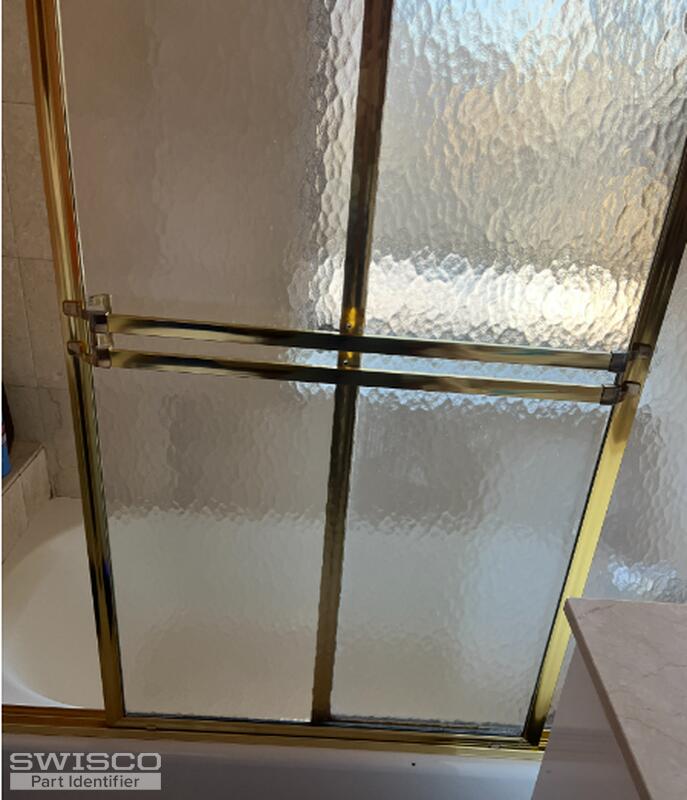

> after our tel conversation I am sending you the picture of the shower door rail.
> My tub has two sliding doors.

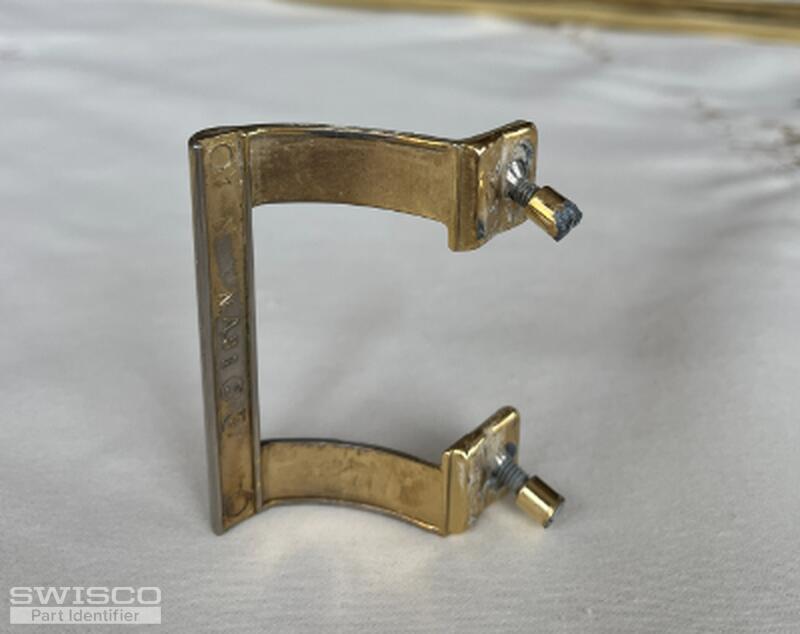

> The other picture is of the one that broke where the screws attach to the frame. It is on the other side of the sliding shower door.
> Could you please check if you have in stock the same rail so that I can order it?
> Thank you, awaiting your reply

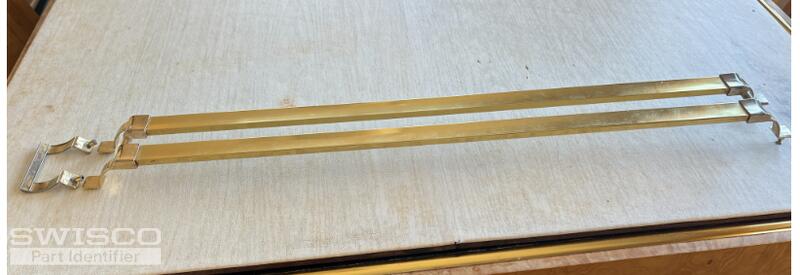

Attached is a closer photo of the part needed.
The dimension is from screw to screw is inch 2'1
Hope that helps

I remesured it is 2 inches from screw to screw
Viviane Shower Pull #1 Viviane Shower Pull #1 Viviane Shower Pull #3 D271007 Viviane Shower Pull #4 D271007
4 user uploaded images
3 Replies
+ Add a Comment
Tom
Tom from SWISCO
Oct 24, 2022 10:10 am
SWISCO
EXPERT

This looks like a towel bar insert. We unfortunately don't sell one that matches what you show here, but we do sell two similar styles: the 10-133, which has a 2-1/4" hole spacing, and the 10-138, which has a 2-1/16" hole spacing.

The issue here is that both of these products are designed to be on the towel-holding end, while the one you need appears to be on the opposite side. We just don't have anything like that, unfortunately. You may still be able to use one of these products, depending on size, but look them over and see what you think.

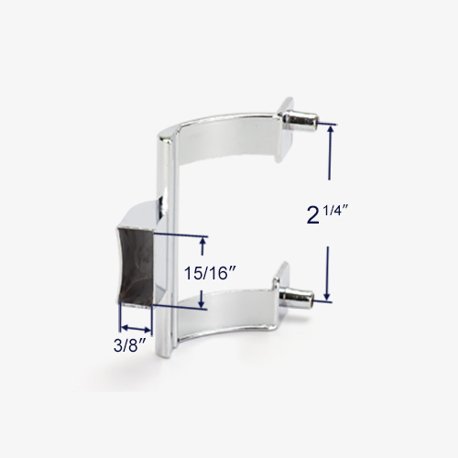

Detail of 10-133
Detail of 10-133

Alternate view of 10-138
Alternate view of 10-138

Home Owner from USA
Oct 24, 2022 7:51 pm
Ok. So if if there are no parts for the towel bar, could I only order a door handle in polished brass? To be able to operate the door from inside of the shower?
If so, please advise which part to order.
Thank you for your help.
Tom
Tom from SWISCO
Oct 25, 2022 8:48 am
SWISCO
EXPERT

Sure, we sell a few different shower door handle sets that lack the towel bar functionality. They are basically just finger pulls.

The only one we sell in brass would be our 10-136, which has a 2-1/4" hole center spacing. That's a little larger than yours. We also sell the 10-126, which has the same hole center spacing at 2", but it's not available in brass. The manufacturer stopped making the brass finish for this size back in 2017, unfortunately.

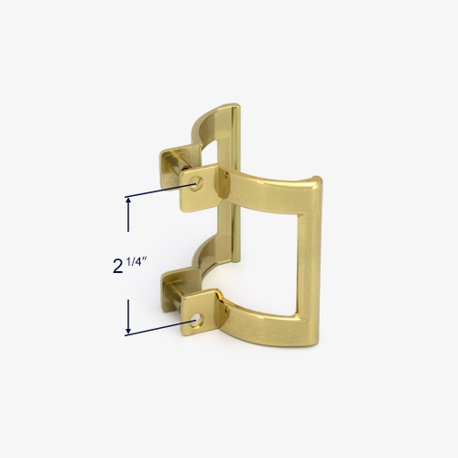

Alternate image for 10-136
Alternate image for 10-136

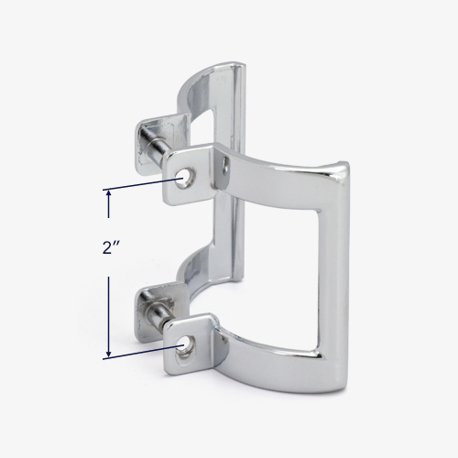

Detail of 10-126
Detail of 10-126

+ Add a Comment
Products and resources found in this discussion
Door Handle With Towel Bar Insert, 2-1/4"
Door Handle With Towel Bar Insert, 2-1/4"
10-133
$14.14
Door Handle With Towel Bar Insert, 2-1/16"
Door Handle With Towel Bar Insert, 2-1/16"
10-138
$7.97
Chrome Finish Shower Door Handle Set, 2"
Chrome Finish Shower Door Handle Set, 2"
10-126
$13.45
2-1/4" Brass Finish Shower Door Pull Handle Set
2-1/4" Brass Finish Shower Door Pull Handle Set
10-136
$13.15
