Side hinge

Quick Learner from Mn
Oct 1, 2024 1:32 pm

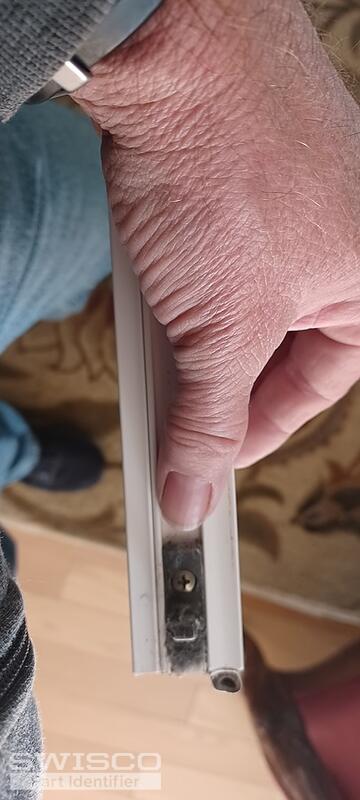

I need these
4 user uploaded images
3 Replies

Quick Learner from Mn
Oct 1, 2024 4:15 pm
The base is 31/64 wide, 1 3/64 long, screw is at 33/64 from hinge end, 15/32 from other end.
The hinge is 37/64 tall. 10/64 wide toward tip, the side is 19/64. The shaft is 21/64 tall between base lip and lip of the tip.
The hinge is 37/64 tall. 10/64 wide toward tip, the side is 19/64. The shaft is 21/64 tall between base lip and lip of the tip.

Emily from SWISCO
Oct 3, 2024 2:38 pm


Hey there!
Thank you for reaching out to us. We don't sell a 1:1 match for this pivot bar. The 26-374 and 26-402 appear to be our best options though we can't promise they'll work for you. Take a look at the specifications and see what you think.

Side view of 26-374

Detail of 26-374

Alternate image for 26-402

Alternate view of 26-402
