Side view of the lever lock

Quick Learner from tx
how does the lock lever work with the 82-035 - the product picture does not show a side view of the inside handle
2 Replies
Paul
Paul from SWISCO
SWISCO
Expert

The stem of the lock lever goes in the interior locking mechanism like our 82-218 mortise lock.

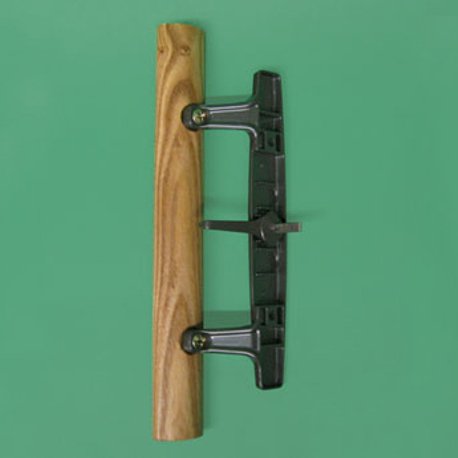

Here is an image of the interior handle with the lever in position.

Alternate view of the inside handle of the 82-035 patio glass door set.
Alternate view of the inside handle of the 82-035 patio glass door set.

This image shows the lever loose.
