Signature Casement Window seals

Home Owner from New York

Aug 8, 2020 12:44 pm

we have Signature Casement windows in the kitchen. Last year a window repair company fixed the glass on one side and replaced the seals. I need to replace seals on the other side. I have a channel the seals slide into. Attached are photos I hope will help identify the product to fix it.

3 user uploaded images

4 Replies

Tom from SWISCO

Aug 12, 2020 1:35 pm

These photos don't tell me what seal you have, unfortunately. I will need you to remove a sample of each seal you need to replace and show me a clear picture of their end profiles. The video below will clarify what I mean.

Home Owner from New York

Sep 7, 2020 2:41 pm

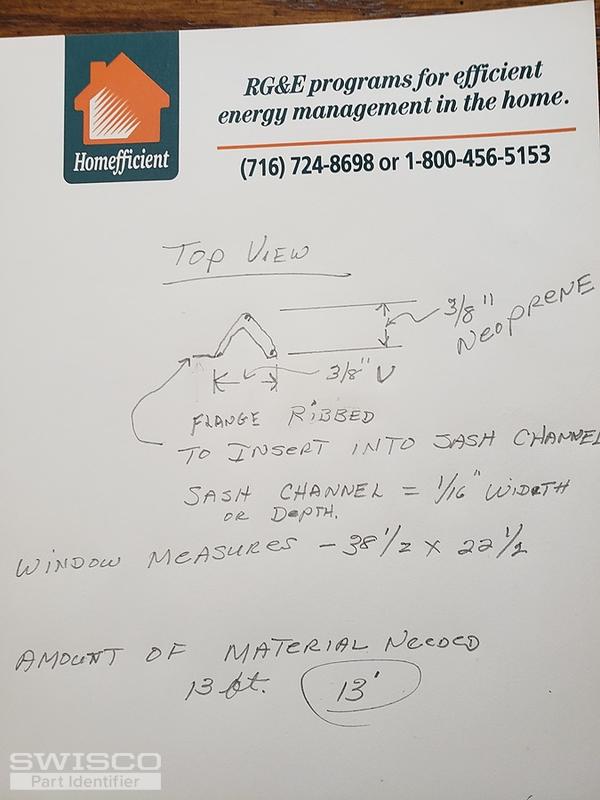

Tom, here are more clear photos of this casement window seal. 3/16ths inch base to slide into the window channel. 3/8" V-Groove seal. The thickness of the sponge filler underneath the neoprene covering if 1/16". Originally, I had tried to use neoprene seals that would go to a steel entry door seal, but the window would not close with those in. I've attached a more visual/descriptive group of photos to review.

Please advise as soon as you can.

Thank you,

Lindsay

4 user uploaded images

Tom from SWISCO

Sep 8, 2020 9:05 am

Thanks, Lindsay. We don't have any window weatherseal that matches your photos, but our 58-053 works under the same principles. Look this over and see if you could use this as a substitute.
