Silver Line Double Hung Tilt Windows

Question

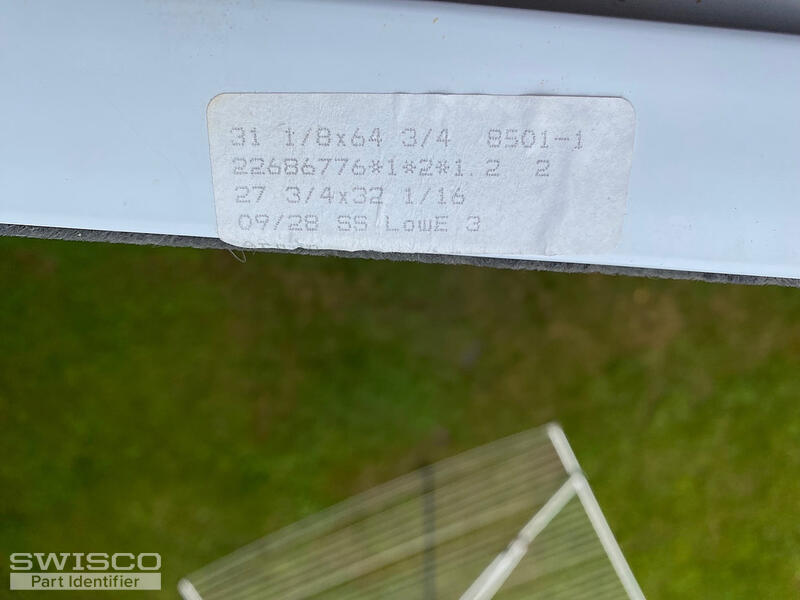

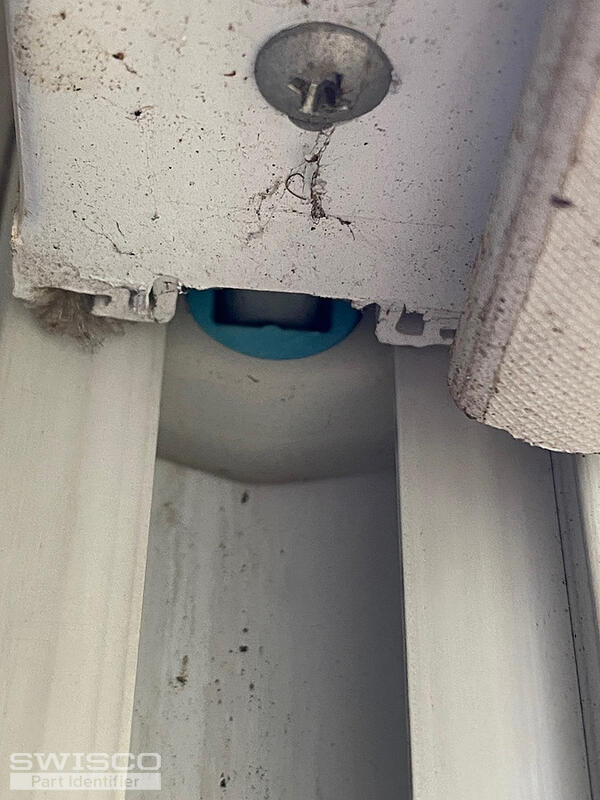

Hello, I think the coil balance has broken on one window. The picture is from the one out 3 that works still. The other info I found is as foloows: 8501 31 1/8x 64 3/4. Argon Half Sc..SillAngle Table2 HeadExponder LowE3 White 22686776.1.2. Silver Line. The coil holder has a blue part in white as shown in pic. If you do have the parts needed we are looking at ordering replacements for all 3 windows both sides. Also the tools to expand the plastic frames as their are not cut and we don't have covers for the sides.
Hope you can help out and that you have the info needed from me. Thank you.

Casey · Accepted Answer

Hello,

I can't be sure of what you need with the original hardware still installed but the 15-087 housing pivot would be a good place to start. This assembly uses the Series 180 coil springs and 16-031 mounting bracket, sold separately. We also offer the 15-086 tandem housing if needed. Review the specifications to confirm if they match your original coil balance. Thanks for posting!

Detail of 15-087

Series 180 coil balance diagram
