Window Crank Replacement/Silver Line

Home Owner from Powell, OH
Jan 30, 2024 7:10 am
Looking to discuss options with you. Not sure what replacement parts are option but he crank has never stayed intact in opening with allen set screw. Would like replacement that folds in or is a T-Bar. Need whatever in white.

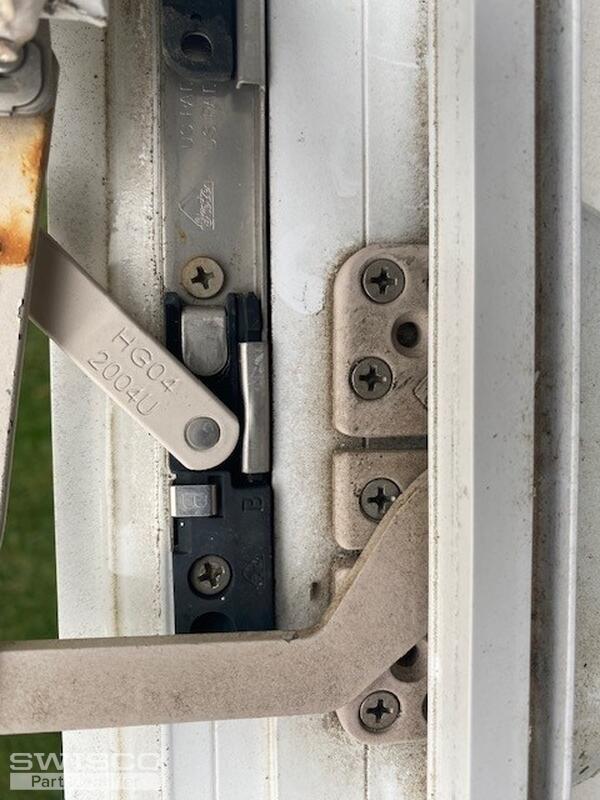

Window crank Window crank insert slot that has trouble holding Window crank and outside mechanism Window crank outside mechanism
4 user uploaded images
1 Replies
+ Add a Comment
Jasmine
Jasmine from SWISCO
Jan 30, 2024 2:33 pm
SWISCO
EXPERT

Hello,

Thanks for reaching out! Your exact casement operator is no longer made but it can be replaced with the 39-329 LH Inverted Split Arm ROTO Operator. The opposite handed version is part 39-330. Carefully review and compare the dimensions to confirm that this will be a fit for your existing operator.

The compatible handle is the 39-232 Roto Folding Crank Handle. You may also need the 39-553 Roto Sash Bracket. The opposite side would use the 39-554.

Alternate image for 39-329
Alternate image for 39-329

Side profile view with measurements
Side profile view with measurements

+ Add a Comment
