Silver Line replacement parts

Quick Learner

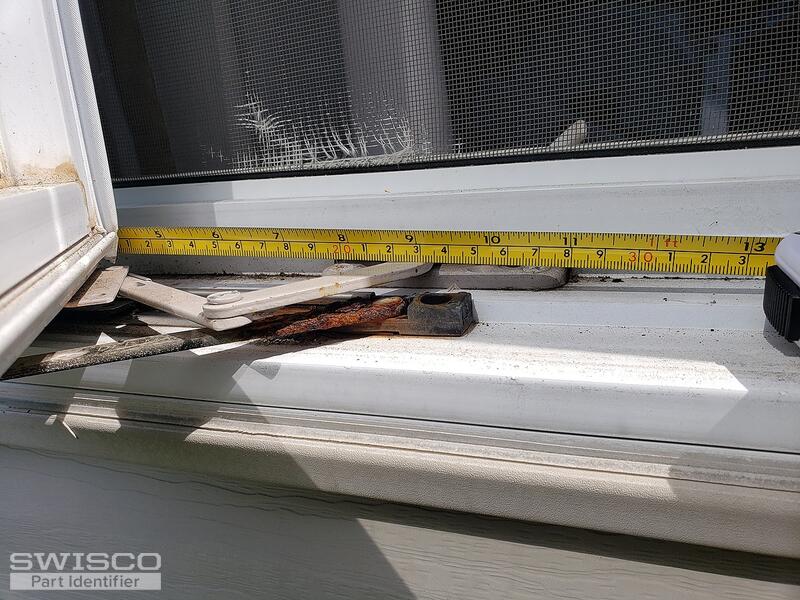

Attached are some photos from my vinyl Silver Line windows. I am looking for the correct parts to replace these with. I need the bottom hinge and a latch. I also included a picture of the one window as a reference. Please let me know if you need any additional information.

Thanks
Andy
4 user uploaded images
4 Replies
Tom
Tom from SWISCO
SWISCO
Expert

Hello, Andy. Starting with the hinge, my recommendation is the 36-004-10. This is very similar in design to your original, though it will probably still be a little different. As long as you replace the top and bottom at the same time then you should be okay. You'll also note that these are stainless steel, so corrosion will be less of an issue going forward.

As for the latch, can you tell me the distance between the two installation holes, center-to-center? That will allow me to confirm the best match in our inventory.

Quick Learner from NJ
Tom,

Thank you for the fast response. The latch mounting holes are 2 1/4" center to center.

Andy
Tom
Tom from SWISCO
SWISCO
Expert

Perfect, thanks! With that in mind I would say that our best lock for you is our 90-180. Look it over and see what you think.

Dimensions for 90-180
Dimensions for 90-180
