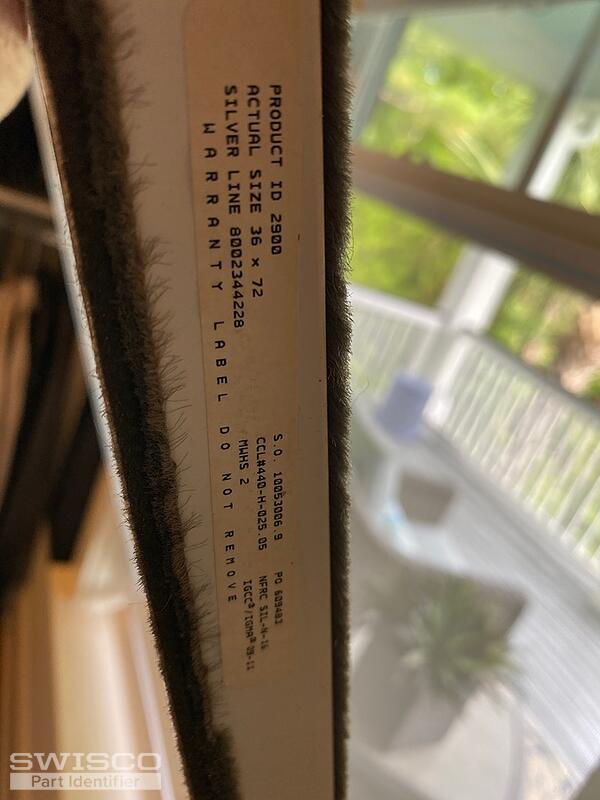

Silver line 2900 series

A contractor from South Carolina says:
June 7, 2021

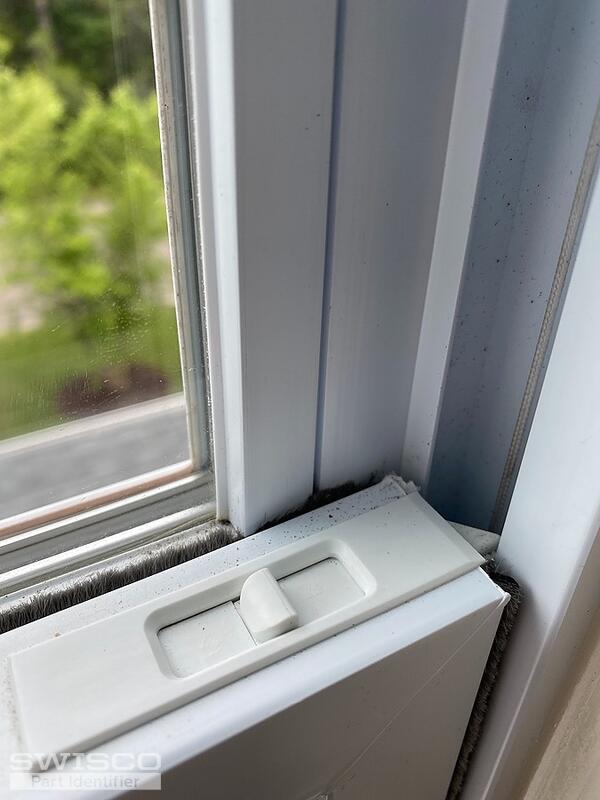

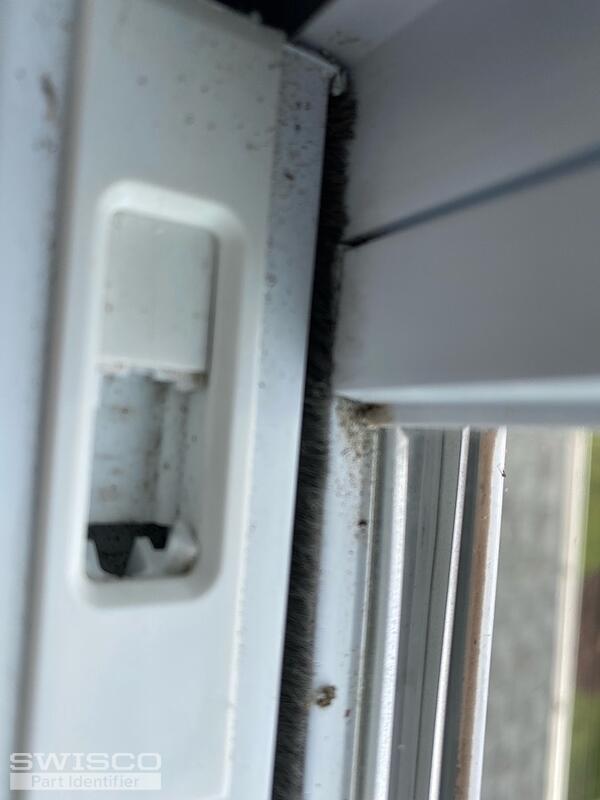

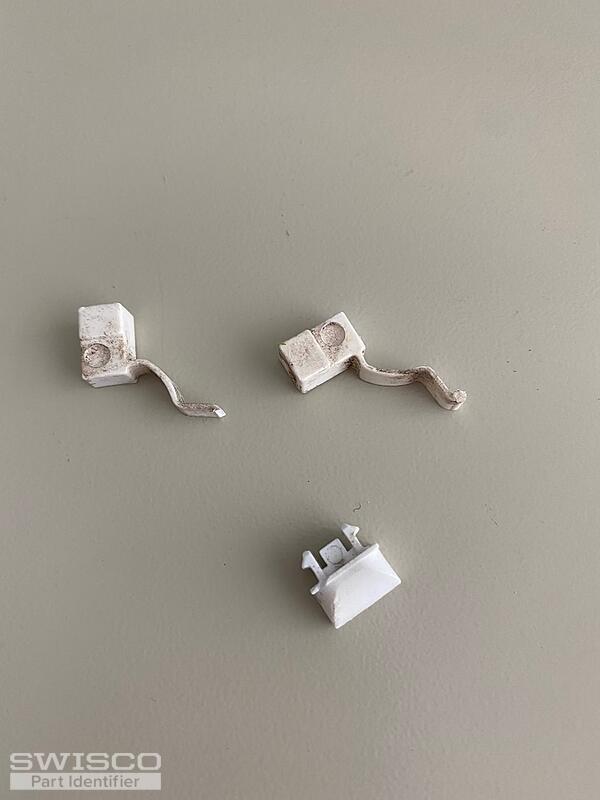

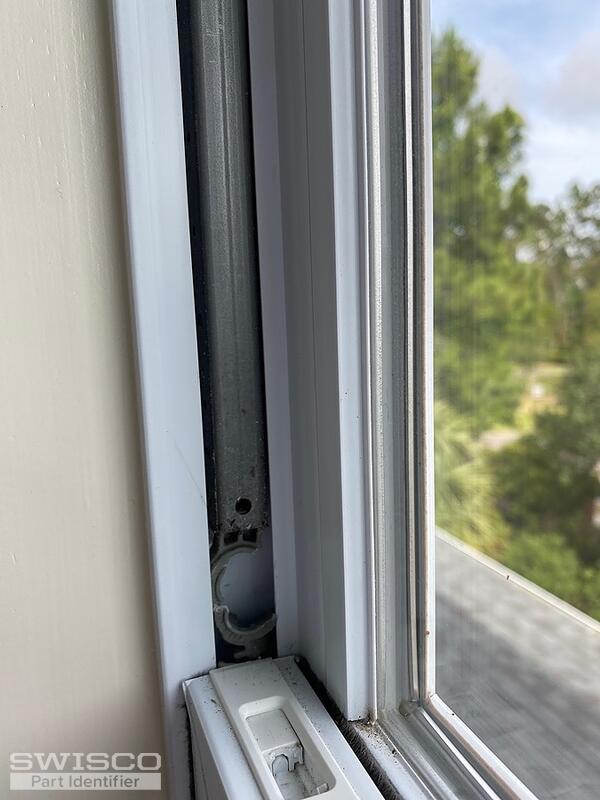

I need the end of the counter balance, the tilt latch and not sure where the other pieces came from. Thanks
Thumbnail of the uploaded file named D1AC72D9-5796-4CEC-9615-9F03D106D426.jpeg
Thumbnail of the uploaded file named E612CB0B-3838-410F-A268-A276948C1048.jpeg
Thumbnail of the uploaded file named 34502EDC-50BE-4DE8-93CF-BEC1BC2634D9.jpeg
Thumbnail of the uploaded file named D04AEC4B-2C44-40A8-9F6F-C115DB05A3EB.jpeg
Thumbnail of the uploaded file named 23E1B115-7162-453C-935E-40C7F30ACB62.jpeg
Profile picture of Bob
Bob from SWISCO responded:
June 10, 2021

For the tilt latches, see if the dimensions of our 26-243 and 26-244 match up. For the T-Lock Shoe, remove an undamaged one and see if it matches either our 1-1/4" wide 15-195, the 1-1/4" 15-195B with the open cam (you can see through the back of it), or the 1" wide 15-194. I believe the debris you show is from the damaged shoe. See the videos on this page for removal and replacement details.
Tilt Window Latch, Right Hand
Tilt Window Latch, Right Hand
26-244
$2.70
Tilt Window Latch, Left Hand
Tilt Window Latch, Left Hand
26-243
$2.70
1-1/4" T-Lock Balance Shoe, Closed Cam
1-1/4" T-Lock Balance Shoe, Closed Cam
15-195
$1.92
1-1/4" T-Lock Balance Shoe, Open Cam
1-1/4" T-Lock Balance Shoe, Open Cam
15-195B
$1.97
1" T-Lock Balance Shoe, Closed Cam
1" T-Lock Balance Shoe, Closed Cam
15-194
$2.05
