Silver line by Anderson window pivit (balance bar) bar housing

Quick Learner from Chatham,NY

Sep 27, 2021 4:23 pm

This is the id I got off the windows. I need the housing (plastic) that goes into window bot sash. Its about 3/4 ' sq. with slot for 2 1/2 " bar

Wayne

1 user uploaded image

11 Replies

Emily from SWISCO

Oct 1, 2021 11:31 am

Hi, Wayne.

Take a look at our 26-083 pivot bar and see if our dimensions match up to yours.

Detail of 26-083

Quick Learner from Chatham,NY

Oct 1, 2021 12:42 pm

Yes, that's the bar. I need the plastic housing, that the bar goes into.that is within the side bottom shash

Emily from SWISCO

Oct 4, 2021 9:18 am

Can you upload a picture of the housing you're looking for?

Quick Learner from Chatham,NY

Oct 4, 2021 11:04 am

No, the plastic tab broke and is inside sash, but it's about 3/4" sq. and about 3" long with a notch out for the bar to side into.

Emily from SWISCO

Oct 5, 2021 8:29 am

I'm afraid I can't make an ID without seeing the housing, but take a look at some of the pivot bar housings we carry here to see if any match your original hardware.

Quick Learner from Chatham,NY

Oct 5, 2021 10:37 am

I got the window off. The housing is for bot left. I have pic of where housing and bar go, a pic of right housing with bar. I hope this helps.

3 user uploaded images

Emily from SWISCO

Oct 6, 2021 9:44 am

Unfortunately, I still can't tell what you have while the housing is still in the window. However, you can see some of the housing hardware that is compatible with the 26-083 pivot bar where it says Related Item(s) on the side of the page. Look them over and see if any match your original hardware.

Quick Learner from Chatham,NY

Oct 12, 2021 11:26 am

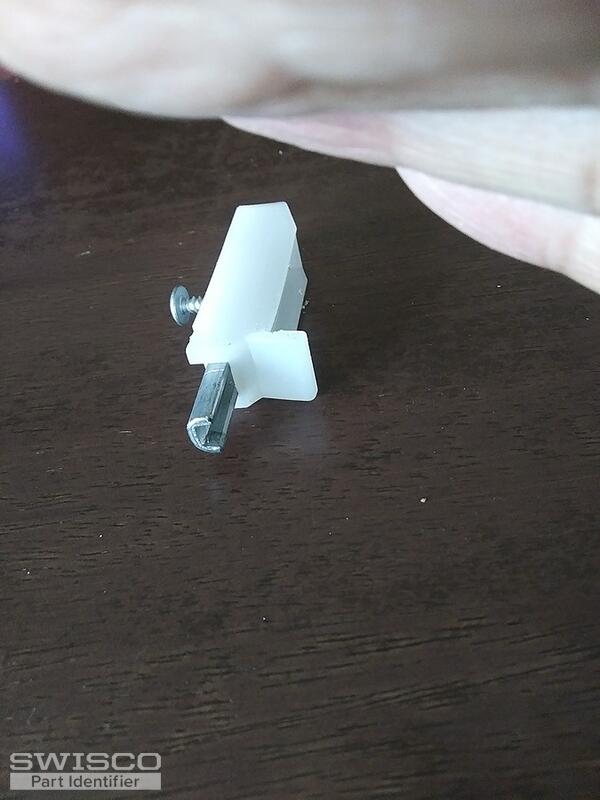

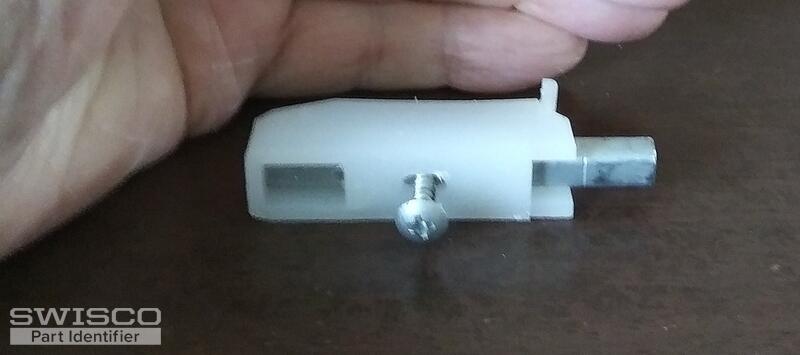

Hi I took bottom balance bar assembly apart with plastic housing. I need the plastic housing. This shown is the right bottom. I need for left. It looks like left and right are same.
Will this help I'd part needed?? What is part num?

2 user uploaded images

Emily from SWISCO

Oct 13, 2021 8:36 am

Thanks for the additional pictures! I don't recognize this pivot housing at first glance but I'm going to have one of our senior experts take a look and see if they could recommend a replacement for you. We'll reach out as soon as more information is available.

Thank you!

Paul from SWISCO

Oct 13, 2021 11:21 am

For your Silverline Series 1200 window, take a look at our 26-382S pivot bar case and see what you think.
