Silver line jalosie window parts

Question

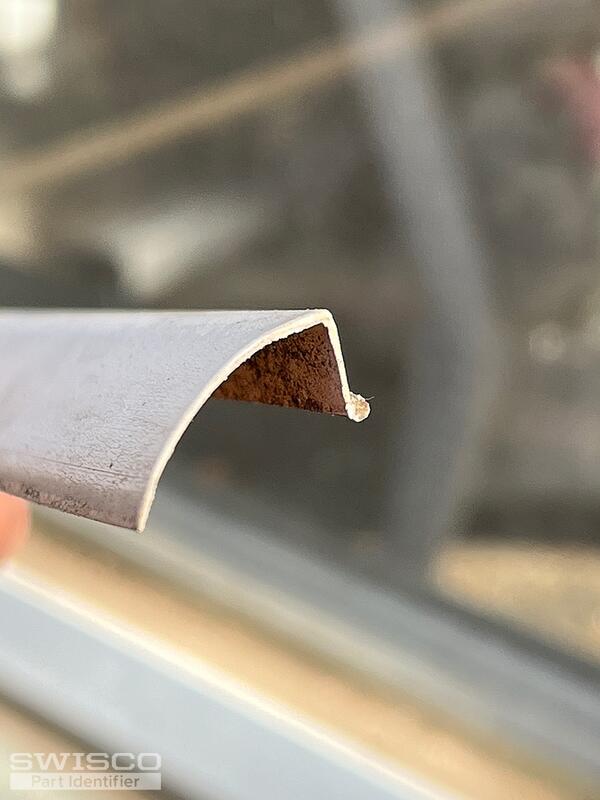

I'm looking for the specialized screw that goes into the mechanism as well as the plastic bushing also I need the snap in Window glazing caps I think I can find the screen retainers but if you have those ones, I could use those as well

Casey · Accepted Answer

Hello,

Unforutnately, we do not carry the awning crank fastener you're looking for separately but we do offer a few replacement operators that use a 10-24 threaded bushing. See the 39-025 and 39-432. I can't be sure if either of these operators match yours while it's still installed but review the specifications below compared to yours. In addition the the dimensions, the placement of the bottom mounting holes is also important.

Dimensions for 39-025

View of the offset of 39-025

Dimensions for 39-432

Alternate view of 39-432

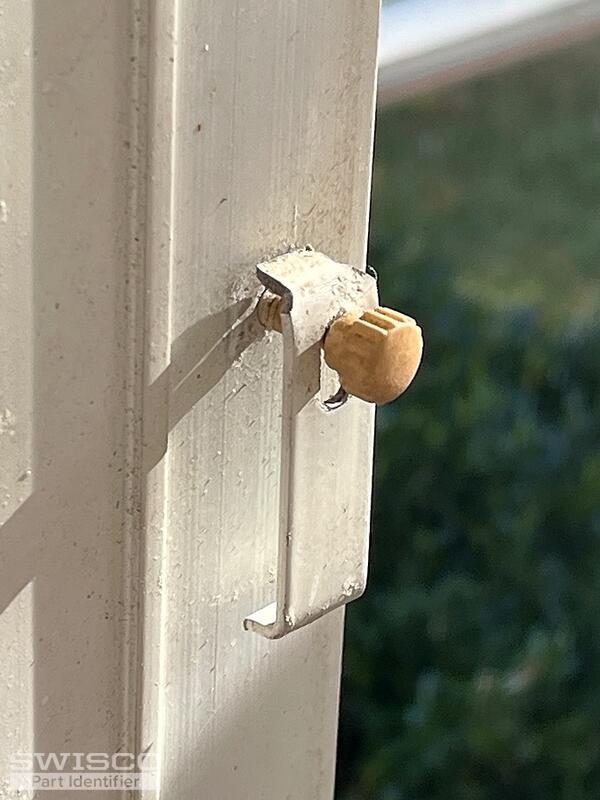

As for the clip, take a look at the 70-080 and 70-112 thumb screw.

Dimensions for 70-080

I'm not sure if we carry an exact match for your glazing bead but we offer a few similar options, which we've related on this page for you to review. Take a look and compare the end profile and dimensions to yours. Thanks for posting.

Profile view 55-006-6

Profile view of 55-204
